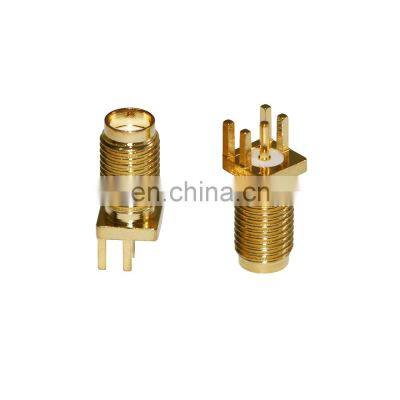

Board to board SMA connector C1 C2 C3
Product Description
Product DescriptionBoard to board SMA connector C1 C2 C3Specifications1.Body:Brass/Gold Plated 2.Insulator: PTFE
3.Impedance:50 ohm
4.Frequency Range:0-18G Board to board SMA connector we can supply all kinds of RF coaxial connectors liking SMA , SMB, MMCX, MCX, BNC, TNC, UHF, HFL, IPEX and so on.we are of factory price .we welcome OEM /ODM clients.
| Model | FT-Connector-117P | |
| Major Technical Characteristics | ||
| Type | SMA-KWE-117P | |
| Impedance | 50Ω | |
| Frequency Range | DC~12.4GHz(Semi-Rigid Cable DC-18GHz) | |
| Center conductor retention force | ≥0.28 N | |
| Insertion Loss | ≤0.15dB/6GHz | |
| Voltage Standing Wave Ratio | Straight Flexible Cable ≤1.10+0.02f Semi-Rigid Cable≤1.07+0.018f | |
| Right angle Flexible Cable ≤1.20+0.03f Semi-Rigid Cable≤1.17+0.02f | ||
| Durability(mating) | ≥500(cycles) | |
| Cable | PCB | |
| Material & Plating | ||
| Body | Brass | Gold plated |
| Pin contact | Brass | Gold plated |
| Socket contact | Beryllium-copper Customized) | Gold plated |
| Resilient contact | Beryllium-copper | Gold plated |
| Insulator | PTFE | |
| Crimp ferrule | Copper alloy | Nickel or gold plated |
| O-ring sealing | 6146 silicone rubber | |
SMA type are with 4 kinds type usually, for example :
SMA male is inside screw with plug center,
SMA female is outside screw with hole center,
RP SMA male is inside screw with hole center,
RP SMA female is outside screw with plug center.
