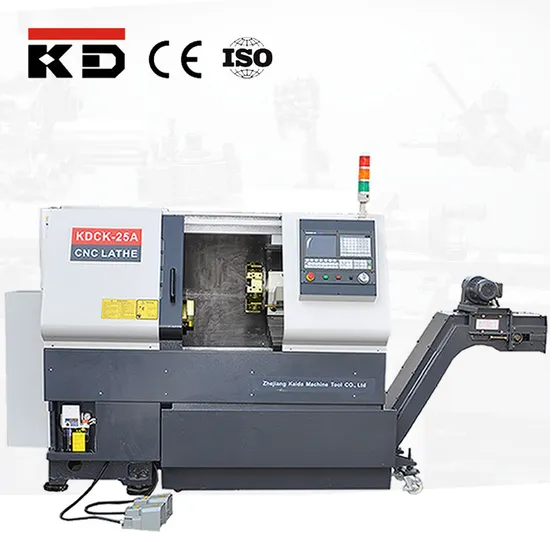

CNC Machine Tools of Horizontal Lathe Price with CNC
| US$22,366.00-25,808.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KDCK-25H
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max Swing Over Bed
500mm
Max Turning Diameter for Disc Parts
280mm
Max Turning Diameter for Axle Parts
250mm
Max Turning Length
400mm
Spindle Bore
63mm
Spindle Nose
A2-6
Live Turret
12-Station German Sauter Live Turret
Live Turret Motor
2.2/3.7kw
Tapper of Tailstock Sleeve
Mt4
Main Motor
7.5/11kw
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
410 Sets/Year
Product Description
CNC Machine Tools of Horizontal Lathe Price with CNC Product Specifications| MODELS | KDCK-25H |
| CAPACITY | |
| Max. swing over bed | Ф500mm |
| Max. cutting diameter for disc parts | Ф280mm |
| Max. cutting diameter for axle parts | Ф250mm |
| Max. length of workpiece | 400mm |
| TRAVEL | |
| Max.cross travel(X) | 180mm |
| Max.longitudinal travel(Z) | 450mm |
| Y axis | +/-30mm |
| FEED | |
| Rapid feed for axis X | 12m/min |
| Rapid feed for axis Z | 20m/min |
| SPINDLE | |
| Max.speed of spindle | 4000rpm |
| Spindle nose | A2-6 |
| Spindle bore | Ф63mm |
| Spindle motor power | 7.5/11kw |
| Hydraulic chuck | 8″ |
| TOOL POST | |
| Tool number | 12 |
| Live tool serve motor power | 2.2/3.7kw |
| Max speed of live tool | 2000rpm |
| Outside diameter of cutting tool shank | 20×20mm |
| Inner dia.of cutting tool shank | Ф25mm |
| TAILSTOCK | |
| Tailstock sleeve dia. | Ф80mm |
| Tailstock sleeve travel | 115mm |
| Taper hole of tailstock quill | M.T.No.4 |
| OTHERS | |
| Repeatability | ≤0.006mm |
| Surface roughness | ≤Ra0.8μm(Nonferrous) ≤Ra1.6μm(Steel part) |
| Min.input | 0.001mm |
| Bed structure | 30° slant bed (two pieces of bed stand) |
| Overall dimensions(L×W×H) | 1950×1650×1680mm |
| Net weight | 3400kg |
