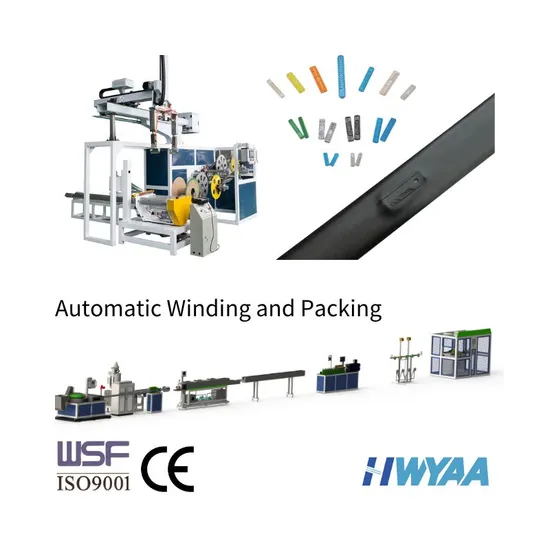

Hwyaa Full Automatic Inlaid Flat Drip Irrigation Pipe Tape Production Line 16-20 mm Flat Emitter Extruder Machine

Product Description

Product Description

PE extruder flat drip tape machine of China factory with fully automatic system

This flat dripper irrigation tape production line is our new generation of high-speed thin-wall drip irrigation tape production line. It's used to produce flat type drip irrigation tapes, which are widely used to grow field crops (such as cotton), fruits, vegetables, trees, flowers and more.
Product Parameters

No	Items	Specifications
1	Tape Diameter	Φ16mm
2	Tape Wall Thickness	0.15-0.4mm
3	Single Screw Extruder A	SJ-90/36
4	Single Screw Extruder B	SJ-25/25
5	Design production Speed	320m/min (200/300mm spacing distance)
6	Central Line Height	1000mm
7	Dripper Identifying Speed	500 pcs/min
8	Dripper Spacing	100mm-1000mm
9	Punching Speed	2000 pcs/min
10	Punching Method	Mechanical punching
11	Tape Roll Length	500m-2500m
12	Total Installed Power	135Kw
13	Max Extruding Capacity	240Kg
14	Size of the Line (L×W×H)	25m*2m*3m
15	Total Line Weight	About 6000kg

Components

No.	Name	Specification model	Quantity
1	Dripper screening device	1.5w	1 set
2	Dripper conveyor	750w	1 set
3	Extruder A	SJ-90/36	1 set
4	Extruder B	SJ-25/25	1 set
6	Die mould	Φ16	1set
7	Vacuum Calibrator	4.0m	1set
8	Cooling water tank	3m	1set
9	Industrial chiller	20P	1set
10	Tractor	2.5kw	2sets
11	Punching device	2000pcs/min	1set
12	Double station automantic cutting winding packaging changing roll machine	320m/min	1set
13	Electrical control system	Siemens Control System	1set
14	Inspector ( with Alarm function)	Video identification system	1 set

Flat emitters conveyor

Items	Specification
Dripper identify	Photoelectric probe
Spacing Set Range	100mm-1000mm
Feeding device motor	0.55kw
Dripper select motor	1.5kw Frequency Control
Transport motor	0.75Kw servo motor Siemens
Dripper transport speed	2000 pcs/min

Extruder and pipe extruding nose

Item	Specification
Screw	90mm
	36/1
	100r/min
	38CrMoAla
	FIVE STAR
	950Hv
Barrel	6 heating zones
	38CrMoAla
	FIVE STAR
	940Hv
Gear Box	20CrMnTi
	Forging,carburizing,quenching,gear grinding
	HRC58-62
Power (Brand: Italian phase)	90Kw
	30Kw
	6X0.24Kw
Capacity	240Kg/h
Feeding machine	300Kg/h
	4.8kw
Filter change	Hydraulic filter
Co-extruder Die Head	40Cr
	right-angle
	250mm
	1650w

Vacuum calibrator

Items	Specifications
Size of Tank	4000mm
Material for Sizing Adjustment	copper alloy
Sizing Method	vacuum
Tank Movement Method	Manual
Dripper Sticking	Rubber wheel pressure
Drive motor	400w servo motor Siemens
Vacuum pump	1.5kw
Water pump	0.75kw
shaping box material	Stainless steel

Water cooling tank

Item	Specification
Tank Material	Stainless steel
Tank Size	3000mm
Cooling Method	Water immersion
Water removal device	High pressure air drying
Water pump	0.75kw

Industrial chiller

model	RX-20AD
Refrigerating output	60kw
Total power	18.8kw

6.Haul-off Unit

Items	Specification
Max. Traction speed	300m/min
Drive Motor Power	2.5Kw servo motor
Haul-off Roller Pattern	Roller
Brands	Panasonic

7. Punching machine

Items	Specification
Punch way	Mechanical track punching
speed	2000 pcs
triggered	the wheeled trigger
Punch space	100-1000mm
Punch motor	1.0w servo motor
Control method	PLC Siemens

Double station automantic cutting/winding/packaging/changing roll machine

Items	Specification
Winder Style	Double station automatic winding
Winding speed	300m/min
Drive Motor Power	2x2.0Kw AC servo motor
Roll Change method	Automatic roll change
Roll-changing motor	370w Three-phase asynchronous motor add Worm wheel and worm gear reducer
Cable way	Ball screw line
Cable motor	750w servo motor
Tension control	Automatic control of tension
Meter	Electronic meter, automatic fixed-length roll cut off
Control method	PLC Siemens
Automatic unloading	1set
Maximum lateral travel	2000mm
Maximum vertical travel	1500mm
Maximum longitudinal itinerary	1100mm
Horizontal control motor	400w AC servo motor
Vertical control motor	2.0kwAC servo motor
Longitudinal control motor	750w AC servo motor
baler	1set
Pack the motor	370w
rotating machine	1.5kw
product size	¢125x¢500x290
Product weight	20KG
Equipment size	3900x2000x2950
