Factory Price Grade1 Grade2 Grade5 Titanium Bar, Tube, Sheet, Wire

Product Description

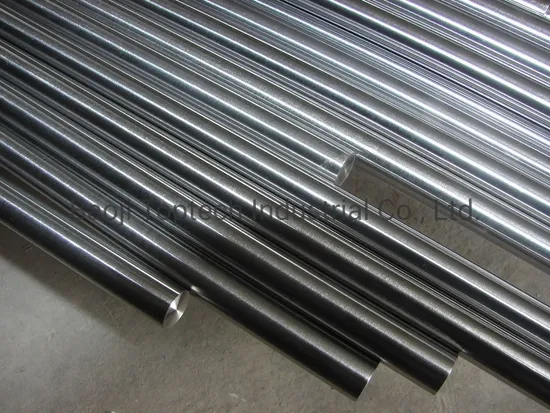

Titanium bar/ Titanium and Titanium alloy rod
Standard: ASTM, AMS, GB/T
Specifications :
Grade:Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr11,Gr12,Gr16,Gr17,Gr23
Size: dia1.0-dia350mm (+1/-1mm)*4000mm
OD:2mm-219mm
WT:0.3mm-15.24mm
L:with in 18Meters
Standard:ASTM B337,ASTM B338,ASTM B861
Surface Treatment: polished or according to customer's requirement.
Applications:
Titanium and Titanium alloy can be used in aircraft engines and parts, chemical equipment parts
(reactors, pipes, heat exchangers and valves, etc.). Petroleum Industry, Nuclear Power Industry,
Marine Industry, Electrolytic Industry etc.
Titanium pipe and Titanium tube
Grade : Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr11,Gr12,Gr16,Gr17,Gr23
Standard: ASTM B337,ASTM B338,ASTM B861
Specifications :
1.Dimensions
A).Seamless titanium tube range:
OD:2.0mm-219mm
WT:0.3mm-120mm
Length: <18000mm
Material:Gr1, Gr2, Gr3, Gr4 Gr5, Gr7, Gr9, Gr11, Gr12, Gr16,Gr17, Gr23
B).Welded titanium tube range:
OD:6mm-219mm
WT:0.5mm-10mm
Length:<18000mm
Material: Gr1,Gr2,Gr3,Gr5,Gr9

Name	Size(MM)	Grade
Seamless Tubes	Ф(3~114)×(0.2~6.0)×L	Gr1,Gr2,Gr3,Gr4,Gr5, Gr7,Gr11,Gr23etc
Welded Tubes	Ф(10~40)×(0.5~5.0)×L
Extruded Tubes	Ф(25~210)×(6.0~30)×L

2. Applications:
Heat exchanger,condensor . environmental protection equipment,cooling pipe ,titanium heat pipe
Electroplating equipment ,ring ,precision instruments.
Titanium and Titanium alloy plate & sheet
Standard: ASTM, AMS, GB/T
Specifications
Grade: Gr.1, Gr.2, Gr.3, Gr.4, Gr.5,Gr7,Gr9,Gr12 etc.
Product Thickness(mm) Width(mm) Length(mm)
Titanium Plate 5-8 2000 max 4000 max
Titanium Plate 8-100 3000 max 6000 max
Processing: Cold-Rolled,Hot-Rolled
Surface: Shot blasted and pickled
Applications:
Titanium sheets and plates are found in a variety of applications such as heat exchangers,
various types of corrosive-resistant equipment, textile machinery and sporting equipment.
Titanium wire
Standard: ASTM B348,ASTM F136
Grade:Gr1, Gr2, Gr3, Gr5, Gr7, Gr9, Gr12 ect.
Dia:0.2-3.0mm
MPa:280-440
Straight wire or wire in coil
Dimension Tolerance:

Diameter	0.1-0.3mm	0.3-0.8mm	0.8-2.0mm	2.0-6.0mm
Tolerance	+/- 0.025	+/-0.04	+/-0.05	+/-0.10
Length	200-500mm	500-1000mm	1000-2000mm	&2000mm
Tolerance	+/-1.0	+/-1.5	+/-2.0	+/-2.5

Processing: Cold-Rolled,Hot-Rolled
Surface: Shot blasted and pickled
Applications:
A.welding materials,medical materials,industrial,chemical,electrolysis and so on.
B.Spring,Welding, Medical, Aerospace
Titanium and Titanium foil
1.Specifications
Product Titanium and Titanium alloy foil
Size
Thickness: 0.02mm (0.0008"), Width: 30mm-100mm (1.18"-3.94"), Length: ≥500mm (19.7");
Thickness: 0.03mm-0.09mm (0.0012"-0.0035"), Width: 50mm-200mm (0.197"-7.87"), Length: ≥500mm (19.7")
Material Gr.1, Gr.2, Gr5, etc.
Standard ASTM B265
2.Applications
Titanium and Titanium alloy strips and foils can be used in electronics, chemicals, watches,
glasses, jewelry, sporting goods, machinery, plating equipment, environmental equipment,
golf and precision machining industries, etc..
Titanium Blind Flange and Titanium Weld Neck Flange
Standard ASME/ANSI B16.5, DIN 2630-2633, BS etc.
Grade Titanium Commercially Pure and Alloys (GR 1, GR 2, GR 5, GR 7, GR 9, GR 12 )
Type: PL, SO, WN, IF, SW, TH, PJ/RJ, BL, BL(S)
Size: DN 15 ~ DN 2500
Pressure: PN 2.5 ~ PN 160 / Class 150 ~ Class 2500
Surface: RF, M, FM, T, G, RJ etc.
Applications:
Water works, Shipbuilding industry, Petrochemical and Gas industry, Power industry,
Valve industry and General pipes connecting projects etc.
Titanium Disc

Name	Size(MM)	Grade	Specification
Titanium Disc	φ50-1000 Height:35-110	TA1,TA2, TA3,TA4, TC4, TC11, TC15etc	GB/T,GJB, ASTM,AMS

Titanium screws

Name	Size(mm)			Grade	Specification
	Bolt	Nut	Washer
Titanium screws	(M1.6-M20)* Length(3-160)mm	M3-M30	M4-M16	Gr1,Gr2, Gr5,Gr7, Gr9,Gr12, Gr23	DIN912,DIN7991, DIN933,ASTM B381, ASTM B348,AMS4928, F136,F67,JIS,etc

Titanium Forged Block
Standard ASTM, AMS, ISO, JIS, ANSI, GB/T
Grade Titanium Commercially Pure and Alloys
Type Flanges, Dicks, Rings, Blocks, Targets and other customized sizes.
Condition Annealed
Surface Mechining or Polished
Application Chemical Industry, Petroleum Industry, Nuclear Power Industry, Marine Industry, Electrolytic Industry etc.
2. Applications
Titanium and Titanium alloy can be used in aircraft engines and parts, chemical equipment parts
(reactors, pipes, heat exchangers and valves, etc.). Petroleum Industry, Nuclear Power Industry,
Marine Industry, Electrolytic Industry etc.
