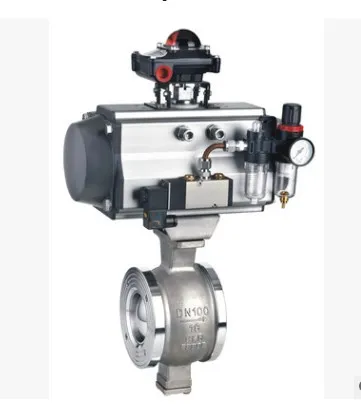

Pneumatic Actuated Wafer V Port Stainless Steel CF8 CF8m Wcb Ball Valve

Product Description

Pneumatic Actuated Wafer V Port Stainless Steel CF8 CF8M WCB Ball Valve Summary:
Q670F pneumatic ball valve is a pneumatic ball valve series of products. It is a new generation of ultra-thin flange distance ball valve developed by our company by introducing Italian technology and carrying out domestic design. The core channel is v-shaped. Pneumatic sandwich ball valve has the characteristics of compact structure, small volume and light weight.

Specification of Pneumatic Wafer V-type Ball Valve
Model	ZTVQ670F(P,H,V )
Nominal Diameter	DN25-500mm
Pressure	1.6;2.5;4.0;6.4MPa; 150Lb;300Lb;600Lb
Structure	V-type Cut Fixed Ball Valve
Design Standard	ANSI; JIS; GB; DIN
Body Material	WCB; CF8; CF8M; CF3; CF3M
Seat Material	PTFE; PPL; H.Y
Action Manner	Double acting; Single acting
Control Type	On-off Type; Adjust type
Accessories	Limit Switch; Solenoid Valve; Positioner; F.R.L

Technique Norm
Design Basis	GB Standard	ANSI Standard
Design Standard	GB/12237	ANSI B16.34
Connection Flange Size	GB/9113 JB/T79	ANSI B16.5
Test & Inspection	JB/T9092	API 598

The Drawing of Pneumatic Wafer V-type Ball Valve

Parts List
NO	Parts Name	Quality	Material
1	Body	1	WCB; CF8; CF8M; CF3; CF3M
2	Spool	1	CF8,CF8M
3	After steam	1	SUS316
4	Cylindrical pin	2	SUS316
5	Before steam	1	SUS316
6	Spline	1	SUS316
7	Flat key	1	SUS304
8	After gland	1	CF8,CF8M
9	O-ring	1	Viton
10	Adjust pad	1	PTFE
11	Self-lubricating bearings	1	Composite material
12	Self-lubricating bearings	1	Composite material
13	Packing	2	PTFE
14	Gland	1	CF8M
15	O-ring	1	VitonPTFE,
16	Seal block	1	PTFE,SUS304,SUS316
17	Seal block spring	1	SUS316
18	Sealing lid	1	SUS304,SUS316
19	Inner Hexagon screw	4	SUS304
20	Hexagon screw	1	SUS304
21	Double-headed screw	1	SUS304
22	Hexagon nut	1	SUS304

The Dimension of Pneumatic Wafer V-type Ball Valve
