3kw Wood CNC Router Engraving Cutting Machine for Furniture

Product Description

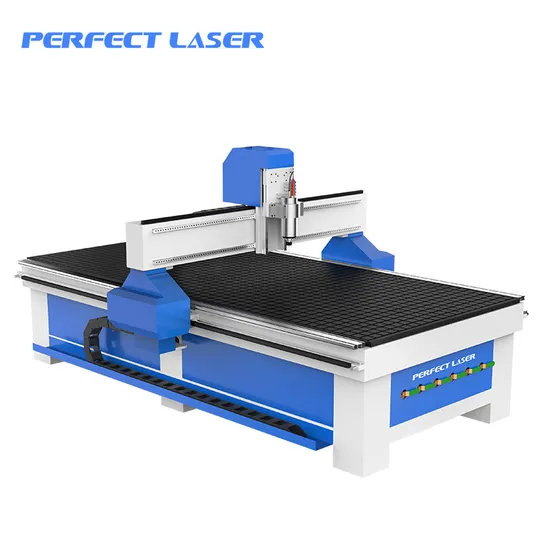

3KW Wood CNC Router Engraving Cutting Machine For Furniture
(Model:PEM-1218 1325 1212)
Contact:Candy
Product Description
Our CNC Wood Engraving Machine is mainly applied in wood working industry, furniture industry for furniture decoration, wooden door and window frame processing, and wooden handcraft making industry, manufacturing sewing machine table and cabinet panels, etc. Our CNC Wood Engraving Machine are not exclusively applicable for wood engraving, wood cutting ;but also can be sued for engraving on Acrylic Engraving, Acrylic Cutting, PVC Engraving, PVC Cutting ,Stone Engraving, Stone Cutting, Metal Engraving, Metal Cutting, etc.
Product Features
1) X, Y, Z axis use imported ball bearing guide screws. It's precise and fast. Even the letters of 1mm can be clearly discernible. The small-power machine uses large-power main axis, it's an ideal product for
Manufacturing labels, construction models and moulds in batches.
2) High speed calculation It uses DSP64 contouring control system and FPGA technology which can
Continually and smoothly run the three axes with high speed. It has the ability of calculation of 5000 vector/s.
3) Steady data transmission. The data transmission uses the technology of ISA/IP DNC/IP straight association, which can associate the machine without interruption, and it has no limitation of the amount of the document.
4) Double-nut guide screw. It uses Germany-imported high-precision ball bearing guide screw which can
Eliminate cracks automatically. Coordinated with the imported shaft coupling, it can realize precise control. It
Uses straight line guide rail (cylinder or square), which can ensure the working life.
5) Large internal memory capacity of 32M is able to store 30 processing files simultaneously and open and process any of them.
6) Connection with the computer via USB interface enables data to be transmitted in a second, supports hot plug and play, no driver installation required(Window98/NT/2000/XP)
Sample & Application
Our Advertising CNC Router Series are widely used in the field of Advertising board, Label design, Acrylic cutting, model of the multi material decoration products. Which is also widely applied in engraving and cutting on all kinds of metal and nonmetal materials, such as wood engraving, wood cutting, MDF Engraving, MDF Cutting, PVC plastic Engraving, PVC plastic Cutting, plexiglass engraving, plexiglass cutting, acrylic engraving, acrylic cutting, organic glass engraving, organic glass, etc.
Technical Data

Product Name	CNC Router for Advertising
Model	PEM-6090W	PEM-1212	PEM-1215	PEM-1218	PEM-1325
Working Area	600*900mm	1200*1200mm	1200*1500mm	1200*1800mm	1300*2500mm
Table Material	Aluminium Alloy
Maximum Feed Height	80mm
X,Y,Z Guideway Rails Type	Round Shape Guide Rail, Rod Transmission
Max Engraving Speed	4,000-7,000mm/min
Resolution Ratio	0.002mm
Repetition Accuracy	±0.02mm
Spindle Power	1.5KW (Optional 2.2kw, 3kw,4.5kw)
Spindle Rotating Speed	6000 - 24,000rpm
Spindle Cooling	Water Cooling
Drive Motor System	Step Motor and Step Driver
Interface	PCI Port or USB Port
Memory Buffer (Flash)	128MB
Engraving Command	G code, u00, mmg, PLT, HPG
Command Language System	English Version, Windows 98/2000/XP Operation System
Operational Software	Original Type3 Software, ArtCam Software or Wentai Software
Command Language System	English Version, Windows 98/2000/XP Operation System
Software Compatibility	Support CAD/CAM Software, PLT format, Corel Draw, Auto CAD
Working Temperature	0-45ºC
Relative Humidity	30% - 75%

Machine Details

Company Profile
We, Perfect Laser, as a 21 years history industrial manufacture in CNC equipment field, with CE/ISO certification, we aims to make high quality products, and also our products have been exported to more than 180 different countries and areas.
