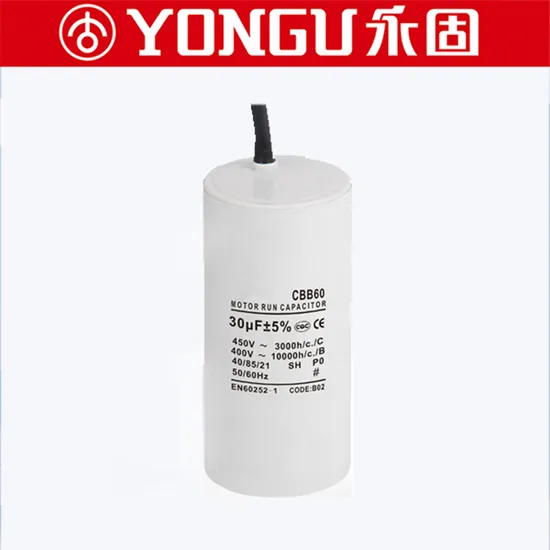

Cbb60 Motor Run Capacitor 400~450V 30UF for Single -Phase Motor

Product Description

Product Characteristics:
With a small loss, anti-moist, excellent electrical performance, reliability, large capacity, long life and good self-healing properties.
Product Applications:
It is widely used as the start-up and running capacitor that is mainly for water pump, cleaning machine, washing machine, and single -phase motor.
General Specifications

ltem	Technical specification
Operating temperature	-40ºC~+70ºC
Capacitance range	2uF~100 u F
Capacitance tolerance	J±5%),K(±10%)
Rated voltage	250V,400V,45OV,630V
Withxland voltage	AC≥1.75Un 2S(lmax≤1.3InA)
Withxland & box voltage	AC≥2000V 2s
Dissipation factor	≤0.004(1KHz,20°ºC);≤0.002(10OHz,20°ºC)
Insulation resistance	≥300os
Weather category	40/70/21

Company Introduction:
Founded in 1985. Its products cover power transmission and distribution material products such as power fittings, cable accessories, insulators, copper and aluminum materials, and also transmission and distribution equipment products such as circuit breakers on primary and secondary fusion columns, disconnectors, fuses, and arresters. it is a power transmission and distribution system service provider integrating R&D, manufacturing, sales and services. The company is shortlisted as a Class A supplier of State Grid, China Southern Power Grid, and Inner Mongolia Electric Power.
Yongu Electric Power Fittings Laboratory is a nationally accredited laboratory by CNAS. The scope of accreditation involves nearly 80 national standards and 110 testing items, covering nine categories of power fittings. The laboratory has a total area of more than 3,500 square meters, and has introduced German Spectrometer, FEI scanning electron microscope, X-ray digital imaging detection system, optical image detection system, 600kN horizontal tensile testing machine, 300kN vertical tensile testing machine, microcomputer digital display automatic sample injection analyzer, 4000A temperature rise thermal cycle test equipment, 50kV AC high voltage testing machine, metallographic microscope and handheld XRF analyzer, Fourier transform infrared spectrometer and a series of advanced detection equipment.
