MBC Factory Price OEM Customized Cooking Equipment Type jacket kettle

Product Description

MBC Factory Price OEM Customized Cooking Equipment Type jacket kettle
Product introduction
Type jacket kettle
Electricty /Steam/Gas /Electromagetic Heating Mixing Pot
Fixed type tilting type Stir type Steam heating jacket cooking kettle
This Type jacket kettle has the advantages of large heating area, high thermal efficiency, fast heating, uniform heating and easy control of heating temperature. Widely used in candy, cakes, drinks, juice, jam, candied fruit, dairy products and canned food processing and brewing, wine, pharmaceutical and chemical industry for daily use, as the material, disinfection, heating, hot melting, precooking, preparation, stewing, steaming, and enrichment. At the same time, can also be applied to large hotels, restaurants, hotels, guest houses, restaurants, industrial and mining enterprises, organs of troops, the college canteen, as cook porridge and soup, boiled dumplings, cooking and stews. Over the years, the majority of users agree that this product is a good food equipment to improve product quality, shorten working hours and improve working conditions.
This product reasonable design, compact structure, easy installation, simple operation, flexible use, safe and reliable, easy to maintenance etc, was deeply loved by the masses of users and praise.
Product Parameters
This Type jacket kettle is custom-made and can be customized according to your different products,processing requirements, different outputs and other factors. In order to provide you with better solution details and accurate prices, you can tell us your needs and we will Customized made it for you and provide you with professional equipment that is best suitable for you. (All pictures are for reference only)

model		MBC-100L	MBC-200L	MBC-300L	MBC-400L	MBC-500L	MBC-600L
Heating source		Saturated steam	Saturated steam	Saturated steam	Saturated steam	Saturated steam	Saturated steam
Discharging way		Bottom discharge	Bottom discharge	Bottom discharge	Bottom discharge	Bottom discharge	Bottom discharge
Design temperature	The tank	100ºC	100ºC	100ºC	100ºC	100ºC	100ºC
	jacketed	147ºC	147ºC	147ºC	147ºC	147ºC	147ºC
Working temperature	The tank	100ºC	100ºC	100ºC	100ºC	100ºC	100ºC
	jacketed	121ºC	121ºC	121ºC	121ºC	121ºC	121ºC
Design pressure	The tank	no pressure	no pressure	no pressure	no pressure	no pressure	no pressure
	jacketed	0.44Mpa	0.44Mpa	0.44Mpa	0.44Mpa	0.44Mpa	0.44Mpa
Working pressure		0.28Mpa	0.28Mpa	0.28Mpa	0.28Mpa	0.28Mpa	0.28Mpa
Working medium	The tank	Food/water	Food/water	Food/water	Food/water	Food/water	Food/water
	jacketed	Saturated steam	Saturated steam	Saturated steam	Saturated steam	Saturated steam	Saturated steam
Motor power		1.5KW 220 V/60Hz/3f	1.5KW 220 V/60Hz/3f	1.5KW 220 V/60Hz/3f	1.5KW 220 V/60Hz/3f	2.2KW 220 V/60Hz/3f	2.2KW220 V/60Hz/3f
material		SUS30408	SUS30408	SUS30408	SUS30408	SUS30408	SUS30408
size		Ø0.85m×h1.55m	Ø0.95m×h1.55m	Ø1.05m×h 1.6m	Ø1.15m×h1.65m	Ø1.25m×h 1.7m	Ø1.4m×h1.75m
weight		≈150kg	≈175kg	≈195kg	≈215kg	≈250kg	≈330kg

Detailed Photos
Installation and commissioning:
1, unpacking, check the products and accessories and packing list whether conform to, in the process of transportation, there is no damage to products and parts, if there are any loss and damage, please do not hesitate to contact with the company.
2. product performance testing before leaving the factory, all parts relative position switch has been installed, the user generally only for inspection, shall not be taken apart, so as not to replace the improper set-up, affect the product performance.
3. The equipment is not required to be fixed, as long as it is placed on the flat concrete surface.
4. After the equipment is in place, please assemble the spare parts according to the "installation diagram" and check whether the equipment is complete and flexible.
5. When the piping connection is on site, it should be kept vertical and not horizontal, so as to avoid leakage when the connection is loose.
6. The power supply shall be in accordance with the requirements of the mixing structure of the equipment, and the enclosure of the equipment must have a good grounding to prevent leakage of electricity.
tilting type Steam heating jacket cooking kettle Fixed type Steam heating jacket cooking kettle
tilting type Stir type Steam heating jacket cooking kettle
Top Lid / Cover
Made of food-grade stainless steel SUS30408
The scraper is: four fluorine plates
High temperature resistance 350 ºC
Thickness :20mm;

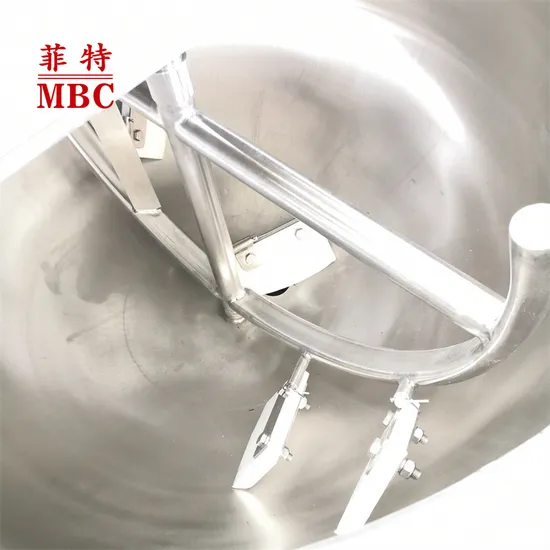

The stirring device is stainless steel SUS304 thick wall tube welding, and is connected to a self -made connector to facilitate disassembly for cleaning and cleaning
Inner pot:Ø1000×5mm,
outer pot:Ø1100×3mm;
Surface polishing achieve : Ra≤0.4μm
T5mm- internal pot;
T3mm- external pot; 3mm- insulation pot;
Tank shape: hemispheroid type;
MBC Use a trapezoidal material to avoid flowing from the side
SUS304 - 75*45*2
Equipment support

Real-time display of pressure of interlayer pan jacket, pressure gauge range 0-0.6Mpa
Each kettle is equipped with 4 ground feet, which can be adjusted height
Drive system
Worm wheel: Model 4,
70, 98 teeth, spin to the left;
worm: Model 4, the number of heads 1 head, the spin to the leftGood hydrophobicity, ensure that the distilled water in the heating process of the equipment is quickly discharged out of the pot, so as not to affect the heating efficiency
The steam inlet adopts flange ball valve with good sealing and easy operation and maintenance
Manometer bend
Stainless steel SUS304
Both sets of limit devices are used to improve the safety performance of the equipment

Company Profile
ZHUCHENG MBC INDUSTRIAL & TRADING CO.,LTD Is the professional and original equipment manufacture for the Food processing equipment in the global food processing industry .
We can provide you the very good quality food fruits vegetable processing machines and production line . We are the professional and original equipment manufacture with rich experience for more than 15 years since 2008 year and we have self-managed import and export rights with many old customers from more than 130 countries . More than 60% of buyers repeatedly choose our factory and we provide full customization services . We have a complete and standardized quality control process including the quality assurance and traceability identification of raw materials and inspects 100% of finished products.
Our products are very hot sale and exported well to many foreign counties and created the good and long term cooperation relationships with them , they are mainly located in USA,Canada,India,England,Russia,Italy,Spain,France,Algeria,Middle East,Australia,Singapore,Cuba,Vietnam,Malaysia,Indonesia,Chile,SouthAfrica,Norway,Uzbekistan,Algeria,Pakistan,SaudiArabia,Venezuela,Egypt,Afghanistan,Azerbaijan,Israel,Nigeria,Philippines,SriLanka,Sudan,Thailand,Kenya,Poland,Korea,Pakistan,Mongolia,Rwanda,Cameroon,Iraq,Jordan,Mauritius,Panama etc from Asia, Europe, Africa ,Latin America,South America, North America .
Warm welcome you to visit our factory and order machines any time With the ideas of ' Quality first, Honesty, Sincerity,Good service', we will provide you with the perfect quality machines and the professional & lifetime services, thank you so much about your sincerely trust and positively support to us ! Thank you ~ !
One Time Cooperation, Lifelong Forever Service
Warm welcome you to visit our factory and order machines any time With the ideas of ' Quality first, Honesty, Sincerity,Good service', we will provide you with the perfect quality machines and the professional & lifetime services, thank you so much about your sincerely trust and positively support to us ! Thank you ~ !
Every time we meet, there is an unforgettable story ~
The reason why our company is called MBC = Fate, we cherish each fate, cherish the acquaintance with any customer and friends.We will guarantee the perfect quality with lifetime services . Warm welcome to visit us at any time. Looking forward to having a chance to meet & WIN-WIN cooperation together.
Packaging & Shipping
let's talk about our ZHUCHENG MBC complete delivery process:
Before each batch of goods is delivery, we will make a comprehensive container arrangement in advance according to the order quantity and the size, volume and gross weight of each of our food machinery, that is, how many units of goods can be loaded in each container, and where each equipment is installed in the container. All of these are carefully calculated. This way, the calculation is accurate. First, when loading, it can be easily loaded quickly and accurately according to the container arrangement diagram. Then, it is designed in advance to make full use of every bit of space in the container to avoid space waste, which can save and control costs for our customers and friends;
Firstly, all the food machinery we have processed and manufactured will be first inspected by our professional technical inspectors. Professional technical inspection engineers conduct all-round inspections, from a small accessory, screws to welding conditions, welds, welding wires, welds, and the operation of the entire set of equipment. They are all tested by professional technical inspection engineers to ensure our commitment to customers of "quality first";
Secondly, after the relevant details of all food machinery such as equipment and spare parts are inspected, we pack the food equipment. There are two main types of packaging: plastic film packaging, which is mainly for equipment shipped directly in full containers. Plastic film packaging can avoid scratches from dust and small objects, and also saves customers packaging costs and the tediousness of disassembling packaging; one is wooden packaging required by export standards, which is mainly for small equipment and large goods that need to be consolidated.
Then, it is our container loading step, which is also a very important part of the delivery procee . First, check the quality of the container to see if there is any damage or loopholes to avoid rain leakage; then, our professional forklift drivers will deliver the equipment to the door of the container one by one, and then our professional loading workers will move the equipment little by little to the innermost end of the container and arrange them in order. Then it is to fix the equipment, which is a critical step. Please watch our video. Every time ZHUCHENG MBC ships, it uses this special container equipment fixing tool, which is very expensive. Each of our equipment will be reinforced in this way to prevent the container from being damaged by bumps during land and sea transportation.
The last step is to seal the container. After ensuring that everything is OK, our ZHUCHENG MBC factory and Technical Inspection Agency have lead seals to safely seal the container.
During the entire loading process, we have professional inspection agencies to inspect and monitor the loading. Professional staff of Shanghai Xiangstar Technical Inspection Agency come to inspect and monitor the loading, and the equipment is affixed with special tapes and lead seals of the inspection agency.
Well, today we want to share with you the whole set of loading processes, I hope it will be helpful to you, and look forward to your cooperation.
Quality Control
We can provide you the very good quality with very good performance and configuration and perfect functions with professional and intimate services food fruits vegetable meat products processing machines and production line . We are the professional and original equipment manufacture with full customization full aspects customized services rich experience for more than 15 years since 2008 year and we have self-managed import and export rights with many old customers from more than 130 countries all over the world . We have a complete and standardized quality control process including the quality assurance and traceability identification of raw materials and The supplier inspects 100% of finished products. and we have our own R&D engineers team .
FAQ
1. You are the factory ?
Yes , we are ZHUCHENG MBC INDUSTRIAL & TRADING CO.,LTD, and it is the food machine factory and Is the professional and original equipment manufacture for the Type jacket kettle in the global food processing industry .We Focus On Food Processing Equipment,Factory Direct Sales, Processing Customization,Quality Assurance,Service First.
2-What is your main producing food machine products ?
we are specialized in R&D manufacturing for more than 15 years For Food & beverage ( Fruits & Vegetable & Meat ) processing machines and production line, including the potato / corn / cucumber / tomato / date / mushrooms making machine and processing Production line, meat products making machines ,Snacks Food Frying processing machine,food processing jacketed cooking machines, food vacuum enrichment equipment, food & beverage sterilizing machine etc.
3-Which countries have your Type jacket kettle exported to ?
Our Type jacket kettle are very hot sale and exported well to many foreign counties and created the good and long term cooperation relationships with them , they are mainly located in USA,Canada,India,England,Russia,Italy,Spain,France,Algeria,Middle East,Australia,Singapore,Cuba,Vietnam,Malaysia,Indonesia,Chile,South Africa,Norway,Uzbekistan,Algeria,Pakistan,SaudiArabia,Venezuela,Egypt,Afghanistan,Azerbaijan,Israel,Nigeria,Philippines,SriLanka,Sudan,Thailand,Kenya,Poland,Korea,Pakistan,Mongolia,Rwanda,Cameroon,Iraq,Jordan,Mauritius,Panama etc from Asia, Europe, Africa ,Latin America,South America, North America .
4. What is ZhuCheng MBC industrial & Trading CO., ltd. business philosophy?Warm welcome you to visit our factory and order our Type jacket kettle at any time With the ideas of ' Quality first, Honesty, Sincerity,Good service', we will provide you with the perfect quality machines and the professional & lifetime services, thank you so much about your sincerely trust and positively support to us ! Thank you ~ !
Every time we meet, there is an unforgettable story ~ The reason why our company is called MBC = Fate, we cherish each fate, cherish the acquaintance with any customer and friends.We will guarantee the perfect quality with lifetime services . Warm welcome to visit us at any time. Looking forward to having a chance to meet & WIN-WIN cooperation together.
5-What is your after services installations ?
a.) Consultation service before, during, and after sales;
b.) Project planning and design services;
c.) Debugging of equipment until everything is functional;
d.) Training of equipment maintenance and operating personally;
e.) Provide 1 year complete warranty and life-time maintenance service. and the fittings can be replaced to new using the old one.
6-What is your Delivery Time for your Cooking Equipment ?
Some of the food processing machines are in stock at our warehouse, generally we need 3~5 days to change the plugs before the delivery. Regarding to the non-stock products, the lead time ~35 days depends on your requirement on the product.
7-What is your food processing machinery's Packing and delivery ?
Our food processing machines is possible to pack in wooden case or nude pack after wrapping by plastic film.
8- What is your Cooking Equipment Production condition ?
a. Design: They are elaborately designed by our mechanical engineers who are rich of experience in this field. We accept special design according to customers request.
b. Processing and Assembling: Parts processing,assembly,testing are based on standard test.
c. Trial Run: Each machine has to be tested before its delivery.
9-When is your ZhuCheng MBC industrial & Trading CO., ltd. established?
15 years since 2008 . we are the professional and original equipment manufacture for the Food processing equipment in the global food processing industry .
Our company have independent import and export rights,we are specialized in R&D manufacturing for more than 15 years For Food & beverage ( Fruits & Vegetable & Meat ) processing machines and production line, including the potato / corn / cucumber / tomato / date / mushrooms making machine and processing Production line, meat products making machines ,Snacks Food Frying processing machine,food processing jacketed cooking machines, food vacuum enrichment equipment, food & beverage sterilizing machine etc.
10-Can I customize your Cooking Equipment ?
Yes. Please let me know your specific customization requirements and I will get back to you as soon as possible.
