6ka Singi Air Price Overload Protection Electrical MCB Miniature Circuit Breaker

Product Description

Product Description
Key Specification

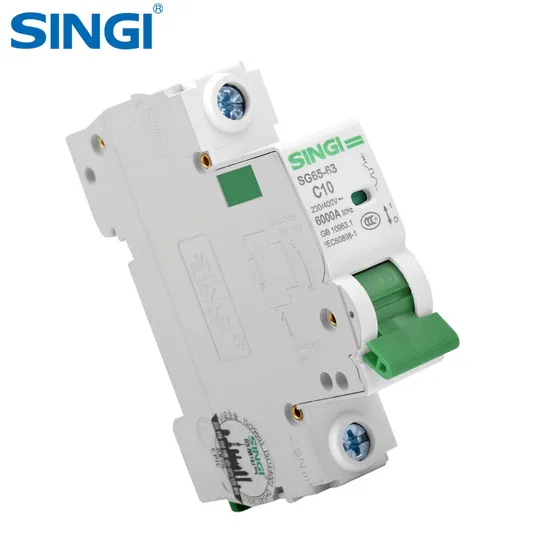

Electric Miniature circuit breaker,MCB
original metal components supplier of CHNT&Delixi
Key Parameters:
· CE/CB/ISO9001/CCC certificates;
· Rated voltage:230/400VAC;
· frequency50/60Hz;
· Rated current:6,10,16,20,25,32,40,50,63A;
· 1/2/3/4poles optional;
· Mechniacal life:10,000times;
· Flame-redardant:PA66 nylon material;
· Protection degree:IP20;
· With over load/short circuit protection;
· Standard:IEC60898;GB10963.1
· Enduring tem.55°C
· Breaking Capacity:6KA;
· Lighting/Motor protection optional
Application
SG65-63 high breaking miniature circuit breaker has the features of structure advanced, performance reliable, breaking capacity high, appearance elegant and its shell and parts are made of material with impact resistance, strong flame-retardant feature.
It is suitable to power system of 50or 60 frequency ,Ue 400V and below, Ui 63A and below.
It is mainly applied at office building, residence, for lighting , power distribution and overload and short circuit protection of equipment. Normally, it also can be used as the not frequent transfer of power system. It conforms to the standards IEC60898and GB10963.1.
Technical Parameters

Rated voltage(V)	Poles	Rated current (A)	Rated short circuit breaking capacity
			Test breaking capacity(KA)	Power factor
230	1	6,10,16,20,25, 32,40,50,63	6	0.75
400	2,3,4		6

Remark:
1.mechanical life:10,000 times(off-on)
2.heat resistance: category 2 (temperature 55°C,relative humidity 95%).
3.wiring is terminal with clamp, cable dia.:25mm2
Current Release Character Diagram

Test current(A)	Rated current(A)	Requested time	Result	Start station	Remark
1.13In	all	t>=1h	Don't trip	Cool
1.45In	All	T<1h	trip	heat	Current ascends the requested value stably in 5s
2.55In	In<=32A	1s<t<60s	trip	Cool	Auxiliary switch closed, power is on
2.55In	In>32A	1s<t<120s	trip	Cool	Auxiliary switch closed, power is on
3In(Bmode)	All	t>=0.1s	Don't trip	Cool	Auxiliary switch closed, power is on
5In(Bmode)	All	T<0.1s	trip	Cool	Auxiliary switch closed, power is on
5In(Cmode)	All	t>=0.1s	Don't trip	Cool	Auxiliary switch closed, power is on
10In(Cmode)	All	T<0.1s	trip	Cool	Auxiliary switch closed, power is on
10(Dmode)	All	t>=0.1s	Don't trip	Cool	Auxiliary switch closed, power is on
14In(Dmode)	All	T<0.1s	trip	Cool	Auxiliary switch closed, power is on
