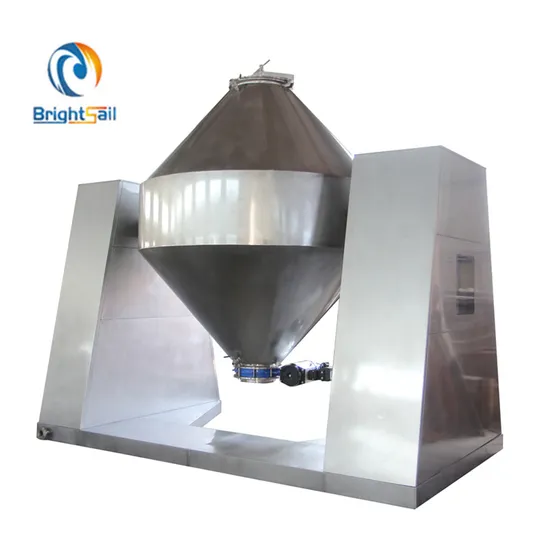

Cone Blender Pharmaceutical Powder Mixing Machine Chemical Powder Mixer

Product Description

Product Description China Pharmaceutical Powder Industrial Flour Mixer Rotary Rotation Double Cone Tumbler Blender Powder Barrel Mixer Machine Product Description BSW pharmaceutical powder mixer machine is widely used in pharmaceutical, nutriceutical, chemical and food industries for mixing dry powder or small granules with good flowability. The solids being mixed can vary in bulk density and in percentage of the total mixture.BSW flour mixer machine is suitable for mixing many kinds of dry powder,such as detergent powder,proteion powder,spice powder,coffee powder...etc.
Product Parameters

TECHNICAL DATA OF BSW double cone milk powder mixer machine
Model	Barrel volume(L)	Max load volume(L)	Motor power (KW)	Overall size (mm)	Weight (KG)
BSW-180	180	90	1.1	1400(L)*800(W)*1850(H)	280
BSW-300	300	180	1.1	1685(L)*800(W)*1850(H)	310
BSW-500	500	300	2.2	1910(L)*800(W)*1940(H)	550
BSW-1000	1000	600	4	2765(L)*1500(W)*2370(H)	810
BSW-1500	1500	900	4	2960(L)*1500(W)*2480(H)	980
BSW-2000	2000	1200	7.5	3386(L)*1900(W)*3560(H)	2150
BSW-2500	2500	1500	7.5	3386(L)*1900(W)*3560(H)	2150
BSW-3000	3000	1800	7.5	4450(L)*2200(W)*3600(H)	2500
BSW-4000	4000	2400	11	4750(L)*2500(W)*3680(H)	3200

BSW double cone mixer machine is most often used for the intimate dry mixing of free flowing solids. The materials are fed into the mixing barrel via quick-open feed port manually or by vacuum feeder. With the rotation of mixing barrel, materials can be completely mixed with high degree of homogeneity.
Detailed Photos 1) Inlet port: raw materials enter the mixer from the inlet port. If you need to feed the material automatically, we will design a new inlet port then the ZKS vacuum feeder can be connected to the mixer. 2) Agitator: Forced agitator can make mixing effect better if your material is a bit sticky or doesn't flow well.
3)Discharge part: The final product can be discharged by discharge valve.The standard is manual discharge valve, and you can also choose pneumatic discharge valve.
Main features of BSW rotary mixer machine: 1) Simple structure, easy in installation and maintenance. 2) High mixing efficiency,free of dead corner and even mixing.
3) Without interior settings inside, the mixer is very easy to clean. 4) Agitator can be equipped to strengthen the mixing effect. Company Profile Our company-Brightsaill Machinery Co., Ltd is focus on the research of powder equipment, such as coffee mixing machine, herb grinder machine, chemical powder mixer machine, pharmacy powder making machine... etc. Our products can be applied in food, medicine, chemical and other industries and had won a good reputation.
After 15 year's development and accumulation, our company has been one of the most influential equipment manufacturers in the industry. And we wish to grow up and develop together with all new and old customers.
