World Famous Compound Action Ht530 1 Ton 1.5ton Diesel Engine Crawler Front Mini Skid Steer Loader

Product Description

diesel engine rubber track hydraulic operate HT530 Skid steer loader:
Features of HT530 Skid steer loader with kubota D1105:
1. The whole vehicle uses hydraulic control, and the walking is controlled by the pilot handle. The closed pump system controls the motor walking, which can realize compound action walking and steering.
2. The lifting arm, bucket, and attachments are powered by a dedicated gear pump and can be operated individually. More types of attachments can be used.
3. The bucket has an automatic leveling function when lifting and lowering.
4. The triangular crawler structure is used when getting off the vehicle, making walking more stable.
5. The rear-mounted fuel tank provides a larger structural space for the entire vehicle. At the same time, the fuel tank can serve as a counterweight for the entire vehicle (the two fuel tanks weigh 60kg when filled with fuel).
6. The foot pedal adopts a shock-absorbing device.
7. Reserve a special pressure measuring point to detect the vehicle pressure at any time.
8. Additional counterweight can be added, with a maximum weight of 35kg
9.Lifting cylinder support
10. Equipped with fire extinguishers and cylindrical portable information boxes
11. The front cover is easy to open and is supported by double rods. It is convenient for maintenance and inspection inside the cabin. An oil cylinder support frame is used during inspection, which has a higher safety factor.
specification of HT530 Skid steer loader with kubota D1105 diesel engine:

Specification Of HT530 Skid steer Loader (kubota diesel engine )
Max working height	2630mm
Max pin height	2090 mm
Max Dumping height	1535 mm
Max Dumping distance	715mm
Max Dumping Angle	38°
Total height	1630 mm
Ground clearance	150 mm
Wheel base
Overall length without bucket	2220 mm
Total width	1050 mm
Bucket width	1150mm
Total length with bucket	2745 mm
overall length without the bucket after folding the pedal.	2100 mm
Engine	kubota D1105
Rated Power (KW)	14KW
Rotating speed (rpm)	2200
Noise (Db)	≤93
Hydraulic System
Pressure (Mpa)	0-17
Flow rate	0-32L
Operating Load	450 Kg
Bucket Capacity	0.2m³
Max Lifting Force	530 Kg
Travel Speed	0-4.5Km/h
Operating Weight	1330 Kg
Oil
Fuel tank	30L
Engine oil	4L
Hydraulic tank	35L

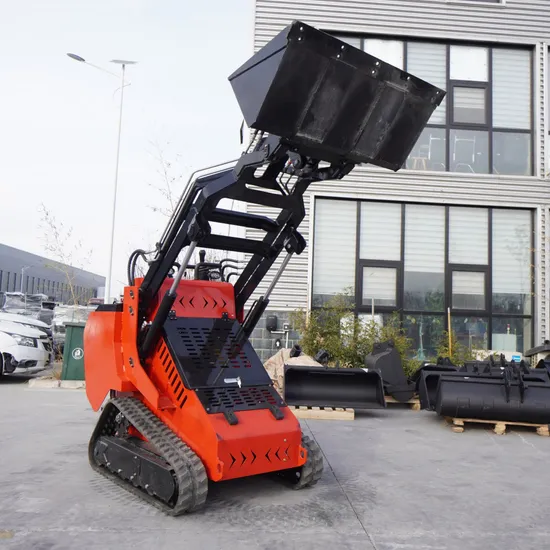

Photos of HT530 Skid steer loader with kubota D1105 diesel engine :our company:
