Cyclone Classifier, Nut Grader, Classifying Cone

Product Description

Cyclone classifier,nut grader,classifying cone ISO9001 & Ce Certificated High Quality Classifier

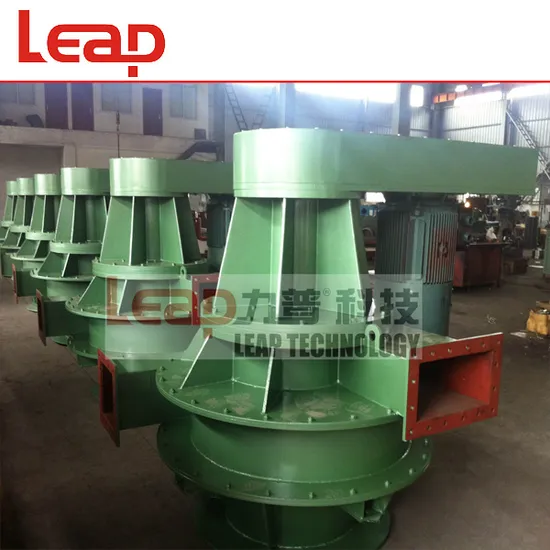

Our Main Products HTG series turbine classifier with secondary air and high-precision turbine, can be the most fine of up to 3 microns thin material, the use of special materials, rotor scalable high hardness materials, widely used in chemical, pharmaceutical, food, and other non-metallic minerals superfine powder processing industry in classifying, in addition to iron, selection and so on.

Technical Parameter

Model	Rotor Diammm	Rotor speedr/min	Rotor powerkw	Air volume	Capacity (kg/h)	comminution sizeum
				(m3/h)
HTG-132	132	1100~11000	4	500	15~300	3~150
HTG-250	250	700~7000	5.5~7.5	2000	30~800
HTG-315	315	500~5000	7.5~11	3200	50~1500
HTG-400	400	450~4500	11~15	5000	100~3000
HTG-500	500	350~3500	22~30	7000	200~4500
HTG-630	630	250~2500	30~37	9000	300~6000
HTG-800	800	150~1500	37~45	12500	400~8000

FLOW CHART


Related Engineering Cases
Technical support
Upon receiving the deposit, we will offer the following technical services:
1. Design for your production line flow and equipment layout, free of charge;
2. Provide foundation drawings of customer-ordered grinding mills and drawings of related parts, etc;
3. Technical parameters of peripheral equipment will be supplied;
4. Free technical suggestions on adjusting of equipment layout and application.
5. Equipment upgrading (customers need to pay the cost);
Quality assurance
1. Strictly conforming to ISO9001-2000 quality management system;
2. Strict control from purchasing inspection, process inspection to final proofing;
3. Established several QC departments to execute quality control regulations;
4. Detailed quality control examples:
(1) Complete files for quality control and quality feedback;
(2) Strict inspection for the components of our grinding mills, to assure products free of damage and avoid rust-eaten and paint peeling off later on.
(3) Only qualified components will be assembled and total equipment must be inspected completely before sale.
After sale service
1. We will send our technician to the site for guiding equipment installation and commissioning.
2. During the installation and commissioning, we offer operator training service.
3. The quality assurance date is one year after commissioning. And after that, we will collect the cost if provide repairing for your equipment.
4. Maintenance for equipment failure caused by improper handling (appropriate cost will be collected).
5. We offer the components with favorable price and perdurable maintenance.
6. If equipment repairing is needed after quality assurance date is expired, we will collect maintenance cost.
