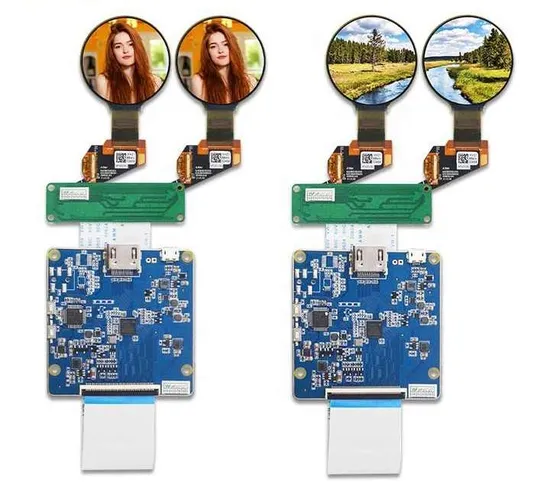

1.39 Inch 400X400 Small Flexible Round OLED Amoled Display Panel Circle Circular Dual LCD Screen with Mipi Interface for Vr

Product Description

Product Description Specification 1.39 inch 400x400 Small flexible round oled amoled display panel Circle Circular Dual LCD screen with MIPI interface for VR

eneral Features
Panel Size	1.39 inch	Panel Type	Color OLED
Resolution	400(H) RGB × 400(V), Circle	Pixel Format	RGB-SBS
Display Area	35.4 mm (Diameter)	Bezel Opening	-
Outline Size	38.6(H)×40.5(V)×0.7(T) mm (Typ.), w/o FPCa	Contrast Ratio	10000:1 (Typ.)
Brightness	300 cd/m2 (Typ.)	Response Time	<4 ms (Typ.)(Tr+Tf)
View Direction	Symmetry	Support Color	16.7M 100% (Typ.)NTSC
Viewing Angle	80/80/80/80 (Min.)(CR≥1600)	Light Source	Self
Frequency	60 Hz	Touch Screen	Optional
Weight	1.5g (Typ.)	Surface	3H Hard coat treating(Glare)
Power Supply	2.8/1.8/4.6/-2.4V (Typ.)(VCI/VDDIO/ELVDD/ELVSS)	Designed For	Smart Watch
Interface Type	MIPI, 24 pin BTB Connector, PFC
Environment	Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C

Frequently Asked Questions
Q1. What is your terms of payment?
A: Paypal, Western Union, T/T in advance ,T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages ,before you pay the balance.
Q2. What is your terms of delivery?
A: If sample & small order is On EXW or Overseas spot, if bulk order(300-500pcs) is FOB SH,SZ,QD.
Q3. How about your delivery time?
A: Generally,. The specific delivery time depends on the items and the quantity of your order.3-5 days for samples or small order, bulk order for 25-30 days after receive payment.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q8:.What is the warranty?
A:We are responsible for replacing a new unit or repairing it within two years if there is any faults of the units. exclude human damage ,Meanwhile, if the problems can be fixed by customer, then we will provide technical service.
