Advanced PVDF Mixing Pre Stirring Tank for Lithium Battery Applications
| US$4,200.00-22,000.00 | 1 Set (MOQ) |
Basic Info.
Application Area
Agricultural Chemicals, Chemical, Daily Chemical, Engineering & Construction, Food, Metallurgy&Mineral, Pharmaceutical, Lithium Battery
Certification
CE, ISO
Condition
New
Cooling Method
Water Cooling
Heating Method
Hot Water Heating
Insulation Material
Water Circulation
Main Material
Stainless Steel
Mixing Capacity
100L
Mixing Drum Shape
Drum
Stirring Type
Spiral
Warranty
1 year
Working
High Speed Mixer
Tank Specification
Internal Diameter φ700mm Depth 400mm
Design Capacity
153L
Efficient Usage Capacity
100L
Mixing Paddle Speed
0-40 Rpm,Vvvf
Disperse Disk Speed
0-1390 Rpm, Vvvf
Mixing Power
1.5kw
Dispersing Power
1.5kw(Two Groups 3kw)
Weight
About 0.6ton
Viscosity
Less Than 100kcps
Applicable Solvent
NMP, Deionized Water, etc
Applicable Additive
SBR,Cnt,etc.
Applicable Powder
PVDF,CMC
Failure Rate
Less Than 2%
Bearing Temperature
Customer Is Required to Provide Circulating Hot an
Customized
Acceptable
Transport Package
Card Board
Specification
1000mm x930mm x 1900 mm(L x W x H)
Trademark
Career
Origin
China
HS Code
8479820090
Production Capacity
15000 Sets/Year
Product Description
Product Description Main Configuration: Equipped with leading-edge technology, our Advanced PVDF Mixing Pre Stirring Tank incorporates high-precision components that guarantee flawless execution and reliability. This cutting-edge configuration is tailored to meet the demanding needs of lithium battery production, setting a new standard in the industry.| No. | Item | Configuration |
| 1 | Equipment appearance | A3 Paint,International warm grey color 1C |
| 2 | Three phase asynchronous VFD | Standard configuration |
| 3 | Motor VVVF | Standard configuration |
| 4 | Lift mechanism | Optional |
| 5 | Upper and lower liquid level detection | Optional |
| Note: If there are special requirements or additional/reduced items (such as adding/reducing pipe openings), please provide additional explanations. The main switch power cord of the equipment inlet box and the hot and cold water pipes connected to the mixing tank interface can be prepared by the customer themselves. | ||
| Usage | This model is mainly suitable for pre mixing solvents such as PVDF and NMP |
| Working principle | The power on signal is given through the control panel, and the mixing head of the premix tank is operated at the set speed. The mixing head of the premix tank is composed of a transmission part connected by three sets of motors on the barrel cover, which drives a set of low-speed mixing blades under the barrel cover and two sets of high-speed dispersers to operate. The mixing paddles and dispersers rotate independently in the mixing tank, and the mixing and power are driven by different motors, which can achieve independent stepless speed regulation. |
| Equipment Composition | Transmission part, sealed container, control system, etc |
| External dimension | 1000mm x930mm x 1900 mm (L x W x H) |
| Tank specification | Internal diameter φ700mm depth 400mm |
| Design capacity | 265L |
| Efficient usage capacity | 200L |
| Mixing paddle speed | 0-40 rpm, VVVF |
| Disperse disk speed | 0-1400 rpm, VVVF |
| Mixing power | 4 KW |
| Dispersing power | 2.2 KW (Two groups 3KW) |
| Weight | About 0.85 ton |
Equipment Capacity: Designed for flexibility, this remarkable stirring tank offers a versatile capacity range, ensuring adaptability to diverse lithium battery production scales. Its robust capacity enables efficient handling of varying volumes with ease.
| Item | Capacity |
| Applicable viscosity | Viscosity ≤100Kcps |
| Applicable solvent | NMP, deionized water, etc |
| Applicable additive | SBR,CNT,etc. |
| Applicable powder | PVDF,CMC |
| Failure rate | ≤2%, |
| Bearing temperature | 7ºC~80ºC,Customer is required to provide circulating hot and cold water |
| Measuring accuracy | ±2ºC,Customer is required to provide circulating hot and cold water |
| Inner barrel pressure resistance | Long term water pressure ≤ 0.3Mpa, no deformation or leakage phenomenon |
| Not applicable | Acetone solvent |
Other Optional Models: Expand your operational capabilities with our curated selection of optional models. Each variant is crafted to complement specific production needs, providing you with the flexibility and customization essential for optimizing your manufacturing process.

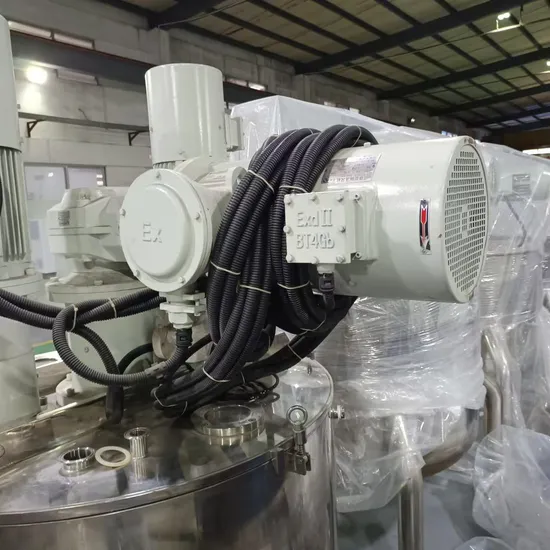

Detailed Photos
After Sales Service
FAQ If I place an order, what is the usual delivery time? -About 45-60 days How do you meet my needs.You need to tell us your production capacity, mixing materials, and the remaining requirements mentioned in particular. We will provide you with a solution based on your needs. At the same time, we will establish a dedicated production technology engineering communication and discussion group to ensure worry free throughout the process. Can you provide on-site installation and debugging services?
Yes, our company can send engineers to your local workshop to guide installation and commissioning, provide training, and accompany production.
