Wi-Fi6 5g CPE with External Antenna, 5g Router with SIM Card Slot, Plug and Play
| US$129.90 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
G710
Transfer Rate
10/100/1000Mbps
Firewall
Firewall
Ports
≤4
Port Structure
Not Modular
Application
Enterprise, SOHO
Network
5g SA and 5g Nsa
Performance
Non Line Speed Router
Architecture
Single Bus Master-slave CPU
SIM Card Slot
Support
WiFi
11ax WiFi6
Data Rate(WiFi)
1800Mbps, Dual Band
5g Data Rate SA
Max 2.4gbps(Dl)/Max 900Mbps(UL)
5g Data Rate Nsa
Max 2.8gbps(Dl)/Max. 550Mbps(UL)
LTE-FDD
Max 1.6gbps(Dl)/Max 200Mbps(UL)
Transport Package
Gift Box
Specification
wifi6 1800Mbps data rate
Trademark
OEM ODM
Origin
China
HS Code
8517623100
Production Capacity
50000PCS/Month
Product Description

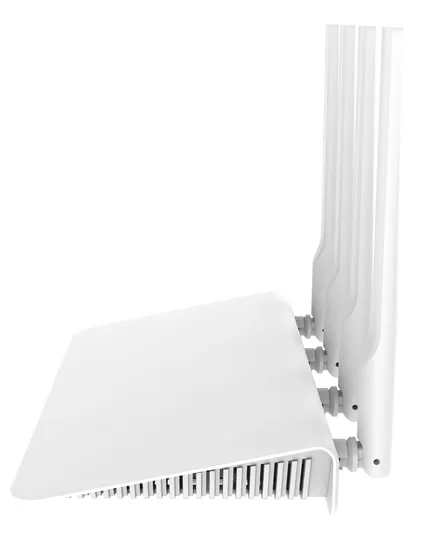

G710 is Wi-Fi6 standard 4G/5G CPE, combined 1800Mbps Wi-Fi6 speed over 2.4GHz(600Mbps) and 5GHz(1200Mbps), with SIM card slot for 4G/5G, equipped Gigabit WAN/LAN port, 5dBi omni high gain antenna, it make more users to access the high speed wireless network, to enjoy the seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.
Support the watchdog, automatically recovery abnormal, keep the device stable and high speed performance.
| Specification: | |
| Model No.: | WR7621-LTE-G710-AX1800 |
| CPU | MT7621DAT+MT7905DN+MT7975 |
| Flash | SPI NOR 16MB |
| Memory | 128MB |
| 2.4G Frequency | 2.4GHz - 2.484GHz |
| 2.4G WIFI Protocol | 802.11 b / g / n /ax |
| 5G Frequency | 5.150GHz~5.850GHz |
| 5G WIFI Protocol | 802.11 a / n / ac / ax |
| Antenna 2 .4G | Omni antenna: 5dBi |
| Antenna 5.8G | Omni antenna: 5dBi |
| Speed | 2.4G: 600Mbps, 5.8G: 1200Mbps |
| Maxi User Access | 100+ |
| 2.4G RF Power | ≤ 20dBm |
| 5.8G RF Power | ≤ 19dBm |
| WAN | 1 * 10/100/1000M WAN Port |
| LAN | 2 * 10/100/1000M LAN Port |
| 4G/5G | M.2 Connector for 4G/5G module(Optional) |
| Reset | Reset button, press 6~10 seconds, device will be restored factory settings. |
| LED Indicator | WAN, LAN, Sys |
| Power Consumption | <9W |
| DC | 12V /1A |
| Size | 197.7mm*144.2mm*32.4mm |
| Working Environment | Working Temperature: -20°C to 40°C; Storage Temperature: -40°C to 70°C, Humidity: 5%~95%(Non-Condensing) |
5G Speed and Band
| Band | |
| Sub-6 NSA band | n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79 |
| Sub-6 SA band | n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79 |
| Bandwidth | 120MHz |
| LTE | DL Cat 19/UL Cat 18 |
| LTE Band | B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/34/38/39/40/41/42/43/46(LAA)/48/66/71 |
| 4G UMTS | B1/2/4/5/8/19 |
| Data Rate | |
| 5G SA Sub-6 | Max 2.4Gbps(DL)/Max 900Mbps(UL) |
| 5G NSA Sub-6 | Max 2.8Gbps(DL)/Max. 550Mbps(UL) |
| LTE-FDD | Max 1.6Gbps(DL)/Max 200Mbps(UL) |
| UMTS/WCDMA | Max 42Mbps(DL)/Max 5.76Mbps(UL) |
