Highsun Machinery Molding Machine Suppliers
| US$18,000.00-565,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HXM128
Structure
Horizontal
Plastic Type
PS, ABS, PP, PE, HDPE, PA, EVA
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Energy Saving
Servo Energy Saving
After Sales Service
Engineers Available to Service Machine
Voltage
380V/50Hz, According to Countries
Showroom Locate
Malaysia, Russia, Turkey, Uzbekistan
Condition
New
Injection Weight
206g PS
Space Between Tie Bar
410X370
Machine Weight
3.2 Ton
Transport Package
Standard Package
Specification
4.41x1.2x1.89
Trademark
Highsun
Origin
China
HS Code
8477101090
Production Capacity
7000 Sets / Year
Packaging & Delivery
Package Size
441.00cm * 120.00cm * 189.00cm
Package Gross Weight
3200.000kg
Product Description

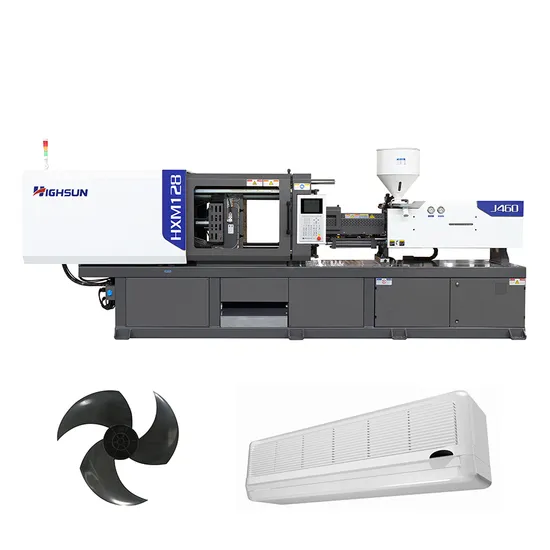

1.Picture| MODEL:HXM128 | |||||
| TECHNICAL PARAMETER TABLE | A | B | C | ||
| INJECTION UNIT | SCREW DIAMETER | mm | 35 | 38 | 42 |
| SCREW L/D RATIO | L/D | 23.8 | 22 | 19.9 | |
| INJECTION CAPACITY IN THEORY | cm3 | 192 | 226 | 277 | |
| INJECTION WEIGHT(PS) | g | 175 | 206 | 252 | |
| oz | 6.1 | 7.2 | 8.8 | ||
| INJECTION PRESSURE | MPa | 208 | 176 | 144 | |
| INJECTION RATE | g/s | 87 | 102 | 126 | |
| PLASTICIZING CAPACITY | g/s | 11 | 13 | 15 | |
| SCREW SPEED | rpm | 265 | |||
| CLAMPING UNIT | CLAMPING FORCE | KN | 1280 | ||
| MOVING MOULD-PLATE STROKE | mm | 350 | |||
| MAX. MOULD HEIGHT | mm | 450 | |||
| MIN. MOULD HEIGHT | mm | 150 | |||
| SPACE BWTWEEN TIE-BARS (W×H) | mm | 410x370 | |||
| HYDRAULIC EJECTOR FORCE | mm | 45 | |||
| HYDRAULIC EJECTOR STROKE | KN | 120 | |||
| EJECTOR NUMBER | n | 5 | |||
| OTHERS | PUMP PRESSURE | MPa | 16 | ||
| MOTOR /DRIVING POWER | KW | 13/15 | |||
| HEATING CAPACITY | KW | 10.5 | |||
| MACHINE DIMENSION (L×W×H) | m | 4.41x1.2x1.89 | |||
| MACHINE WEIGHT | t | 3.2 | |||
| OIL TANK CAPACITY | L | 235 | |||
2.Application
3.Processing,assembling production line
5.Loading containers
6. Customer case
Client in China produce shoe for many famous companies
7.Client in Malaysia
