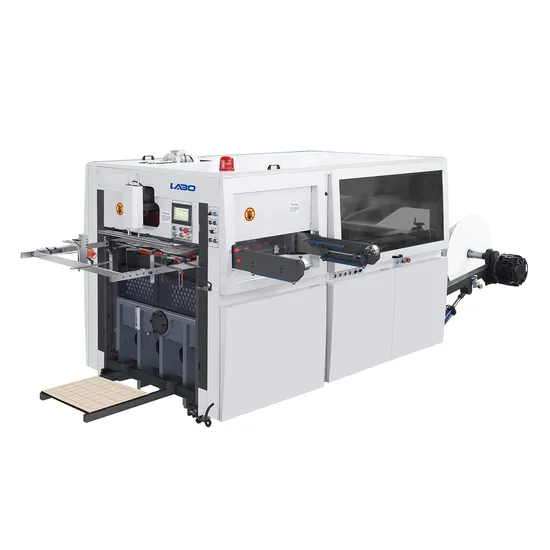

High Speed Paper Cup Paper Bag Paper Box Roll Die Punching Cutting Machine with Embossing

High Speed Paper Cup Paper Bag Paper Box Roll Die Punching Cutting Machine with Embossing

US$35,000.00-38,000.00 1 Set (MOQ)

Basic Info.

Model NO.
LBM
Species
Die Cutting and Creasing Machine
Imprinting Type
Platen
Placing Form of Template
Horizontal
Die Cutting Tool
Metal Mold
Computerized
Computerized
Automatic Grade
Automatic
Application
Paper Packaging Materials
Max Cutting Area
940mmx600mm
Cutting Precision
+-0.20mm
Paper Gram Weight
120-600G/M2
Air Pressure Requirement
0.5MPa
Air Pressure Consumption
0.25m3/Min
Max Cutting Pressure
280t
Weight
7.5t
Max Roller Diameter
1600mm
Total Power
12kw
Dimension
5500X2200X1800mm
Transport Package
Export Wooden Case Packing
Trademark
Labo
Origin
China
HS Code
8441100000
Production Capacity
300PCS/Year

Product Description


Introduction:
High Speed Paper Cup Paper Bag Paper Box Roll Die Punching Cutting Machine with Embossing. It is suitable for creasing, die-cutting various cigarette case, medicine case, envelopes, paper cup, paper bowl, gift bags and various paper products.
It can finish paper embossing, creasing, die-cutting and automatic collection all steps in one time.
It is widely applied in producing cigarette cases, pharmaceutical packaging boxes, envelopes, paper cup fans, paper bowls and various paper products with high precision and stability by die cutting creasing and embossing.
It could automatically complete the full process of die cutting, creasing, embossing and stack collection.
Product Made from Machine:
Main Technical Parameters:

(Medium Speed):
Model LBM-970x550 LBM-1080x640 LBM-1200x640 LBM-1400x780
Max Cutting Area mm 950x510 1050x600 1160x600 1360x740
Cutting Precision mm 0.20 0.20 0.20 0.20
Paper Gram Weight g/ m³ 120-400 120-400 120-400 180-600
Production Capacity times/min 90-140 90-140 90-140 90-120
Air Pressure Requirement Mpa 0.5 0.5 0.5 0.5
Air Pressure
Consumption		 m³/min 0.25 0.25 0.25 0.25
Max Cutting Pressure T 150 150 150 280
Weight T 5.5 6 6.5 8
Max Roller Diameter mm 1600 1600 1600 1600
Total Power kw 12 12 12 14
Dimension mm 4500x2200x1800 4500x2400x1800 4500x2600x2000 6000x3500x2200

(High Speed):
Model LBM-970x550 LBM-1080x640 LBM-1200x640 LBM-1400x780
Max Cutting Area mm 950x520 1050x600 1160x600 1350x740
Cutting Precision mm 0.20 0.20 0.20 0.20
Paper Gram Weight g/ m³ 120-600 120-600 120-600 180-600
Production Capacity times/min 90-140 90-140 90-140 90-120
Air Pressure Requirement Mpa 0.5 0.5 0.5 0.5
Air Pressure Consumption m³/min 0.25 0.25 0.25 0.25
Max Cutting Pressure T 280 280 280 280
Weight T 7.5 8.5 9.5 11
Max Roller Diameter mm 1600 1600 1600 1600
Total Power kw 14 14 14 20
Dimension mm 5500x2300x1800 5500x2500x1800 5500x2800x2000 7000x3500x2200

Machine Detailed Pic for Reference:
Configuration:
Stepper motor Schneider (Germany)
Pressure adjusting motor Taiwan
Servo driver Schneider (Germany)
Color Sensor Sick(Germany)
PLC Schneider (Germany)
Frequency converter Schneider (Germany)
Photoelectric switch Leuze(Germany)
Main air cylinder AirTAC (Taiwan)
Solenoid valve and other parts AirTAC (Taiwan)
Pneumatic clutch China
Main bearings Germany
Main motor FEIDA
