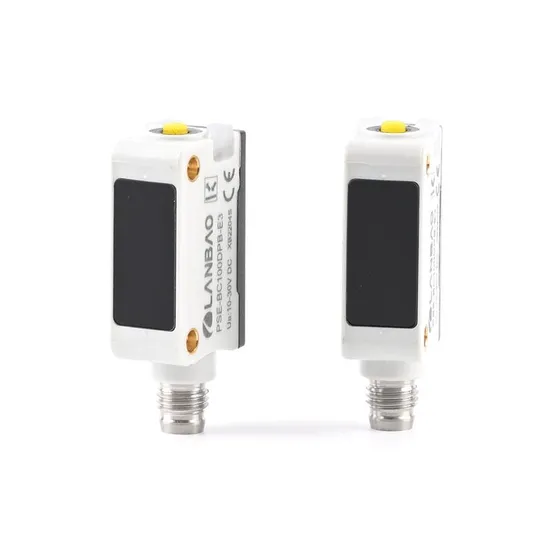

Small Square Diffuse Reflection 30cm PNP 10-30VDC IP67 Photoelectric Sensor

Product Description

Small Square Diffuse reflection 30cm PNP 10-30VDC IP67 Photoelectric Sensor
Features
Universal housing, an ideal replacement for a wide range of sensor types; IP67, suitable for harsh environments; One-click distance setting, accurate and fast; Designed with a red point source for easy calibration.

NPN NO/NC

PSE-BC30DNBR-E3

PNP NO/NC

PSE-BC30DPBR-E3

Detection type	Diffuse reflection
Rated distance [Sn]	30cm
Output	PNP NO/NC
Spot diameter	8mm@30cm
Response time	≤0.5ms
Supply voltage	10...30 VDC
Consumption current	≤25mA
Load current	≤200mA
Hysteresis range	3...20%
Voltage drop	≤1V
Light source	Red light (640nm)
Circuit protection	Short-circuit, overload, reverse polarity and zener protection
Indicator	Green light: power, stable signal (unstable signal flash); Yellow light: output, overload or short circuit (flash)
Anti-ambient light	Anti-sunlight interference ≤ 10,000lux; Incandescent light interference ≤ 3,000lux
Operating temperature	-25ºC...55 ºC
Storage temperature	-25ºC…70 ºC
Protection degree	IP67
Certification	CE
Production standard	EN60947-5-2:2012,IEC60947-5-2:2012
Material	Housing: PC+ABS;Filter: PMMA
Connection	M8 4-pin connector
NO/NC adjustment	Press the button for 5...8s, when the yellow and green light flash synchronously at 2Hz, and lift. Finish state switch.
Distance adjustment	Press the button for 2...5s, when the yellow and green light flash synchronously at 4Hz, and lift to finish the distance setting.
output delay	If the yellow and green light flash asynchronously @8Hz for 3s, setting fails and the product distance goes to the maximum.

Dimension
Wiring diagram
