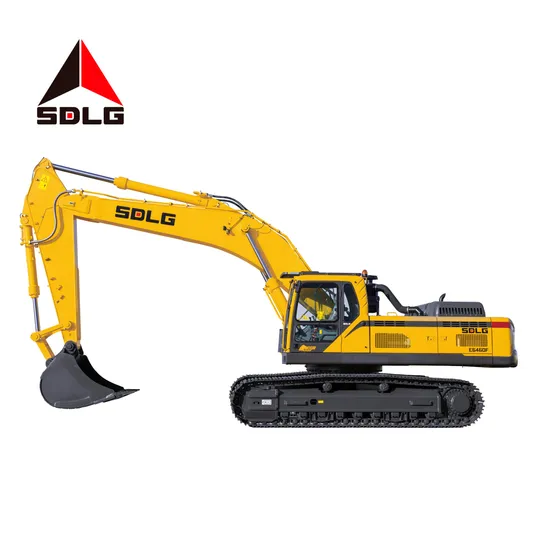

Sdlg E6400f 40t Large Hydraulic Excavator for Large-Scale Mine
| US$52,020.00-60,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
sdlg
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
ISO9001: 2000
Condition
New
Overall Operating Weight
12500kg
Max. Digging Radius
7790mm
Max. Digging Depth
5060mm
Max. Digging Height
7900mm
Engine Brand
Duetz
Engine Type
Inter-Cooled, Four-Cylinder
Engine Power
75kw
Emission Standard
Tier III
Min. Fuel-Consume Ratio
224G/Kw.H
Hydraulic Control Type
Pilot Proportional Control Valve
Hydraulic System Type
Constant Power Negtive Flow Control
Transport Package
RO-RO, Container
Specification
2450*2490*2830mm
Trademark
SDLG
Origin
Linyi, Shandong, China
Production Capacity
50000unit/Year
Product Description
SDLG E6135F 13.5t hydraulic crawler excavator with imported valve
E6135F is a compact & medium-sized excavator with multiple operating conditions and negative flow control. It is equipped
with a high-strength chassis, heavy-duty work units, an optimized matching hydraulic system, features good maneuverability
and high efficiency and is widely used in various working conditions such as municipal construction, landscaping, farmland
water conserancy, construction engineering and pipe laying.
| Overall dimension | |
| Overall width of upper assembly | 2450mm |
| Overall width | 2490mm |
| Overall height | 2830mm |
| Tail swing radius | 2200mm |
| Overall height of engine hood | 2080mm |
| Ground clearance of counterweight | 900mm |
| Wheelbase | 2700mm |
| Crawler length | 3440mm |
| Crawler gauge | 1990mm |
| Crawler pad width | 500mm |
| Min. ground clearance | 430mm |
| Overall length | 7340mm |
| Overall height of boom | 2830mm |
| Overall parameters | |
| Bucket capacity | 0.48m³ |
| Overall operating weight | 12300kg |
| Max. excavation force | 85KN |
| Slew speed | 11r/min |
| Traveling speed (low/high) | 3.0/5.1km/h |
| Average ground pressure | 40.9kPa |
| Max. digging radius | 7790mm |
| Max. digging depth | 5060mm |
| Max. digging height | 7900mm |
| Max. dumping height | 5625mm |
| Min. front slewing radius | 2642mm |
| Engine | |
| Model | BF4M2012 |
| Type | Four-stroke,inter-cooled, supercharged |
| Rated Power@Revolution Speed | 75kW |
| Displacement | 4038mL |
| Cylinder bore × stroke | 101*126mm |
| Emission standard | GB20891-2014 China Phase III |
| Rated fuel consumption | 224g/kw.h |
| Max. torque | 425N.m |
| Traveling/swing system | |
| Qty. of carrier rollers (single side) | 1 |
| Qty. of track rollers (single side) | 6 |
| Traveling brake type | Wet disc brake |
| Swing mode | Hydraulic drive internal tooth single-row ball-bearing |
| Swing brake type | Wet disc brake |
| Hydraulic system | |
| Hydraulic control type | Pilot proportional control valve |
| Hydraulic system type | Single pump load sensing system |
| Max. flow | 220+20 |
| Operating pressure | 330kgf/cm2 |
| Fill capacity | |
| Fuel | 260L |
| Engine oil | 13L |
| Hydraulic oil | 205L |
| Antifreeze | 23L |
