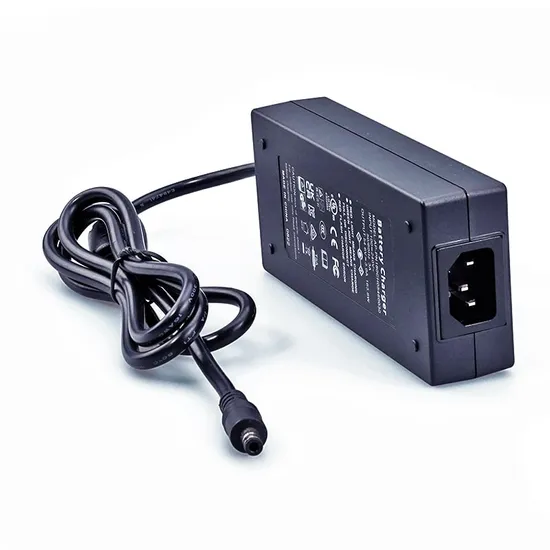

Battery Charger 12s 36V 38.4V 4A 180W Car Charger DC 42V/43.2V/43.8V 4A for LFP LiFePO4 LiFePO 4 Battery Pack Chargers CB60335/CB62368 CCC CE60335/CE62368

Product Description

Quick Detail: Brand Name:QUAWIN
Model Number:QW384-040-F
Use:12S 36V/38.4V Lifepo4 battery pack
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 43.8V
Color:Black
Shell Material:Plastic Shell(ABS+PC)
Input voltage:100-240VAC 47/63Hz
Output voltage:43.8V
Output current:4a(Max)
Output power:175.2W
Shock & Vibration:SAEJ1378 Standard
Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized
Packaging & Delivery : Inner package:Corrugated box,EPE pearl cotton/according to your requirements
Outer packing: export carton
Delivery Detail:sample within 7 work days,25-35 days for bulk order
Specifications:
12S 36V/38.4V Lifepo4 battery pack
Features:
• Full auto 2 satges( CC+CV ) charging process,
• Constant big charging current for faster charging;
• Plastic case with fan-less design
• Fully enclosed fanless design, quiet and durable.
• Efficiency(at 100% load):>=85%
• Operating temperature:-20ºC ~ 45ºC
• Storage temperature:-40ºC ~ 85ºC
• Operating humidity:5%~90%RH
Specification:
• Input: 100-240VAC 47/63Hz
• Output: DC 43.8V
• Charging current: 4a(Max)
• Dimensions (mm): 145.8*64.8*31
• Weight:600±50g(only body)
Safety protections:
• Over current protection
• Over voltage protection
• Short circuit protection
• Anti-revert current protection
LED Indicator:
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
• Charging:Red LED
• Battery Full:Green LED
• Error: RED Light Flashing Call us to know more details datasheet.

Typical Product Model
Model		Input Voltage (V)	Battery Voltage (V)	Charging Voltage (V)	Charging Current (A)
QW128-100-F	LiFePO4	AC 100~264V	12.8(4S)	14.6	10
QW256-060-F			25.6(8S)	29.2	6
QW384-040-F			38.4(12S)	43.8	4
QW512-030-F			51.2(16S)	58.4	3
QW640-025-F			64(20S)	73	2.5
QW768-020-F			76.8(24S)	87.6	2
QW148-100-L	Lithium		14.8(4S)	16.8	10
QW259-060-L			25.9(7S)	29.4	6
QW370-040-L			37(10S)	42	4
QW481-030-L			48.1(13S)	54.6	3
QW629-025-L			62.9(17S)	71.4	2.5
QW740-020-L			74(20S)	84	2
QW120-100-S	Lead Acid		12(1S)	14.7	10
QW240-060-S			24(2S)	29.4	6
QW360-040-S			36(3S)	44.1	4
QW480-030-S			48(4S)	58.8	3
QW600-025-S			60(5S)	73.5	2.5
QW720-020-S			72(6S)	88.2	2
