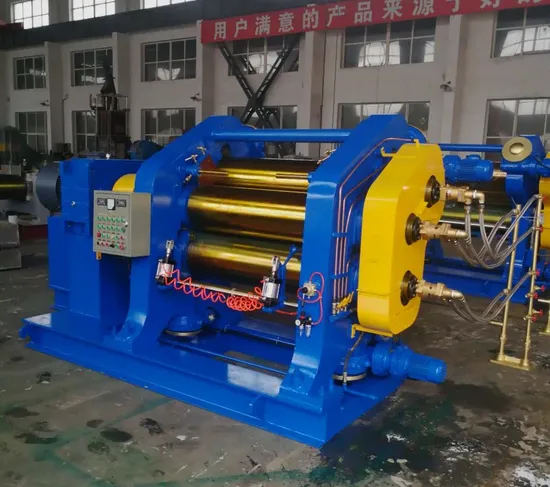

Factory Direct Sale 3-Stack Roll Rubber Calender/ Three Roller Calender Rubber Calendering Machine

Product Description

Factory direct sale 3-stack roll Rubber Calender/ three roller calender rubber calendering machine Product Description Introduction: Rubber calender is the basic equipment in the process of rubber products, it is mainly used to put rubber on fabrics, to rubberize fabrics, or to make rubber sheet. Application:
Rubber calendering machine is mainly used for: Textile (cloth, canvas, etc.) of glue and eraser; steel cord adhesive; rubber compression and pressure type; cord attached to the fit of the isolation film and multilayer film.
Product Parameters

Model	XY-3I(r)230*630	XY-3I(r)252*720	XY-3I(r)300*900	XY-3(r)360*1120
Roll diameter(mm)	230	252	300	360
Working length of rolls(mm)	630	720	900	1120
Working linear speed of middle roll(m/min)	0.8-8	2-15.9	1.7-17	3-20
Speed ratio	1:1.1 1:1.42:1	1:1:1	1:1:1	1:1.1 0.733:1:1 0.733:1:0.733
Adjusting nip range (mm)	0-7	0-10	10	0-10
Min. calendaring thickness(mm)	0.2	0.2	0.2	0.2
Calendaring product width(mm)	500	550	700	920
Driving motor power(kw)	7.5	22	30	45
Overall size(L*W*H) mm	3168*890*1830	3950*1720*1210	4200*1500*1950	6300*1500*2440
weight(ton)	3	5.5	9	14

XY-3(r) 400*1200	XY-3(r) 450*1400	XY-3(r) 550*1500	XY-3(r) 610*1730	XY-3(r) 710*1800	XY-3(r) 710*2130
400	450	550	610	710	710
1200	1400	1500	1730	1800	2130
3-26.39	2.62-26.2	3-30	5.4-54	4-40	3-30
1:1:1 1:1.383:1.383 1:1.383:1	1:1:1 1:1.5:1	1:1:1 1:1.5:1	1:1:1 1:1.4:1	0.5-1	1:1.5:1
0-10	0-10	0-10	0-20	0-30	0-20
0.2	0.2	0.2	0.15	0.2	0.15
1000	1200	1300	1500	1600	1900
55	75	110	160	90kw * 2 110kw*2	185
6300*1500*2440	7320*2200*2900	7550*2400*3800	7010*3950*3730	9950*3050*4040	8500*2670*4770
18	21		42	90	67
