Universal Tensile Testing Machine for High and Low Temperature Tensile Testing Equipment

Product Description

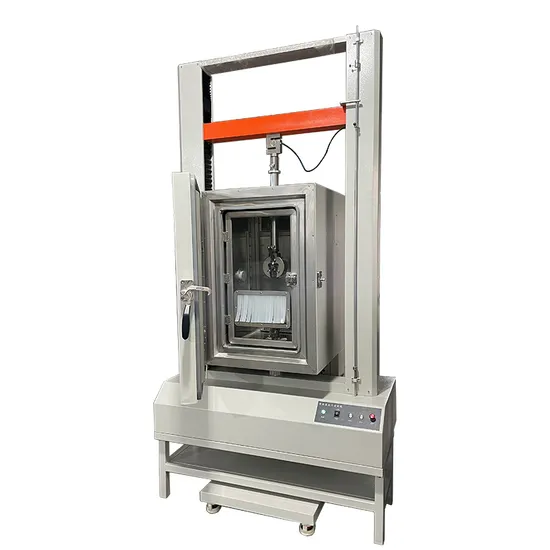

High and low temperature tensile testing machine:
High and low temperature tensile testing machine is a specialized testing equipment used to test the tensile properties of materials under different temperature conditions. It combines a temperature control system and a tensile testing system, which can test the mechanical properties of materials such as tension, compression, and bending in a set low or high temperature environment.
This device typically includes a movable high and low temperature test chamber to provide the required temperature environment, as well as an accurate tensile testing system for applying and measuring tensile force. By controlling the temperature inside the test chamber, various temperature conditions that materials may encounter in practical applications can be simulated, thereby evaluating the performance of materials at different temperatures.Product Parameters

Product model	ZC-TL series
Capacity selection	5~3000KG
Temperature range	-40ºC~+150ºC
Humidity range	20%~98%
Inner and outer box materials	Inner box: SUS304 stainless steel; Outer box: high-strength cold-rolled steel double-sided electrostatic resin high-temperature baking paint or SUS304 stainless steel
Insulation materials	High temperature resistant and high-strength PU polyurethane foam insulation material, ultra-fine glass fiber
Accuracy level	0.5 level/1 level
Load resolution	1/500000 (level 0.5) 1/300000 (level 1)
Test speed	1~500 mm/min
Effective Travel	650 mm/1050 mm/Customized version
Experimental space	120 mm/Customized version
Power unit	kgf ,gf,N,kN,lbf
Stress unit	MPa,kPa,kgf/cm2,lbf/m2 (can be added as needed) Other units
Shutdown method	Upper and lower limit safety settings, specimen breakpoint sensing
Result output	Micro printer or external printer connection
Electrical machinery	Japanese imported servo motor/stepper motor
Transmission rod	High precision ball screw
Source	1ΦAC220V 50/60Hz
Protective devices	Machine leakage protection switch, compressor overload protection, refrigerant high voltage protection, temperature and humidity air incineration protection, water shortage alarm protection, fault alarm system, overload protection, limit protection device bit protection

Standard Compliance
GB/T2423.2-89 High temperature test method Bb
GB2423.1-89 Test A: Low temperature test method 6
IEC60068-2-1 Low temperature test method Ab
GJB150.4-1986 Low temperature test
EIA-364-59 Low temperature test
IEC60068-2-38 Temperature cycling
IEC60068-2-78 Constant Damp Heat
GJB150.4-86 Environmental Test Methods for Military Equipment - Low Temperature Test
GJB150.3-86 Military Equipment Environmental Test Methods High Temperature Test
GB/T2423.34-2005 Temperature and humidity combined cycle test method
GJB150.9-86 Environmental Test Methods for Military Equipment - Damp Heat Test
Applicable Industries
The high and low temperature tensile testing machine is a powerful testing equipment that can simulate the tensile properties of materials under different temperature environments, and has been widely used in multiple industries. These industries include materials research and development, automotive industry, aerospace industry, electronic equipment manufacturing industry, and rubber and plastic industry. By testing the mechanical properties of materials such as tensile strength and elastic modulus at different temperatures, high and low temperature tensile testing machines provide important technical support for product development, manufacturing, and quality control, ensuring the reliability and stability of products in various extreme environments.
