Product Description

1. Description of NMD90 cables:
Application:
NMD90 cables maybe used for both exposed work in dry location work in dry or damp locations.
The maximum allowable conductor temperature is 90°C. The minimum recommended installation temperature is -40°C . For two-conductor cables and -10°C for three-conductor cables (with suitable handling procedures). Material should be Properly stored above 0°C for 24 hours prior to installation. The maximum voltage rating for all intended applications is 300volts .Consult the Canadian Electrical Code 1 for further Information related to applications.
Standard:
CSA-C22.2 No.48 (non-metallic sheathed cable)
Canadian Electrical Code 1
MD90 with protective covering:
1. Conductor: copper 14AWG to 2AWG or aluminium alloy 8000series 12AWG to 2AWG.
2. Insulation: Polyvinyl chloride (PVC)
3. Protective covering: nylon
3. Jacket: PVC, Heat and moisture-resistant, flame retardant FT1.
Voltage: 300V
Number of conductor: 2 parallel laid
3 and 4 round laid
Color of jacket
Typical Application Guide
•White - General Residential Wiring
•Red - 2 Black and Red conductors - 208V-240V Circuits (no neutral)
•Orange - No. 10 AWG General Residential Wiring
•Yellow - No. 12 AWG General Residential Wiring
•Blue - No. 14 AWG - 2 black and white conductors - 120V Arc Fault Circuit Interupter.
cUL Approved file No.:
E487898
Printing on the surface of cable:

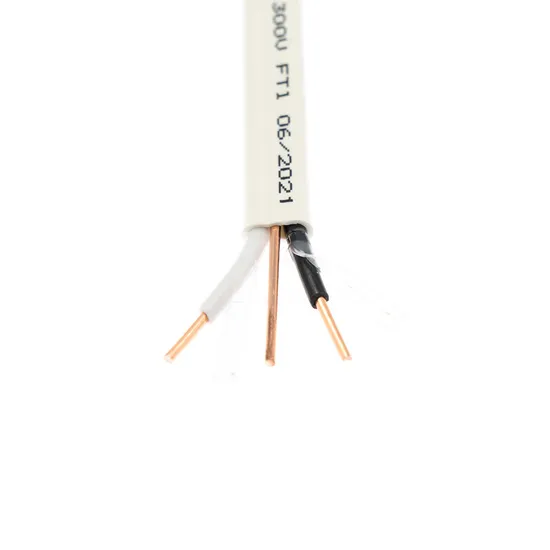

*AWG *COR NMD90 NYLON CABLES HT CABLES FT1 300V (-40ºC) C(UL) E487898 2022 ****m

Phase Conductor			Insulation thickness	Ground		Jacket thickness	Approx.OD of cable
Size (AWG)	Cores	Strands	mm	Size (AWG)	Strands	mm	mm
14	2	1	0.86	14	1	0.76	4.9*9.9
12	2	1	0.86	14	1	0.76	5.3*10.8
10	2	1	0.86	12	1	0.76	5.9*12.3
14	3	1	0.86	14	1	0.76	8.8
12	3	1	0.86	14	1	0.76	9.8
10	3	1	0.86	12	1	0.76	10.9
8	3	7	1.02	10	1	1.14	14.7
6	3	7	1.30	8	7	1.14	18.1

2. Package&loading:
In plastic spools, normally 75m or 150m per spool. Other length is also OK.
