Cylinder Proximity Switch Magnetic Sensor

Product Description

Feature. A magnetic switch is employed to recognize and relay the presence of a magnetic field within a determined threshold. Thanks to superior operating ranges, a reduced footprint, precise switching points, and minimal energy consumption, offer the ideal solution in systems spanning the automotive, industrial, and commercial sectors.
1.Compact dimensions;
2. Easy screw mounting;
3. Solder reflow cable;
4. Thermoset overmolded material;
5. Ideal sensing point is marked;
6. Ideal sensing point can be customized;Application.
Security; ·Position Sensing; ·Moible phone; ·office equipment; ·Industrial Control;Product ParametersSensor solutions + wire harnesses: tailor made to your requirements including RAST-Assembly.

HALLTYPE		Latching
WIRES		2-Wire
BON/BOFF	mT	12.0 / -12.0
SUPPLY CURRENT	mA	5
SUPPLY VOLTAGE	V	3.0 to 24
OPERATING TEMPERATURE	°C	-20 to +85
HOUSING MATERIAL		PA6+GF
CABLE TYPE		UL1007/1569, AWG 24
COLOR		BLACK
DIMENSION	mm	23*14*6

Reed Switch Parameter Table

Contact Type		Normally Open	Normally Open High Voltage	Normally Closed	Change Over
Pull In AT-Range		10 - 40	10 - 40	10 - 40	10 - 40
Contact Rating	VA/Watt - max.	10	10	5	5
Switching voltage	Vdc - max.	200	300	175	175
	Vac - max.	140	265	120	120
Breakdown Voltage	Vdc - min.	250	400	200	200
Switching Current	Adc - max.	0.5	0.40	0.25	0.25
	Aac - max.	0.35	0.30	0.18	0.18
Carry Current	Adc - max.	1.2	1.40	1.5	1.50
Contact/Initial Resistance	Ω - max.	0.2	0.2	0.2	0.2
Insulation Resistance	Ω - min.	1010	1010	109	109
Contact Capacitance	pF - typ.	0.3	0.2	0.3	0.3
Operating Temperature	°C	-40 to +105	-40 to +105	-40 to +105	-40 to +105
Operate Time	ms - max.	1.0	1.0	3.0	3.0
Release Time	ms - max.	1.0	1.0	3.0	3.0
Shock 11ms 1⁄2 sine	G - max.	100	100	50	50
Vibration 50-2000 Hz	G - max.	30	30	30	30

Product details.

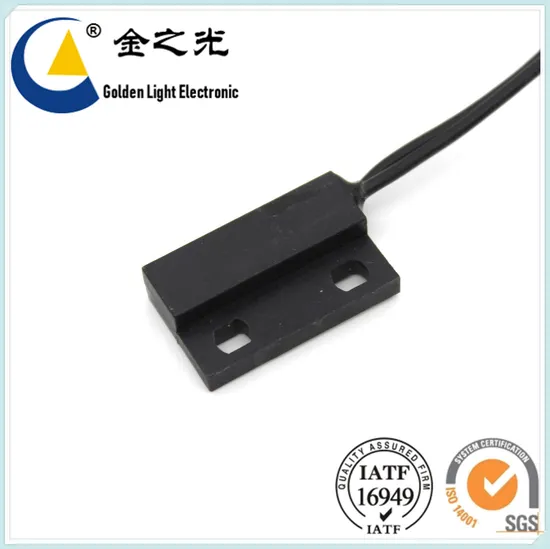

This type magnetic position switch is configured as a normally open switch. It is surface mounted by fixing screws for various industrial applications. Cable wiring is positioned to the right of the package. Also can be customized.
