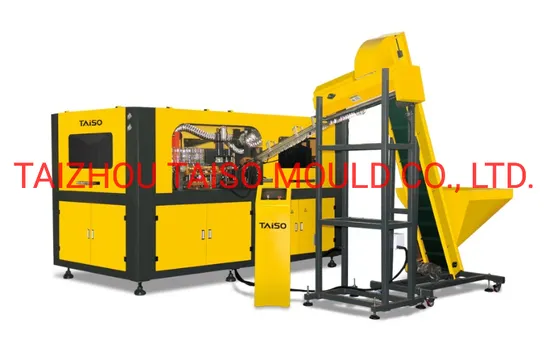

Servo-Driven High Speed 4 Cavities Automatic Plastic Pet Mineral Water/Juice/Wine Bottle Making Blow/Blowing Mold/Moulding/Machinery/Machine

Servo-Driven High Speed 4 Cavities Automatic Plastic Pet Mineral Water/Juice/Wine Bottle Making Blow/Blowing Mold/Moulding/Machinery/Machine

US$20,000.00-25,000.00 1 Set (MOQ)

Basic Info.

Model NO.
TS-A4-2L
Warranty
1 Year
Brand
Taiso
Raw Material
Pet
Making Method of Parison
Stretch Blow
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, QS, UL
Transport Package
by Sea
Specification
TS-A4-2L4
Trademark
TAISO
Origin
China
HS Code
8477309000
Production Capacity
15sets/Month

Product Description

Features
Apply to 100ml-2L mineral water, carbonated drink, cooking oil, wine, medicine, cosmetics bottles etc
-Servo driving system, fast, stable and energy saving, optional servo clamping, preform loading and
stretching system
-Adopt pressurized plate to solve the mold swelling and big mold line problem
-Adpot human computer interface, PLC will automaticlly feedback fault point, easier maintain
-Adjustable lamps design makes the preform heating in the best situation
-Automatic oil adding device, can avoid the pollution risk of manual adding
Technique Parameter of blow molding machine:
ITEMS Unit TS-A2-2L TS-A4 -06L TS-A4-2L TS-A6-06L TS-A6-2L TS-E6
(All servo)		 TS-E8
(All servo)
Number of cavities cavities 2 4 4 6 6 6 8
Max. volume L 2 0.6 2 0.6 2 0.6 0.6
Neck size mm 18-38 18-38 18-38 18-38 18-38 18-38 18-38
Max. Bottle dia. mm 103 68 103 68 103 68 68
Max. Bottle height mm 340 240 340 240 340 240 240
Theoretical output bph 1800-2400 4500-5000 3800-4500 6500-7000 5000-5500 8000-8500 10000-11000
Rated power kw 35 35 46 72 56 76 100
Power consumption kw 12-20 15-20 20-25 25-30 30-35 28-35 45-52
Main machine size m 2.7*1.8*2.1 3.3*1.85*2 4.5*1.9*2.1 4.5*1.9*2 5.3*2.1*2.1 4.5*1.9*2.3 5.5*2.15*2.3
Preform loader size m 1.9*1.2*2.4 1.9*1.2*2.4 1.9*1.2*2.4 2*1.3*2.4 2*1.3*2.4 2*1.3*2.4 2*1.3*2.4
Weight kgs 3500 4200 5200 5000 5800 5000 6200
