Cw6180 Cw61100 Cw61125 Sumore Low Price Big Bore Heavy Duty Metal Lathe Machine

Product Description

Product Description
(SUPER GOOD QUALITY ONLY!!!)
Workshop Equipment 1 To 12 Meter SP2148 Swing Diameter 1 To 1.6 M Horizontal Manual Metalworking Lathe Machine Horizontal Type Heavy Duty Lathe CW62100 CW62125
(Our lathe can be from small to big size, the web pages are limited, so please contact us for more details, we believe that there must be suitable models for you)
CW61100 CW61125 CW61160 heavy duty lathe are suitable for turning or cast iron and steel work piece,turning of non-ferrous metal parts of big or medium sizes.It can do external cylindrical surface turning,inner hole and end face turning.It can also turn various internal and external metric,inch,module and diametrical pitch threads,the top slide can be used independently for turning of short taper.These lathes are of high power,high rigidity and wide rotating speed range,so it can be used for high speed and strong force turning.
Product Parameters

Specifications	Unit	CW6180	CW61110	CW61125
Max.swing over bed	mm	800	1100	1250
Max.swing over cross slide	Mm	480	800	920
Max.turning length	mm	1500-20000	1500-20000	1500-20000
Max.load	kg	2500	2500	2500
Bed width	mm	600	600	600
Spindle bore and nose head	mm	Ø105;D11	Ø105;D11	Ø105;D11
Spindle taper		Ø120;MT5	Ø120;MT5	Ø120;MT5
Range of spindle speeds	r/min	5.4-720,18 steps	4.8-640,18 steps	4.8-640,18 steps
Longitudinal feed steps and range	Mm/r	64 kinds,0.05-24.3	64 kinds,0.05-24.3	64 kinds,0.05-24.3
Trace feed range through using gear change	Mm/r	0.06-0.912	0.05-0.76	0.05-0.76
Ratio of cross and lognitinal feed	Mm/r	1/2	1/2	1/2
Slide rapid traverse	Mm/r	4000	4000	4000
Screw pitch	mm	12(metric) 1/2''(inch)	12(metric) 1/2''(inch)	12(metric) 1/2''(inch)
Metric thread range	mm	50 kinds ,1-240 (with 14 kinds non-standard thread)	50 kinds ,1-240 (with 14 kinds non-standard thread)	50 kinds ,1-240
Inch thread range	T.P.I	26 kinds;14-1	26 kinds;14-1	26 kinds;14-1 TPI
Module thread range	MP	53 kinds ;0.5-120MP	53 kinds ;0.5-120MP	53 kinds ;0.5-120MP
Diametric thread range	DP	24 kinds ;28-1DP	24 kinds ;28-1DP	24 kinds ;28-1DP
Max cross travel of tool post	mm	500	500	500
Max travel of compound slide	mm	200	200	200
Tailstock travel	mm	250	250	250
Tailstock taper	Morse	MT5	MT5	MT5
main motor power	kw	11	11	11
Rapid motor power	kw	1.1	1.1	1.1
Coolant pump	w	90	90	90

Please inquire us your workpiece size, we will recommend the most suitable models for you~ We can give you factory direct price, no middle company add the price, so you can receive the lowest price from us!!!

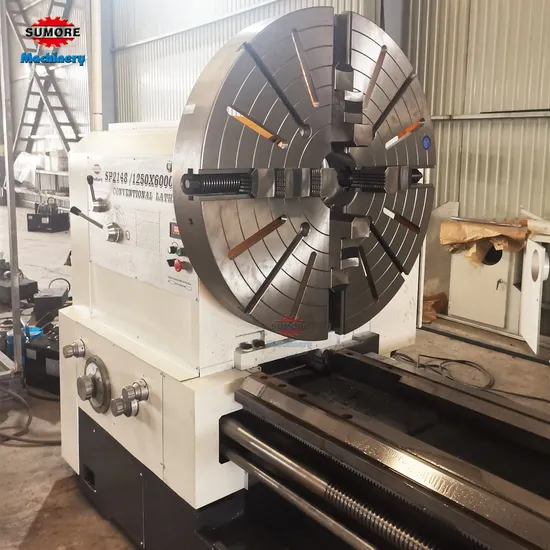

Detailed Photos
Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
