512Hz Pipe Locator, Sewer Camera Receiver Pipe Inspection Tool for Drain Construction

Product Description

Product Description

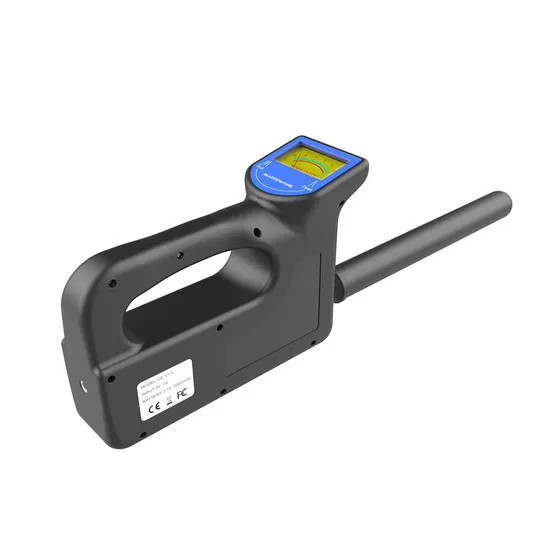

Receiver: The receiver has a built-in induction coil to receive the magnetic signal from the pipeline, and the coil generates an induced current to calculate the
direction and position of the transmitter. There are two receiving modes: Far (note: about 5M) and Near (note: about 2 meter). Then adjust the sensitivity knob, peak mode (maximum) or null mode (minimum) to locate the transmitter.
Receiver Technical Parameters:
Receiver Frequency: 512HZ
Power consumption: <3W
Distance: about 5m
Battery: 3.7V 3000MAH built-in lithium battery
Charger: 5V0.5A
Charger time:about 6 hours
Battery Indicator:4 gear,it is flashing when battery is low
Battery working time:about 10 hours
Signal strength:6 gear
Sensitivity Adjustable: Support
Speaker:Support
Detect Mode : Far/ Near
Transmitter Technical Parameters:
Transmitter frequency∶512HZ
Output wave∶Sine wave
Battery∶1.5V LR44 button cell
Transmitter distance: about 5M
