Servo Motor Driven Cup Filling and Sealing Machine for Ice Cream/Automatic Liquid Filling Machine

Product Description

Servo Motor Driven Cup Filling and Sealing Machine for Ice Cream
Brief Introduction:
Fully automatic linear cup filling & sealing machine can auto loading the empty cups, empty cups detecting, auto quantitative filling product into cup, automatic Alu-foil lids loading, auto lids sealing, cup capping,auto discharging the finish product to conveyor. Base on different mold quantity, its capacity from 5000-15000cups per hour, suitable for the foods, beverage,and dairy products.
Whole machine made by stainless steel 304 and anodizing aluminum, ensure it can running on bad food factory environment which has damp, steam, oil, acidity and salt etc. its body can accept the water rinsing clean.
Using high quality imported electrical parts and pneumatic parts which ensure the stable running in long time, reduce the stop and maintenance time.
Feature: Driven system: servo motor with gearbox for the cup molds stepping running, it can moving filled cup very fast but avoid material splash because servo motor can start and stop smoothly, and also high positioning accuracy. Empty cup loading function: it using spiral separating and pressing technology which can avoid the cup damage and deforming, it has vacuum sucker which guide the cup enter into mold accuracy. Empty cup detecting function: it use photoelectric sensor or optical fiber sensor to detect the mold have or haven't empty cup, it can avoid the mistake filling, sealing and capping if the mold without the cups, reduce the product waste and machine cleaning time. Quantitative filling function: it use piston filling and cup lifting function, no splash and leakage, the filling system also have CIP clean function (optional). The filling system accepts the heating fill (optional: heating tank and heat keeping stainless steel tube). Al-foil lids loading system: it make up by rotate vacuum suckers and al-foil lids magazine, the vacuum suckers get the lids then rotate 90 degree and place the lid on the filled cups. Sealing system: It has PID sealing temperature controller for each sealing mold. Discharge system: it make up by cup lifting and pulling system, faster and stable. Automation control system: it make up by PLC, Touch screen, servo system, sensor, magnetic valve, relays etc. Pneumatic system: it make up by valve, air filter, meter, pressing sensor, magnetic valve, air cylinders, silencer etc. Safety guards: it is optional function, it makes up by PC clear plates and stainless steel, has safety switches which protect the operator. Function:
cup loading, cup detecting, cup filling, cup sealing, cup capping (optional)waste film collecting, date coding, discharging to conveyor
Parameters:

Model	MF04L
Capacity	5000-6000cups/hour
Voltage	1P 220v50hz or 3P 380v50hz
Total power	3.2kw
Filling volume	50-300ml
Filling error	≤1.0%
Air pressure	0.6-0.8Mpa

Configuration:

Pneumatic system	AIRTAC
Servo system	Mitsubishi
Reduce gearbox	JIE
PLC	Mitsubishi
Touch screen	WEINVIEW
PID temperature controller	Omron
Sensor	Omron, FOTEK
low-voltage	Omron, Schneider, CHNT

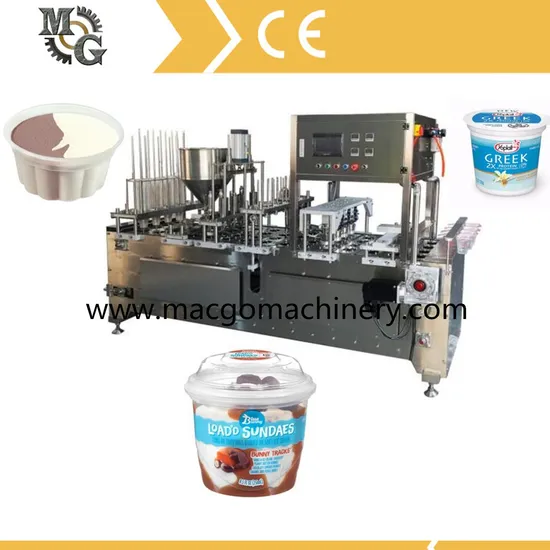

Machine Picture:
Parts Detail:
Picture of Product:
Our Service:
1, Warranty Time: One year, within this period if spare parts damage except the wrong operation , seller supply spare parts for free.We can send technician overseas for debugging machine, buyer should be responsible for necessary minimum fee like:lodging and air ticket .

2, Commissioning Services: During the time of installation and debugging, our engineers will not leave, until you are satisfied with the machine.

3, Training Services: Our engineer will train your staff installation and commissioning, operation during this period if necessary.And they will not be leave until your staff can operate properly.

4, Maintenance Services: As soon as we receive your inquiry about fault, we will reply you within 24 hours.
5, Lifelong After-Sales Services: We provide lifelong services for all the products we sold out, and supply the spare parts.

6,Inspection Services:Accept the third party inspection company or inspectors check the products before shipment.

7,File Services: we can supply Manual Specification,Operate Video and other files you need.
FAQ:
Q1: How to find a packing machine suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product would you like to pack?
2. The product size of you need for the product packing.
3. The weight of each pack you need.
4. Your requirement for the machines and the product shape.

Q2: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.

Q3. How can we make sure about the machine quality after placing the order?
The pictures and videos for you to check the machine quality are available to you before delivery.
And also you can arrange for quality checking by yourself or by your contacts in China.
