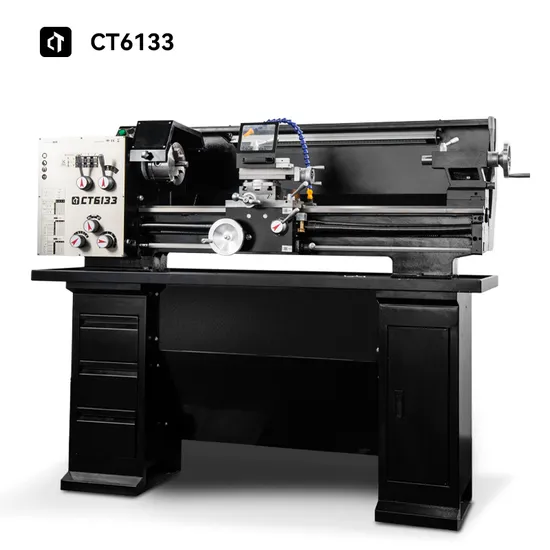

in Stock CT6133 Bench Lathe Machine for Home Use

Product Description

Features
Swing over bed 320mm
Swing over cross slide 220mm
Distance between centers 915mm
Household desktop small lathe
1. The spindle speed can be clicked, the belt position can be changed and the gear shift of the spindle can be ad-justed to achieve the 12-speed spindle speed change.
2. Vertical and horizontal automatic cutting tool, can turn a variety of threads.
3. Spindle box gear and bed guide rail after quenching treatment, using imported SKF bearing, high precision, goodrigidity, large torque.
4. Comply with CE and lS0 production standards, chuck power shield, safe and reliable operation.
5.Heavy low cabinet, strong bearing capacity, high stability. 6.Suitable for maintenance workshop, factory workshop.

Model	CT6133
Bed rotation diameter	320mm
Distance between two centers	915mm
Turning length	880mm
Center carriage rotation diameter	220mm
Bed width	160mm
Spindle aperture	38mm
Spindle taper	MT5
Spindle end thread pitch	50mm x 1.5mm
Spindle speed series	12
Spindle speed range	65~1650rpm
Center carriage lateral travel	160mm
Tool rest plate travel	100mm
Metric thread types and ranges	12/ 0.25~4mm
Inch thread types and ranges	18 / 96~4TPI
Longitudinal feed range	0.087~2.049mm/r
Lateral feed range	0.019~0.444mm/r
Tailstock sleeve diameter	40mm
Tailstock sleeve travel	80mm
Tailstock sleeve taper	MT3
Tool specifications	16x16mm
Screw specifications	24mm X 3mm
Motor power	1.5kw
Lathe dimensions	1600×727×1224mm
Cabinet dimensions	1600×340×660mm
Packing dimensions (including floor cabinet)	1470×770×1400mm
Cabinet net weight	60kg
Machine net weight	285kg

FAQ
Q.What are your normal lead times?
A.Our company typical lead times range from 3-20days after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, OlA etc.
Q.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we
have in stock, the MOQ is 1 set.
Q.Do you have CE certification?
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle
we always maintain is "to provide customers better quality, better price,and better service".
