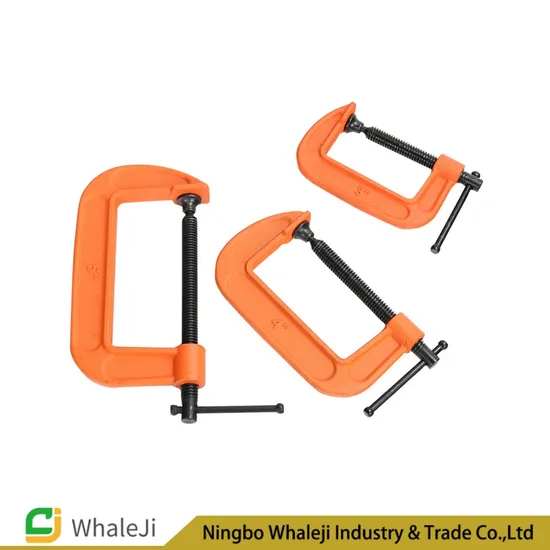

Malleable Steel G Jig for Woodworking Clamp
| US$0.31-3.85 | 1,000 Pieces (MOQ) |
Basic Info.
Model NO.
J/SY114C
Brand
OEM/ODM
Quality Grade
Professional Level
Material
Chisel Tool Steel
Package
Carton Box
Box Size
47*29*19
Type
G Clamp
Transport Package
Carton
Specification
1′′, 2′′, 3′′, 4′′, 5′′, 6′′, 8′′, 10′′, 12′′
Trademark
whaleji
Origin
Hubei
HS Code
901780000
Production Capacity
50000
Product Description
Basin info.| Model NO. | J/SY114C | Type | G clamp |
| Material | steel | Trademark | Whale Ji |
| Size | 1'',2'',3'',4'',5'',6'',8'',10'',12'' | HS Code | 9031809090 |
| usable range | woodworking | Origin | Hubei |
| Customized | Customized | Transport Package | inner box |
| Production Capacity | 50000PCS/Years |
| SIZE(mm) | QTY(PCS) | Product weight(g) | MEAS(CM) | Opening distance(mm) | Screw diameter(mm) | depth(mm) |
| 1'' | 20/240 | 120 | 39*21*24.5 | 30 | 7 | 30 |
| 2'' | 15/150 | 210 | 39*21*24.5 | 55 | 9 | 40 |
| 3'' | 10/60 | 450 | 18*21*52 | 80 | 13 | 61 |
| 4'' | 6/48 | 620 | 23*26*48 | 100 | 13 | 72 |
| 5'' | 6/36 | 790 | 26*27*42 | 130 | 13 | 82 |
| 6'' | 6/24 | 1120 | 30*31*28 | 160 | 13 | 86 |
| 8'' | 5/20 | 1460 | 47*35*16 | 200 | 13 | 97 |
| 10'' | 10 | 2090 | 41.5*28*17 | 250 | 15.5 | 110 |
| 12'' | 10 | 2780 | 47*29*19 | 270 | 15.5 | 122 |
