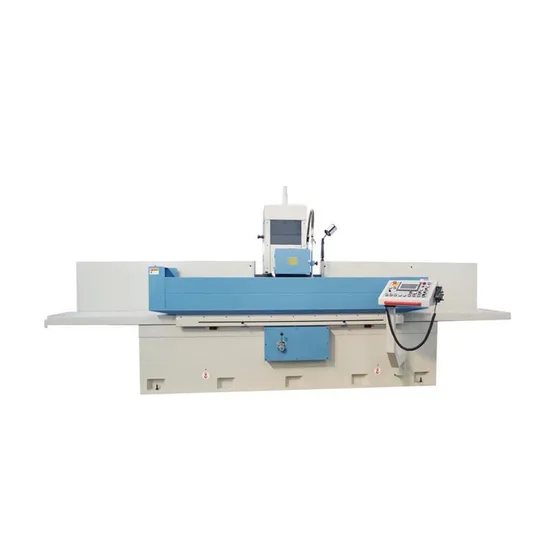

Senmo Brand Nc Column Moving Surface Grinder Grinding Machine Sg50100nc/Sg50160nc
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
SG50100NC
Type
Surface Grinding Machine
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
Precision
Certification
CE
Condition
New
Transport Package
Wooden Pallet
Trademark
SENMO
Origin
China
HS Code
84601900
Product Description
| Column Moving Surface Grinding Machine Feature |
| ·External hydraulic unit ensures low temperature rising and supply stable power. ·Very easy to set auto ground program include rough, finish ,and spark-out stroke. ·Precision grinding spindle runs in maintance-free,support by preload high precision angular ball bearing. ·Machine is designed for continuous operating at maximum speed, very quiet operation, maximum accuracy. ·MPG is equipped for Y&Z axis (spindle elevating and cross feed),the operating position is free,it is so easy to control the machine. ·The machine is standard equipped with SIEMENS 7" LCD-TFT colorful touchable screen. Built in program of our engineers' genius philosophy makes the operation very simple and convenient for the operators. |
| Specifications | Unit | SG50100NC | SG50160NC | SG50450NC |
| Table size W*L | mm | 500*1000 | 500*1600 | 500*4500 |
| Max.grinding size | mm | 500*1000 | 500*1600 | 500*4500 |
| Max.distance from table to spindle center | mm | 600 | 600 | 600 |
| Magnetic chuck size(optional equipment) | mm | 500*1000*1 | 500*800*2 | 500*1000*4 |
| Speed of table longitudinal move | m/min | 5~25 | 5~25 | 5~25 |
| Wheel head cross move | ||||
| Auto intermittent feed | mm/t | 0~30 | 0~30 | 0~30 |
| Rapid speed | mm/min | 0~600 | 0~600 | 0~600 |
| Feed of MPG | mm/div | 0.005 | 0.005 | 0.005 |
| Vertical motion | ||||
| Rapid down speed | mm/t | 0.005,0.01,0.02,0.03,0.04 | ||
| Rapid speed | mm/min | 0~300 | ||
| Feed of MPG | mm/div | 0.005 | 0.005 | 0.005 |
| Grind wheel size | mm | 355*(20~50)*127 | 355*(20~50)*127 | 355*(20~50)*127 |
| Spindle motor power | kw | 7.5 | 7.5 | 11 |
| Packing size | cm | 399*225*250 | 564*225*250 | 1150*238*250 |
| Gross weight | kg | 5500 | 6000 | 14500 |
| Standard Accessories | Optional Accessories | ||
| Auto grinding controller | Wheel balance stand | ||
| Coolant tank | Magnetic separator | ||
| Balancing arbor | Paper filter | ||
| Wheel flange and extractor | Oil tank guard | ||
| Wheel dresser stand | Electrical magnetic chuck | ||
| Y/Z axis electrical wheel(MPG) | Parallel wheel dresser | ||
| Built-in magnetic chuck controller | Digital readout for Y/Z axis | ||
| Splashing guard | Extra Wheel flange | ||
| Standard grinding wheel | |||
| Leveling wedge and bolt |
Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
