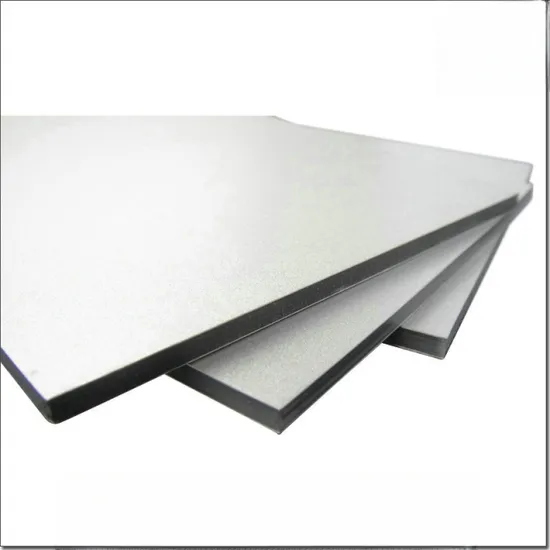

Marble Pattern 3mm 4mm Aluminum Composite Panel ACP Sheet for Kitchen Cabinet

Product Description

Marble Pattern 3mm 4mm Aluminum Composite Panel Acp Sheet For Kitchen Cabinet
Guangzhou Xinghe Decorative Material Co.ltd located in Guangzhou city, Guangdong province. It covers land of construction area a 20000 square meters, we are a large-scale joint-stock enterprise specialized in manufacturing aluminum composite panels, aluminum panel,which is provided with abundant manufacturing experience,high -tech strength, sophisticated production equipment and rigorous quality testing method.
with a total investment of RMB 150 million Yuan, we have 24 advanced production lines of aluminum composite panel, and 6 large coating lines,and 4 protection film production lines .Xinghe mainly produces aluminum composite panels, aluminum panels and aluminum honeycomb panels, covering more than one hundred specifications and colors. our market:North American,Asia, Oceania,Africa and etc.
Xinghe will commit itself to broadening its building and decorating materials , striving to make it the largest production base of aluminum composite panel and aluminum panel in china.

Third Party	Test Standard	Alucorebond FR ACCP	Results & Classification
TUV	BS476 Part 7	4mm	Class 1
	BS476 Part6	4mm	Index 0
	BS476 Part4	4mm	NON-COMBUSTION
SGS	DIN4102 Part 1	4mm	Class A2
	EN13501	4mm	Class A2,s1,d0
Intertek	ASTM E84	4mm	Flame 0 Sm.Deve index10
China	GB8624-2012	4mm	Class A2,s1,d0
AU	AS1530.1-1994	4mm	NON-COMBUSTION
	AS1530.3-1999	4mm	Ignitability Index 0 Spread of Flame Index 0 Heat Evolved Index 0 Smoke Developed Index 1

Basic Material
1) front side: aluminum alloy sheet coated with fluoro-carbon resin(PVDF) or polyester resin (PE)
roasting painting
2) Core material: nontoxic polyethylene, PE, FR, LDPE
3) Back side: aluminum alloy sheet coated with polyester resin painting(PE)
Product Parameters
SPECIFICATION AND SIZE
Width:1000mm,1220mm 1250mm,1500mm,1550mm, 1570mm ,2000mm
Length :2440mm, 3200mm,4000mm 5000mm 6000mm,or customized
Thickness : 2mm, 3mm, 4mm, 5mm, 6mm,8mm,10mm
Thickness of ALU-layer : 0.08mm,0.10mm,0.12mm,0.15mm,0.18mm,0.21mm,0.25mm,0.3mm,0.35mm,0.4mm,0.45mm,0.5mm
Inner Core Normal non toxic PE core, one side unbroken plastic, two side unbroken plastic, virgin LDPE, fireproof material
Color : Solid color, metallic color, brush color, mirror, marble, wooden color, glossy
Brand: CROWNBOND, MEGABOND, or customized
Surface : PE coating , PVDF coating, NANO, Brush surface, mirror surface,marble.
Thickness of film :0.07mm,0.09mm
FCL :1220*2440*4mm 1500 sheets in 20 feet container;
*** Custom specifications are negotiable ***

Product Tolerance
Length	±3.0mm
Thickness of panel	±0.2mm for 3 and 4mm thick panel, ±0.3mm for 5 and 6mm thick panel
Bow	≤5.0mm for panel size of 1220x2440mm
Squareness	≤5.0mm/m
Edge instraightness	≤1.0mm/m

Application
1) Constructional exterior curtain walls, Wall Panel are widely used in exhibition, stores, offices, banks, hotels, restaurants and apartments;
2) Decorative renovation for storey-added old buildings, facades, roofing;
3) Indoors decoration for interior walls, ceilings, bathrooms, kitchens, balconies and subway;
4) Advertisement board, display platforms, billboards and signboards;
5) Wallboard and ceilings for tunnels;
6) Raw materials in industrial purpose;
7) Material used for vehicle bodies, yachts and boat
Features:
1) Fireproof and water resistant, excellent heat and sound insulation
2) Excellent surface flatness and smoothness
3) Superior weather, corrosion and pollutant resistance
4) Even coating, various colors
5)Super peeling strength
6) Superior impact resistance
7) Lightweight and easy to process
8) Easy to maintain
Quality control:
Certificates: ISO9001; SGS; Russian fireproof certificate; Tensile strength;
BS 476 Fireproof Certificate;Salt Spray (FOG) Test- ASTM; Coating Thickness and etc.
Quality Assurance 1) Under natural climate, film coating will be no flake. No rubbles, no vestige and no pulverization.
2) Under common environment. No flake. No rubbles.
3) Under common temperatures and radiation, no color difference.
4) According to international test standard, all the tested items are satisfied with high-class.
5) Our products with PVDF coating under common environment, we can guarantee 15-20 years; And for FR products, it is good at fireproof, and the FR grade is B1 and A2.
FAQ 1. How soon can I get a price quote?
Once we know the panel thickness, aluminum thickness, dimensions, paint requirement(PVDF coating or PE coating ), we can provide you with one competitive price quote within 24 hours.
2. Can I get a sample?
Yes, the samples are free for you. But you need to offer one courier account NO. To afford the fee for samples shipping. The samples' sending usually takes 3-5days.
3. How can my order produced by my brand?
Yes, you can. Pls offer your brand or LOGO design to us, then we could produce all goods with your brand or LOGO.
4. What's your delivery time?
Except our legal holiday, it will take 2 weeks for us to finish all your orders' production.
5. Is there a minimum order requirement?
Due to the high machine setup cost and shipping freight, our minimum order quantity is 600SQMS. It is recommended for you to order a 20"GP to reduce the unit price and shipping cost.
6. Do you sell any related products which are used for installing the aluminum composite panel?
Yes, we haven. We sell all the installation accessories for our aluminum composite panel. There are: Aluminum profile, screw, rivet, foam filler rod, paper tape, and silicone. If you are interested in them, pls contact with us, we will give you the most competitive price.
7. Will you match competitors' prices?
If you find a lower price elsewhere for the exact same specification, we will meet or beat that price as long as it is a little higher than our cost price.
8. How do I know I can trust you to make the order from you?
XINGHE established in 1999, Company owns MEGABOND® , CROWNBOND® , Brands, we have huge customers in more than 80 different countries of this world. XINGHE all projects around the whole world can be made our customers feel 100% satisfaction.
9. What are your terms of delivery?
We accept FOB, CIF, LC etc. You can choose the one which is the most convenient or cost effective for you.
10. Claims:
Should meet any problems when you use, please feel free to communicate with us, it is our biggest pleasure to support you in all terms. Any problems you feedback will be our the ladder of progress. Welcome to buy our products again, we will continue to provide quality and convenient service for you.
