High Customer Rating 2 Ton Chinese Cheap Excavator Mini Digger
| US$11,000.00-13,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
20
Usage
Special Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
>1.5m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Rated Speed
3.5 Km/H
Maximum Digging Height
3700 mm
Maximum Digging Depth
2400 mm
Max Digging Radius
4040 mm
MOQ
One Unit
Application
Construction Digging
Engine Brand
Kubota
Power
14.1kw/2000rpm
Machine Weight
2000kg
Transport Package
Packed in Wooden Case
Specification
3555 *1300*2290mm(L*W*H)
Trademark
MDL
Origin
China
Production Capacity
50 Set/Sets Per Month
Product Description

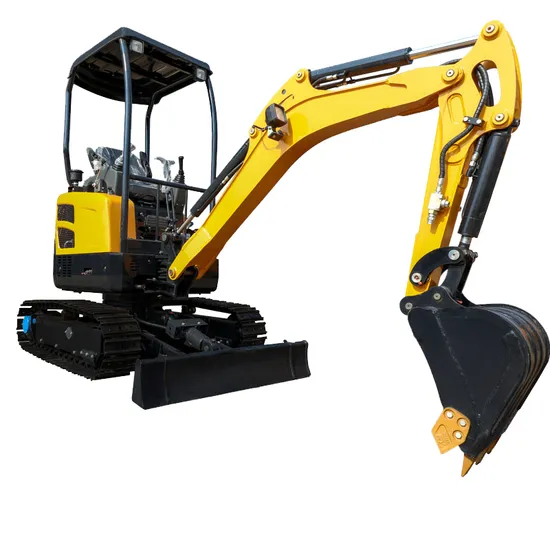

2 ton Excavator (20)
We can customize all the accessories in the above picture for you. Product Parameters
| |
| Performance Parameter | |
| Overall dimension (L*W*H) | 3555 * 1300 * 2290 mm |
| Axle base(Track length on ground) | 1230 mm |
| Track gauge | 760 mm |
| Min.Ground clearance | 150 mm |
| Swing radius at tail | 650 mm |
| Track System | |
| Maximum Travel speed | 4 km/h |
| Width of track shoe | 230 mm |
| Number of track shoe per side | 38 pcs |
| Number of upper roller per side | 1 |
| Number of bottom roller per side | 3 |
| Performance Parameter | |
| Standard bucket capacity | 0.07 m³ |
| Swing speed | 9 rpm |
| Max. Grade ability | 35° |
| Max. Bucket digging force | 18 KN |
| Max. Arm digging force | 11 KN |
| Hydraulic system pressure | 21.5 Mpa |
| Machine weight | 2000 kg |
| Engine | |
| Emission Standard | Euro 5/EPA |
| Engine Brand | Kubota |
| Power/Rotation speed | 14.1kw(20HP) 2000rpm |
| Number of cylinder | 3 |
| Working Range | |
| Max. Digging height | 3700mm |
| Max. Dumping height | 2440mm |
| Max. Digging depth | 2400mm |
| Max. Vertical digging depth | 2025mm |
| Max. Digging radius | 4040mm |
| Min .swing radius | 1610mm |
| Max. Lifting height of blade | 240mm |
| Max. Cutting depth of blade | 270mm |
| Boom swing angle(Left) | 75° |
| Boom swing angle(Right) | 45° |
Company Profile
Packaging & Shipping
FAQ
1.What kind terms of payment can be accepted?For terms of payment, L/C, T/T, Western Union (can be) could accepted.2. What certificates are availble in Machinery?For the certificate, we have ISO,EPA,SGS and CE.3.What about the delivery time?7-20 days after receiving the deposit.4.What about the warranty time?12 months after shipment or 2000 working hours, whichever occurs first.5.What about the Minum Order Quantity?The MOQ is 1 pcs.
6.How to show your manufacture to customers?It depends on you,if you have time,you can come to visit our manufacture. If you do not have time,then we can have vedio call,then show you around our workshop. Our workshop is working from 8:00 am to 5:00pm in Beijing Time!
