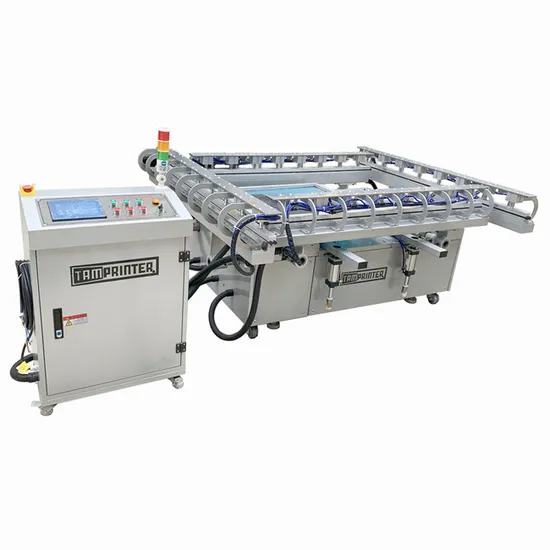

Fully Automatic Filter Mesh Stretching Machine

Product Description

Re-mesh table type strecher machine for Round Stainless Steel Filter Mesh/ Test Sieve/ Vibrating Screens,one of filtration Mesh make equipment.Carbon Steel Screening Filter Machine Plastic Granules Rotary Vibration Screen for Powder need reach very big Tension, ordinary mesh stretching machine does not have enough tension, and the tension distribution after forming is uneven. Usually use this machine
Composite net also use this.Product Description

machine outside size	3600mm*8800mm*1150mm	200*250*115CM , 5.75CBM	240*200*115CM , 5.5CBM
Max Size for Frame	3200*8000mm	1200*2100mm	1600*1600mm
Min Size for Frame	3200*8000mm	800*2100mm	1000*1600mm
Tension tolerance	Max 0.5N	Max 0.5N	Max 0.5N

Motor transmission mode		Worm gear deceleration SUBI 1:50			Worm gear deceleration SUBI 1:50
Power		3KW 380V-3phase 50Hz			3KW 380V-3phase 50Hz
Weight		1500kg			1500kg
Structural part	project	Accessories name	Configuration instructions
basic structure	Fuselage structure	Square tube shape	Sheet metal bending and bending box type removable type
	Surface box	Square tube	Welding surface processing removable
Transmission mechanism	Screw system	Sino-foreign joint venture	380V LP-1.5KW
	Gearbox	Sino-foreign joint venture	DRV900 1:50*2P
	cooling system	Exhaust fan	AC-220V*2P
Pneumatic configuration	Lock cylinder	NSN63C-25	SDA-25*16
	electromagnetic valve	QDC-Q4D2L08	220V- Q4D2L08
	Pressurized cylinder	NSN63C-25	SDA-25*60
Electrical configuration	system	Programming		XINJE-XC3 AC-220V 48E
	Display panel	touch screen		TH765-MT7MS
	Inverter	Shilin		SS2-021-2.2k
	Limit switch	sensory switch LKD-18		PRCM12-4DN D4MC-5020
	Contactor	2510N		LC1E2510M5N AC220V

1.Product Features:

1. It adopts PLC microcomputer control and intelligent memory control system, intelligent human-machine exchange interface, and simple operation, ensuring accurate, stable and efficient net stretching.

2. The body structure adopts high strength steel mixed structure.

3. The most scientific and reasonable integrated clamping principle is designed and used. The cylinder is fully automatic self-locking clamping mechanism. It is convenient and fast to lock the net, with uniform force and accurate net clamping. And through the cylinder pressure and the optimal parallel distance of the mesh traction friction! Realize tension (0-60N) without sliding net, no gap, no dislocation deformation.

4. Fully digital display of the stroke during X, Y column stretch net work, accurate to the micron (um) level, open intelligent guidance memory mode, to meet the different types and specifications of the net stretch net, the stretch parameters of the stretch net can be arbitrary Choose memory, fine-tune the control of humanization and automation. Maximized the efficiency of stretched nets! Maximize the operation of the stretcher.

5. Originally introduced Guangxi's Legal Bridge Law to promote the most reasonable stretch net concept. During the stretching process, when the mesh is under simultaneous force on the X and Y columns, the machine's four right angles have the function of automatically buffering and balancing forces, allowing the error between the forces to quickly reach the bridge-type mitigation and supplementation, gradually and gradually Required tension. Maximum guarantee that the mesh cloth is not susceptible to bursting or breaking the net while bearing the ultimate tension

6. The whole machine is equipped with multiple operation protection devices. Circuit and air circuit design are clever and reasonable, low power. In line with the trend of low energy consumption. According to the different requirements of different industries, different sizes can be professionally customized.

7. Equipped with a more user-friendly digital display of the clip net bar, combined with auxiliary originals such as the position of the net yarn and the foot switch, the net fabric does not need to be cut. In the case of 40N, optional automatic mute air compressor system is optional.

8. Equipped with automatic top net system. Lifting stroke distance, air source pressure, etc. can be adjusted arbitrarily. The top net method is reasonable and easy to operate.

2.Competitive Advantage:

1.Integrated screen locking eliminates the manual single chuck, the pressure of the clamping net is uneven, the uniformity and flatness of the net cannot be unified, the gap between the chucks causes ripples, and the uneven force will easily explode the net .

2. It breaks the misunderstanding that the traditional pull screen needs to be angled" and realizes the real X Yline vertical pull screen. At the same time, it eliminates the waste of defective products caused by the "angle angle" and saves net yarn.

3. The most accurate drawing mode. That is, stretching in the X Ydirection at the same time, and ensuring that the stretching speed and force are consistent, thereby ensuring the maximum uniformity of the mesh (reference value: ± 0.5N), Make the most of the mesh.


4. A convenient and convenient way to pull the net by intelligent memory, which solves the tedious manual screen locking and unscientific processes such as pulling the net. More than 100 sets of pull data memory space, unprecedented in China. It is more than 3 times faster than the traditional manual or electric netting, which makes the netting more efficient and saves unnecessary manpower, financial and material resources. (Reference value: 3-5 minutes to complete the net drawing operation)

5. The stable and high-strength structure can be easily made for stainless steel screen, composite screen, and high-tension screen. No deformation, yarn running, etc. The traditional network equipment is unparalleled.

6. The operation is a "fool" type, which is also the core focus of the aircraft design. Any worker can be proficient in the operation and use of the machine within 1 hour. Get rid of the trouble of finding professional talents completely.

7.If a professional plate-making dealer is equipped with this equipment, it is suitable for any screen cloth stretched by screen printing. Its high efficiency, low energy consumption, high quality, and low manpower will undoubtedly have a huge impact on its peers and increase its popularity.

Application area:
It is widely used in high-precision, high-tension screen stretched screens in solar photovoltaic industry, circuit board industry, liquid crystal touch screen industry, electronics industry, glass printing and other fields. High-quality stretch nets of any straight stretch type including polyester, nylon, and stainless steel mesh.

Payment Terms TT/LC Product Image
