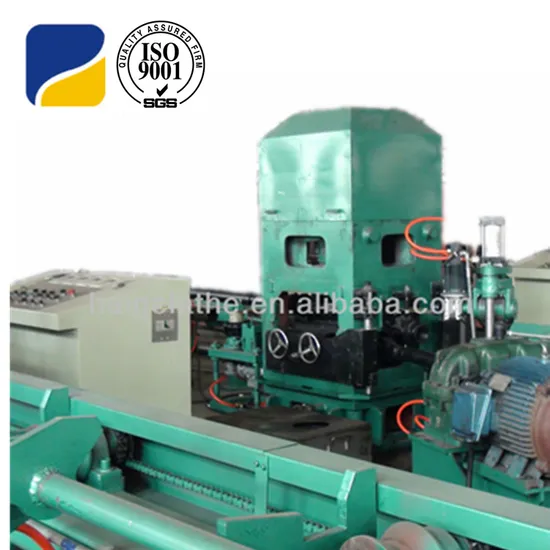

2-Roll Metal Axle Straightening Machine for Sale

Product Description

China cheap two-roll bar straightening machines
Series JY straightening machine is mainly used forPrecision straightening for the metal bar after peelingor granding and pre-straightening for the metal bar.
The machine adopted special curve between upper concave and the lower convex two straightening rolls to realize calendering and straightening at the same time, which greatly improved the working efficiency.
Series JY two-rolls Straightening Machine consists of two-beams and four-columns structure, prestressed structure and frame structure.

Technical Parameters

specification		JY150Z
Input material	Diameter range(mm)(non-drawing)	Tensile Strength σb≤700(Mpa)	Φ70≤d≤Φ150(L ≥3000)
		Tensile Strength σb≤1000(Mpa)	Φ70≤d≤Φ140(L ≥3000)
	Surface hardness	≤HB300±3
	straightness(mm/m)	≤2
	Diameter tolerance	≤h10
	roundness	≤50% of diameter tolerance
	Surface roughness(Ra)	≤3.2~6.3mm
Output material	straightness(mm/m)	1.2
	roundness	Better than input material
	Diameter tolerance	≤h10 if peeled bar
	Surface roughness(Ra)	≤0.8μm if peeled bar
Roll qty		2
Roll diameter(mm)		Φ460
Feed rate(continuously variable transmission )		0.5~5(m/min)
Main machine motor power(kW)		90X2
Lifting motor power(kW)		5.5
Dimension(m)(for reference)		Main machine 10X2.6X4.6 with accessory parts 15.8X5.5X3.0
Total weight(t)(for reference)		50
Total capacity(kW)(for reference)		200
Compressed air source(user supply)		0.5~0.8MPa,3m3/min,two-stage oil-water separator

Company introduction Yantai Haige International Trading Co.,Ltd., is a joint-stock enterprise engaged in exporting niche mechanical equipments produced in China to the markets abroad, which is located in Laishan district, Yantai City, Shandong Province, China.
The company is based on the manufacturing plant---Yantai Haige machine tools Co.,Ltd whose area is more than 2000m². There are one hundred and forty staffs working in the factory. The factory is mainly engaged in producing and selling peeling machines(centerless lathes), straightening machines, polishing machines(abrasive belt machines), auxiliary machines and other processing and finishing equipment for steel(bright steel) for more than ten years.
Certification
Packaging & Shipping
FAQ
1.Are you manufacturer or trading company?
We are professional manufacturer and we have more than 10 years experience in this field.We have our own factory.
Besides,at the end of 2014,we was just estabilished a trading company.
2.How many employees are there in your factory?
Approximately 150 persons.
3.Do you have your own R&D team?How many design engineers do you have?
Yes,we have our own R&D team.More than 10 persons.
4.Which countries have your machines been exported to now?
Russia,South Korea,North KOrea,Pakistan,India,Vietnam,Taiwan,etc.
We regard our customer's satisfaction as our unremitting pursuit.
