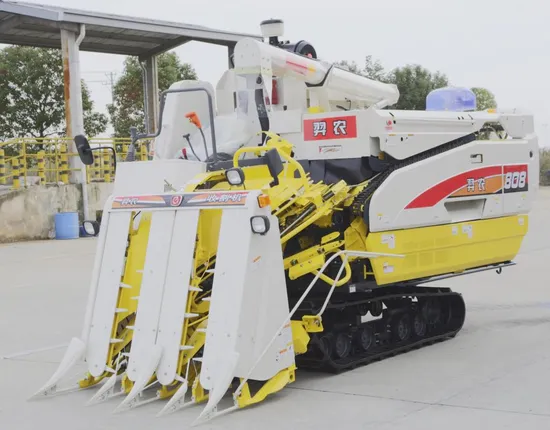

Iseki Top Level Head Feed Combine Harvester
Basic Info.
Model NO.
808
Application
Rice, Wheat
Power Source
Diesel
Harvest method
Cutting
Drive Type
Gear Drive
Transmission
Hard Shaft
Certification
ISO9001:2008, CE
Color
Red
Condition
New
Application Field
Agriculture
Warranty
One Year
Product Name
Df Iseki Head Feed Combine Harvester Rice Wheat Co
Model
Df808
Rated Power
85HP
Rotating Speed
2600 R/Min
Dimension
4340mmx2350mmmmx2610mm
Weight
2975 Kg
Row Num
4 Rows
Crawler
450mm*1620mm*50
Minimum Ground Clearance
230 mm
Productivity
0.3-0.5hm2/H
Grain Discharge
Single Direction /Multiple Direction
Transport Package
Standard
Specification
CE SGS ISO
Trademark
WUBOTA
Origin
Japan
HS Code
8433510090
Production Capacity
500 Sets/Month
Product Description
Product Parameters
| Model | Iseki-808G | ||
| Dimension | 4340mmX2350MMmmX2610mm | ||
| Min Ground Clearance | 230mm | ||
| Weight | 2975KG | ||
| Engine | Model | Nissan ZD30N08-3D1 | |
| Structure | In-line, Four Cylinder,Water Cooled, ,DI,Dual-Cam four valve/Tier III Engine | ||
| Rated Power/Speed | 60KW/81.6HP/2600rmp | ||
| Displacement | 2953L | ||
| Fuel Tank Capacity | 85L | ||
| Walking Part | Crawler | Width*Length | 450mm*1620mm |
| Crawler Pitch | 50 | ||
| Thread | 1070mm | ||
| Transmission type | HST+Gearbox (3 Level) | ||
| Speed | Forward(M/S) | Low: 0-0.98 High:0-1.65 Walk:0-2.05 | |
| Reverse(M/S) | Low: 0-0.84 High:0-1.42 Walk:0-1.75 | ||
| Cutting Part | Cutting Width | 1450mm | |
| Cutting Height | 650-1300mm | ||
| Lodge crop cutting | Anti: 85°, Along 70° | ||
| Speed Gear | Same as walking speed Minor Two&Lifting Three | ||
| Threshing Depth Adjustment | Electrical(Auto+Manual Adjustment) | ||
| Thresher | Threshing Method | Lower Side Threshing Axial Flow | |
| Drum | DIA*Length | 462*1050mm | |
| Re-Threshing Dia*L | 60*782mm | ||
| Discharge*Length | 150*788mm | ||
| Self Control | Feeding Depth | Yes | |
| Jam Stopping | Yes | ||
| Full Grain Storage Alarm | Yes | ||
| Binder | Installation | Over Hang Type | |
| Weight | 103Kg | ||
| Dimension | 1945*1495*1140mm | ||
| Rated Speed | 647 r/min | ||
| Transmission Method | V Belt | ||
| Binding Size(Perimeter) | 450-600mm | ||
| Rope Size | 1.3-1.6mm | ||
| Binding Type | D Type | ||
| Binding Speed | <1.3 S /Bundle | ||
| Binding Number | 20-33.3 Bundle/Hectare | ||
| Working Area Per Rope | 0.4-0.67 (Hectare/Rope) | ||
| Working Efficienty | 0.2-0.34 Hectare/Hour | ||
FAQ:
1. Q: What is the warranty of your agricultural machines?
A: 1 year guarantee for whole machine ( except quick-wear parts ), engine and gear box.
2. Q: Are there any optional parts for your combine harvesters ?
A: Yes, optional parts such as rubber track size, grain tank and type of grain unloading.
3. Q: How long is your delivery time ?
A: Normally it takes 15-20 days to deliver after your deposit receipt or L/C at sight.
4. Q: How many harvesters can be loaded in one container ?
A: (1) 20 Feet Container loads:
For combine harvester:
1 set 4LZ-5.0
For Power Tiller: 18 sets GN12; 20 sets M80
For Spare Parts: 15-18 tons
(2) 40 High Cube Container Loads:
For Combine Harvester:
3 sets 4LZ-5.0
For Power Tiller: 40 sets GN12; 50 sets M80
For Spare Parts: 30-35 tons
5. Q: What is the payment term ?
A: Irrevocable L/C at sight or 30% T/T in advance and balance against B/L copy.
6. Q: What is the after-sales service ?
A: Every year we send our engineer and after-service people to local market to assist our sales agent for staff training, marketing, advertising, maintaining and repairing the machine during the harvesting season.
7. Q: Is OEM or ODM service acceptable ?
A: OEM service is no problem, if you have any special requirements about the machines, please kindly inform us, our engineering department will study and offer you the suitable solution.
