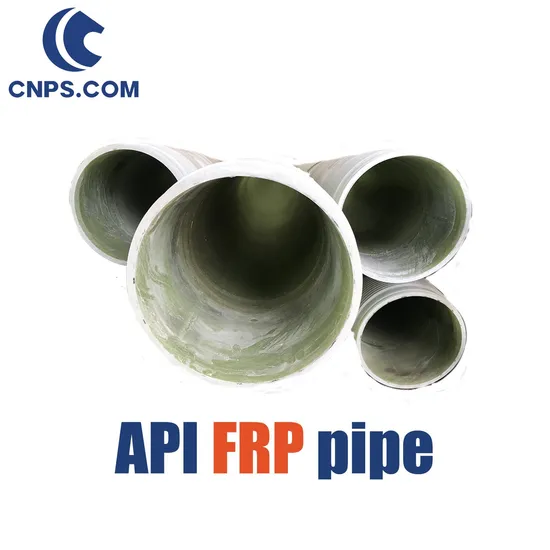

API 15hr Connection Fiberglass Pipe Systems Tube for Oil and Gas Well

Product Description

Product Overview

Brand Name	CNPS
Material composition	Material composition
Application	Potable Water lines;Sanitary Sewage Lines;Industrial
Surface Treatment	Smooth Surface
Technique	Filament Winding Process
Product name	Fiberglass Pipes
Shape	Circle
Dimension	DN50 mm
Feature	Corrosion Resistance and durable
Material	Glass Fiber Reinforced Plastics
Pressure	0.6 Mpa--2.5Mpa
Max Temperature	-35°C~135°C
Long life time	more than 50 years
Place of Origin	China (Mainland)
Transport Package	Customery Packing
Normal Stiffiness	SN2500, SN5,000,SN10,000
Standard	API 15HR, API 15LR, SY/T 6267-2006,SY/T 6266-2004
Connection	Butt Fusion,Flanged Joint

API 15HR coupling connection Fiberglass tubing We are a leading manufacturer of technically advanced fibreglass pipe and tanks in china. Fibreglass pipe, commonly referred to as Fiberglass Reinforced Plastic (FRP) or Glass Reinforced Epoxy (GRE), is the material of choice for demanding oilfield applications.
FEATURES AT A GLANCE 1. Fiberglass tubing DN50 (OD 61mm, ID 48mm, wall thickness 6.5mm ), coupling connection, nominal pressure 17.2MPa, moulded composite thread 2-3/8 8RD, 65ºC API 15HR 2. Fiberglass tubing DN50 (OD 61mm, ID 48mm, wall thickness 6.5mm ), coupling connection, nominal pressure 17.2MPa, molded composite thread 2-3/8 8RD, 93.3ºC API 15HR PRODUCT SPECIFICATIONS Specification:
Our GRE oil pipes and fittings had already been certificated by API 15HR and API 15LR.
SPECIFICATION:
a. Diameter Range: 43.5mm - 1638mm (1" - 40")
b. Rated Pressure Range:3.45- 34.5MPa
c. Max. Operating Temperature: 110ºC
It is glass fiber reinforced thermosetting resin pipeline manufactured by micro-controlled filament winding of expoxy resin and
high-strength glass fiber roving.
Production range:
1.Diameter:DN40-DN600
2.Pressure rating:3.45Mpa-34.5Mpa
Production standard: API 15HR-2001 /SY/T6267-2006 for high pressure fiberglass line pipe.
Range for Application:
1.Wastewater transmission or wastewater treatment pipeline;
2.High-pressure delivery line for petroleum, natual gas, saline water, CO2 and H2S 3.Connecting pipes for storage tanks and fire
hoses.
Uses and Applications
• Crudeoil transmission lines
• Gas transmission lines
• Oilfield re-injection lines
• Brine, saltwater and seawater lines
• Potable water transport lines
• Brackish water transport lines
• Wastewater and sewage systems
• Drainage lines
• General industrial service for mildly corrosive liquids
Performance
our fiberglass pipe laminate meets the requirement of API specification API 15LR and API 15HR. Pipe and fittings have a liner
thickness of 0.25mm. Pipe with no liner is available upon request. The pipe wall thickness established in this catalogue is based
on design temperature of 93°C. Contact for higher application temperatures.
Maximum operating Temperature: 93 °C SALES AND SERVICE NETWORK Agents Wanted We are seeking Agents or Distributors in the worldwide for API 15HR and API 15LR fiberglass pipe and tanks.
We are seeking fiberglass pipe and tanks distributors , agents, and representatives for our products in the world countries and
areas and would welcome your interest. Below we will briefly describe who we are, what we do, what we are looking for, and how we
prefer to operate.
1. Are you looking for a product distributor?
If your company is looking for a means to distribute your products in the EU, you will be able to find relevant commercial agents
and exclusive distributors/sole distributors by looking through our directory. In addition, we provide a means for you to
advertise your products to potential distributors. These services are provided free of charge. Sign up to find distributors Are
you looking for new product lines to sell?
2.Are you a distributor looking for new product lines for your business to carry?
We have a catalogue of products that could be of relevance to your business and market. In addition you have the possibility to
create a business profile targeting potential business partners. These services are provided free of charge. Successful Project Project in Finland Project in Saudi Arabia Project in Russia
FAQ 1.What is the difference between GRE and GRP pipes?
The main difference between the GRE and GRP is the resin used for bonding the glass fiber. GRP pipe used Isophthalic Resin whereas
GRE pipe used Epoxy Resin. Pipes are used for industrial application, as it can withstand higher temperature compare to GRP pipe.
2. What is the difference between GRP and FRP?
Fibreglass or GRP is a composite material made out of glass fibres and uses polyester, vinyl, or epoxy as the polymer. ... In anutshell, if the fibre of composite is glass, it is known as GRP( Glass reinforced plastic). Fibreglass(GRP) is one type of FRP.
3.What is difference between GRP and FRP?
Polymer matrix holds the fibres in their position and transfers the loads between the fibres. ... In a nutshell, if the fibre of
composite is glass, it is known as GRP( Glass reinforced plastic). Fibreglass(GRP) is one type of FRP.
4.What is difference between API SPEC 15HR and API SPEC 15LR ?
API SPEC 15HR is standard for High-pressure Fiberglass Line Pipe. API SPEC 15LR standard for low-pressure Fiberglass Line Pipe.
