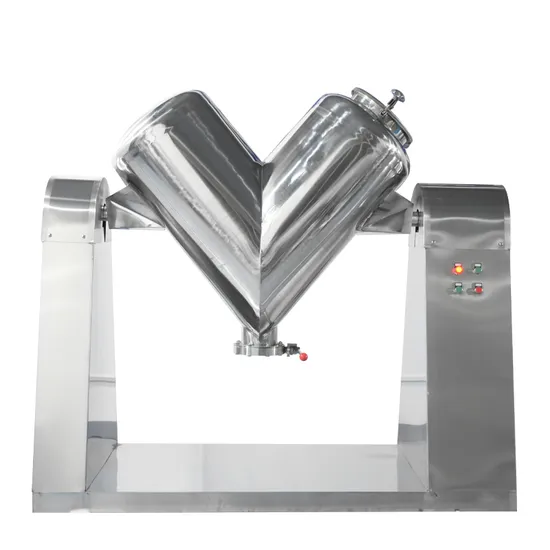

Stainless Steel V Shaped Asymmetrical Cylinder Mixer Vh300 Powder Mixing Machine

Product Description

Product Description
VH-50/100/200/300 Dry powder mixer 1. The external surface and material contact parts are made of 304 stainless steel. 2. Manual feeding and closed disc valve discharging structure can realize dust free operation. 3. V shape design, double arm , uniform mixing and high efficiency. 4. Support PLC customize needs 5. Mixing time setting device. SS 304 material / SS 316 optional
Stainless Steel material purchase we have inspection for each batch material with certifiaction. Core part of sealing and outlet Butterfly dump makes the close very nice and tight, and also easy to open and discharge the
powder. Product Parameters

Type	VH50	VH100	VH300	VH-1000
Barrel volume	50L	100L	200L	1000
Working volume	20L	40L	80L	400
Max.loading	25kg	50kg	100kg	500kh
Motor power	0.75kw	1.1KW	2.2kw	4
Hybrid speed	20 rpm	15 rpm	15 rpm	12
Overall Size	550*230*430 mm	1590*650*1460mm	1750*690*1600mm	2015*720*1735mm
Gross Weight	175 kg	250 kg	350 kg	500kg

Detailed Photos
Product packaging
Our Service Company Profile Shanghai Tianhe Machinery Equipment Company (SHTH) is a reliable manufacturer, specialized in making
machines and turn key project of tablets and capsules production for pharmaceutical, food and chemical
processing industries.
SHTH starts from year 2011 in Shanghai, after more than ten years contentious development and accumulations,
we now expand our professional R & D center, three production and processing bases, and extend more skilled
workers and salesman. We acquire advantages all aspects to keep our machines in the leading position, and we
take fully advantage of the internet conveniences to provide our customers top ranking after sales services .
We make tablet press, mixer, capsule filling, soft capsule maker, blister packing and stick packing machines,
counter, grinder, coating machine,tablet and capsule polishing machine, as well as herb pill making machine,
vacuum feeder, vacuum collector.
Above mentioned machines are strictly follow GMP standard and acquired CE certificates. Our patented
models are especially popular in both domestic and overseas markets, as they always be most practical and
easier to use type. Clients love to buy from us also because of our fast shipment, you can always get the package
safe and easy.
SHTH provide not only nice machines, but also practical and specific solutions that aiming to boost our
end users' business.
In short, with us your money is safe, and your business is growing.
We appreciate the chances to work with you!
Certifications
FAQ
1. How long is the machine warranty?
The whole machine has a one-year warranty and lifetime maintenance and aftersales services.
2. Is there a instructional video?
We provide insturction videos and we also support online video call instruction 7/24 service.
3 What shipping service do you offer?
We support fast and safe delivery services by DHL, Fedex, UPS, SF express
We also have DDP services to almost all the countries.
4. Do you support samples making before placing order?
We Support samples making, as long as you can manage sample materials to us, we try on our machine
and take videos or we support online video call for the sample making process.
5. Do you support OEM or ODM?
Yes, we are facotry, and we have a strong RD team , we support customization for machines, and we make
blueprint specific practical for your program.
