Manufacture CE Approved Sumore Machinery Equipment Drill Press Radial Drilling Machine Price

Product Description

Product Description

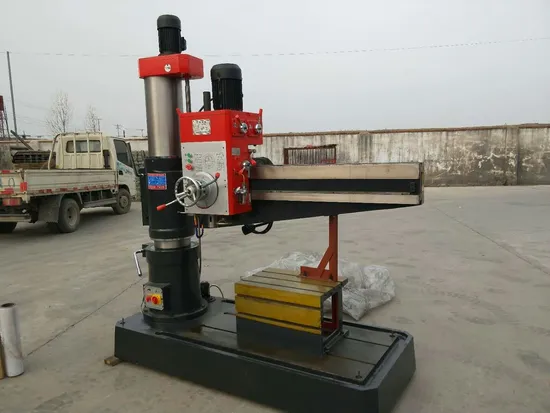

SP3127 Precision cheap radial drilling machine is one of our most economic and durable radial drilling machine. It is hydraulic radial drilling machine not mechanical radial drilling machine. And it is small in size and delicate in design. This radial drilling machine is made in China , but have the same quality with Japan radial drilling machine. The main features are as below:
Quick details
Max. drilling diameter:50mm
Spindle taper:MT5
Motor power:4KW

Machine FeatureRadial drilling machine SP3125 is provided with hydraulic presetting speed shift mechanism to save auxiliary time.
It only needs one handle to operate clockwise rotation, stop (brake), variable speed and neutral gear conveniently.
Spindle box, rocker arm, inner and outer posts are reliably clamped by hydraulic diamond clamping mechanism.
Perfect safety protector and outer post protection are available.
In design and production of structure, it further adopts a series of effective measures to prolong precision durability and lifespan of whole machine.
Its electrical equipment completely contributes to personal safety, reliability, long service life and convenient maintenance.
1.Optimum design conforming to international standard.
2.Key precisely machined parts precision machining
3.Great Flexible radical drilling machine with reliable and perfect feature
4.This radical drilling machine has High precision; high strength.
5. This radical drilling machine has Economical cutting and long life.
6. Drilling, counter boring, reaming, boring, spotting, tapping

Product Parameters

Model No.	SP3127
Max. drilling diameter:	50mm
Distance between spindle axis and column:	350--1600mm
Distance spindle nose and table surface	320--1220mm
Rocker arm lifting distance	580mm
Rocker arm lifting speed	0.02m/s
Spindle travel	315mm
Spindle taper	MT5
Range of spindle speeds	25--2000 r/min
Number of spindle speeds	16 steps
Range of spindle feeds	0.04-3.2 mm/r
Number of spindle speeds	16 steps
Th maximum torque of the spindle	500 N.M
Spindle maximum feed resistance	600*500mm
The spindle box of horizontal moving distance	1250mm
Spindle Motor power	4 KW
Hydraulic clamping motor power	0.75kw
Cooling motor power	0.09kw
Arm lift motor power	1.5KW
Movement motor power	0.55kw
machine weight	3500kg
Overall dimension	2500x1070x2840mm

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs ,UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
