Factory Price Factory Price Tck400 Inclined Bed CNC Lathe Mini Metal CNC Slant Bed Turning Lathe Machine for Metal

Product Description

TCK400 Inclined Bed Cnc Lathe Mini Metal Cnc Slant Bed Turning Lathe Machine For Metal

Product Description
The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece,and could also turn various threads,cricle arc,cricular cone,inside and outside surface of revolved body.This machine is widely used in sanitary,valve,electrical appliance,instrument,automobile ,motorcyle,bearings and so on.
Product Parameters

Type	Unit	TCK400
Max.swing diameter	mm	∅400
Swing over cross slide	mm	∅120
Max.turning length	mm	400
Max.bar through-hole	mm	∅40
Work piece claping method	N/A	spring collet
Spindie speed range	Rpm	100-3000(Plain spindle unit)
		100-4000(Precision spindle unit)
Spindie nose size	N/A	A2-5
X-axis rapid traverse	m/min	24m(3210)
Z-axis rapid traverse	m/min	24m(3210)
X-axis travel	mm	800
Z-axis travel	mm	420
X/Z axis repeating potiong accuracy	mm	0.003
Toolholder trpe	N/A	Gang knife
Tool size	MM	20
Number of tools	pcs	9(Can hold 63 knives tower)
Overall size(L*W*H)	mm	2100*1450*1850
The bed bottom spindiec enterh eight	mm	990
Net weight	kg	About 1500

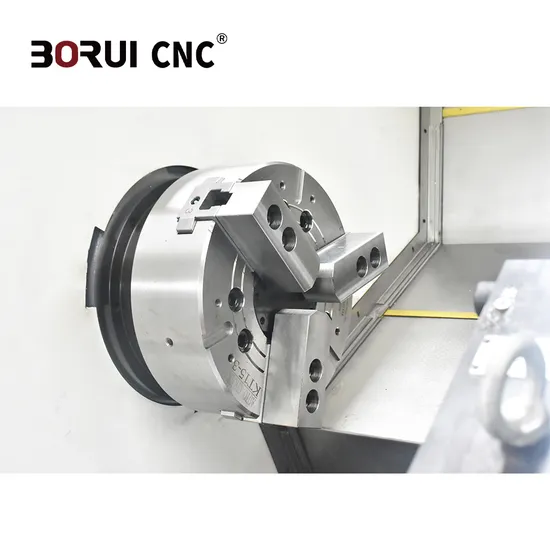

Details Display

Packaging & Shipping
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
