Multi-Channel Long Range Water Flow Level Finder Locator Pipeline Resistivity Meter Geophysics Terrameter Underground Water Detector

Product Description

Product Description Introduction of Water Finder Deep Underground Water Detector
1. Fast and efficient
Aprofile measuring about 10,000 meters can be completed in one day to understand geological anomalies of different depths. Compared with the traditional artificial electric field instrument, the survey efficiency and speed are increased by several dozen times.
2. Easy to carry
Utilizing the earth's natural electromagnetic field as a signal source, no bulky manual power supply is required for the source part, and the whole weight is no more than 2 kg. It is easy to carry and use.zmwm21
3. Easy to use
The instrument is fully controlled by a high-speed CPU and learns instrument operation in 10 minutes.
4. Accuracy, high accuracy
Using high-performance amplifiers and high-performanceAD converters,FFT digital filtering technology. The resolution is up to 0.0001μV and the accuracy is ±1%.
5. Strong anti-interference ability
Advanced anti-jamming technology, multiple anti-jamming design, after the instrument's frequency selection and digital processing, even in the city, electrical interference or other external interference work area, it can detect very good repetitive abnormal curve.
6. Instrument automation
Fully digital fully automatic instrument, completely eliminates human error in readings.According to different geological environment,automatic intelligent adjustment.Can measure multiple frequencies of data.All operation procedures of the instrument touch the screen prompts, the operation is simple and clear.
The data is automatically stored and these books are not lost even if they are turned off.
Using the liquid crystal image display, you can display acquired data and curves, and automatically generate profile images.
Supports data copying, supports multi-stream upgrades, multi-language support for on-site data analysis.
Product Parameters Specification of Water Finder Deep Underground Water Detector

Model No.	Depth	Accuracy	Channel	Frequency	LCD	PS	Other
PQWT-W100	100 meter	0.1mv	2	Single,Triple, Multiple	800*480 Touch Screen	DC 12V 2300mAh Built-in Battery	Automatic noise reduction,super anti-jamming. User-friendly interactive interface,high-speed CPU control,the menu prompts. Automatic measurement ,storage of data,drawing curves.The data will be saved automatically after the shutdown. It can store999/30 single band,tri-band and multi-frequency measurement data. The data could be imported into computer directly for Charting. Using rechargeable batteries Electrode detection,power monitoring function.
PQWT-S150	150 meter	0.1mv	3	Triple, Multiple	320*420	DC 12V 4500mAh Built-in Battery
PQWT-W200	200 meter	0.1mv	4	Single,Triple, Multiple	800*480 Touch Screen	DC 12V 2300mAh Built-in Battery
PQWT-S400	300 meter	0.01mv	6	Triple, Multiple	320*420	DC 12V 2300mAh Built-in Battery
PQWT-S500	500 meter	0.001mv	7	Triple, Multiple	320*420	DC 12V 2300mAh Built-in Battery
PQWT-S700	600meter	0.1mv	8	Single,Triple, Multiple	800*480 Touch Screen	DC 12V 36900mAh Built-in Battery
PQWT-S900	1200 meter	0.001mv	8	Single,Triple, Multiple	800*480 Touch Screen	DC 12V 3600mAh Built-in Battery

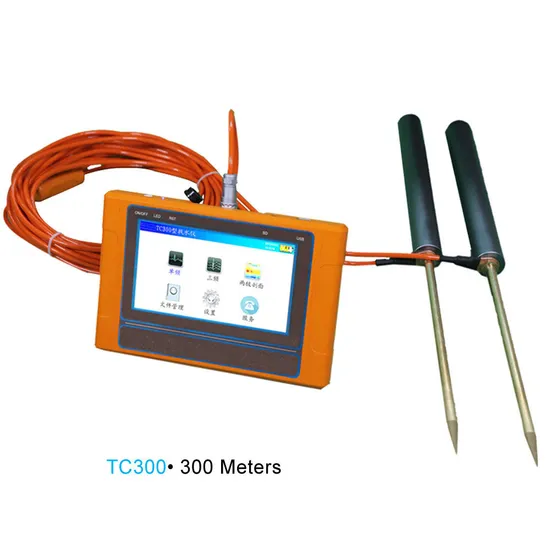

Detailed Photos Pictures of Water Finder Deep Underground Water Detector
