Hot Sale Single Energy Meter Phase Three Phase Power Power Quality Meter

Product Description

Product Parameters

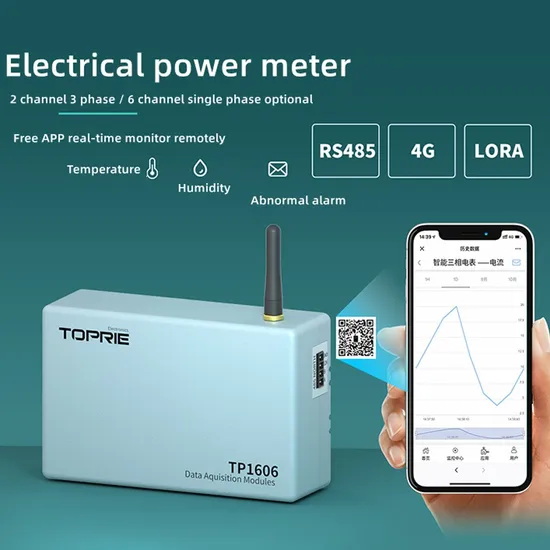

Name	TP1606 Single phase/three phase power quality meter
Power supply	8V~12V (wiring terminal)
Power consumption	<110mA
Numbers of channel	2 channel 3 phase 4 wire system / 6 channel single phase (optional)
Current transformer	2500:1
Voltage range	AC 10V~480V
Voltage accuracy	RMS measurement, level 0.5
Current range	≥0.03A
Current accuracy	RMS measurement level 0.5
Linear frequency range	45Hz~75Hz, Accuracy:0.01Hz
Power factor range	-1~1, Accuracy level:0.5
Power measurement	Active/reactive/apparent power, Accuracy:level 0.5, reactive power, accuracy: level 2
Power energy measurement	Active power energy, Accuracy level:0.5
Communication interface / parameter	RS485 115200bps 8,N,1
Temperature and humidity measurement range	Temperature: -20~85ºC Humidity:0~100%RH
Communication distance	Farthest 1.2KM
Communication protocol	MODBUS RTU
Device address range	1~255
Shell material	ABS+fireproof
Shell dimension	119*81*40.5mm
Weight	200g
Installing method	Wall-mounted or Din rail
Working environment	Temperature : -20ºC~70ºC Humidity:0~95% RH (No condensation)
Storage environment	Temperature : -25ºC~85ºC Humidity:0~90% RH (No condensation)

Product Description
Company Profile Shenzhen Toprie Electronics Co., Ltd is a high technology enterprise engaged in manufacturing of environmental monitoring and data acquisition field.
Established in 2009, which is covering an area of over 3000 square meters, has 6 work lines and many staffs who have good research, design for techniques, quality controlling and production.
Business Scope: data logger, humidity & temperature logger/sensor, gas detector, pressure sensor, water level meter, liquid level transmitter, data acquisition moduel, IoT gateway, thermal imaging camera, power& energy meter/power quality analyzer etc.
And we have the advanced examine equipment, product technique and the perfect quality protect system. Beside our brand name products, we also have more than 15 years' ODM and OEM order experience and can accord the clients demands or requirements to personalized own brand.
Sincerity and Down-to-earth working approach' to provide clients with excellent service of processing! We sincerely welcome you to visit our company or contact us for cooperation!
Warmly welcome you and opening up the boundaries of communication. We synchronize with your ideal partner!
FAQ Q: Are you a factory/manufacturer?
A: Yes, We are professional factory/manufacturer of data logger, humidity & temperature logger/sensor, gas detector, pressure sensor, water level meter, liquid level transmitter, data acquisition moduel, IoT gateway, thermal imaging camera, power& energy meter/power quality analyzer etc.
Q: Can I customized my logo and different communication methods?
A: Yes,For customized logo that will be okay,but there is a small MOQ. For communication methods: GPRS, 4G, WIFI, LORA, LORAWAN etc. Please keep us informed in advance.
Q: How long is your lead time? If I want to customize instruments, how long will it take?
A: Usually, we can ship out within 3-5 days after receiving your payment. The customize device is depends on your order quantity.
Q: What payment method do you accept?
A: We accept payment method of T/T (bank transfer), Western Union, PayPal and so on.
Q: What package do you use for your products? What shipping method do you use?
A: 1. We use standard carton box for packing.
2. We ship via express courier (door to door service), by air, and by sea according to customers' requirements.
Q: How is your company's product after-sales service system?
A: The product warranty period is 12 months, we can provide lifetime maintenance. And we have professional pre-sales and after-sales engineer teams one-to-one after-sales servicethat can respond to you within 24 hours to resolve technical issues.
For more questions, please feel free to send inquiries to us.
