R88M-G40030L-BS2 OMRON Industrial With Brake Speed Controller

Product Details

Product Description

Product Description
Brand:Model:Origin:Voltage:Power:Frequency:High Light:

OMRON	R88M-G40030L-BS2
China	100V
400W	3000rpm
ac servo motor,electric servo motor

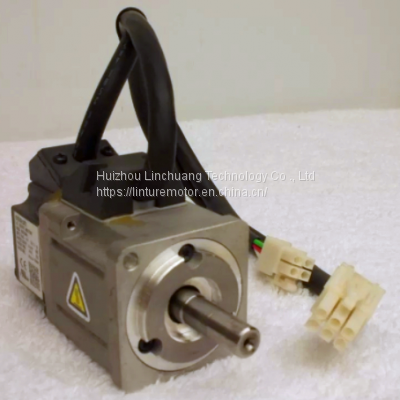

OMRON AC Servomotor , With INC Encoder R88M-G40030L-BS2 400W , 100 VAC , With Key / With Brake , 3000rpm
3,000-r/min Cylindrical Servomotors100-VAC Input Power
Model (R88M-)G05030HG10030LG20030LG40030LItemUnitG05030TG10030SG20030SG40030SRated output *1WRated torque *1N·mRated rotation speedr/minMax. momentary rotation speedr/minMax. momentary torque *1NmRated current *1A (rms)Max. momentary current *1A (rms)Rotor inertiakg·m2
(GD2/4)Applicable load inertia---Torque constant *1N·m/APower rate *1kW/sMechanical time constantmsElectrical time constantmsAllowable radial load *3NAllowable thrust load *3NWeightWithout brakekgWith brakekgRadiation shield dimensions (material)Applicable Servo Drives (R88D-)Brake
specifi-
cationsBrake inertiakg·m2
(GD2/4)Excitation voltage *4VPower consumption
(at 20 °C)WCurrent consumption
(at 20 °C)AStatic friction torqueN·mAttraction time *5msRelease time *5msBacklash
Allowable work per
brakingJAllowable total workJAllowable angular
accelerationrad/s2Brake life---Rating---Insulation grade---

50	100	200	400
0.16	0.32	0.64	1.3
3000
5000
0.45	0.93	1.78	3.6
1.1	1.7	2.5	4.6
3.4	5.1	7.6	13.9
2.5 × 10-6	5.1 × 10-6	1.4 × 10-5	2.6 × 10-5
30 times the rotor inertia max. *2
0.14	0.19	0.26	0.28
10.4	20.1	30.3	62.5
1.56	1.11	0.72	0.55
0.7	0.8	2.5	2.9
68	68	245	245
58	58	98	98
Approx. 0.3	Approx. 0.5	Approx. 0.8	Approx. 1.2
Approx. 0.5	Approx. 0.7	Approx. 1.3	Approx. 1.7
100 × 80 × t10 (AI)		130 × 120 × t12 (AI)
GTA5L	GT01L	GT02L	GT04L
2 × 10-7	2 × 10-7	1.8 × 10-6	1.8 × 10-6
24 VDC ± 5%
7	7	9	9
0.3	0.3	0.36	0.36
0.29 min.	0.29 min.	1.27 min.	1.27 min.
35 max.	35 max.	50 max.	50 max.
20 max.	20 max.	15 max.	15 max.
± 1 °
39.2	39.2	137	137
4.9 × 103	4.9 × 103	44.1 × 103	44.1 × 103
30,000 max. (Speed of 2,800 r/min or more must not be changed in less than 10 ms)
10,000,000 operations min.
Continuous
Type F
