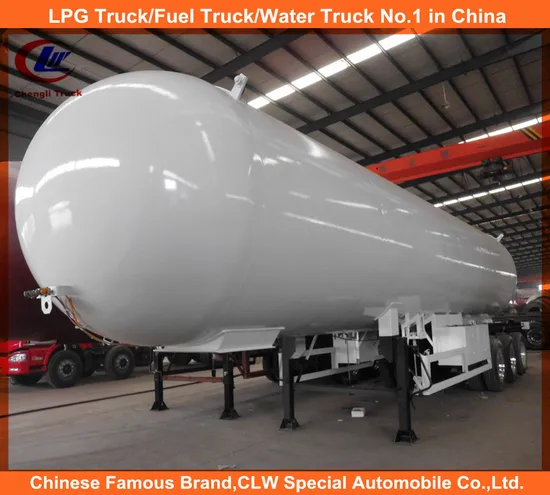

60m3 Cooking Gas Tank Semi-Trailer for 30ton LPG Delivery Tank

Product Description

About our company
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Lpg tanker trailer brief Introduction
Cheng Li produced a liquefied gas storage tanks in series, can be used to store the different nature of the liquefied petroleum gas (propane), propylene, ammonia, dimethyl ether, methanol, butadiene, butane, ethylene oxide, methylamine, etc. In low pressure liquefied gases at room temperature; Volume from 10 cubic meters --- 100 cubic optional.
Chengli pressure components of the productIion materials, size and weld quality, operation quality, installation quality, safety valves and shut off valves devices and accessories within the strict qualification, inspection, test. The tank materials on physical and chemical tests such as: Mechanical properties and chemical composition.
The tank welded joints, welding line, tank head, the pressure of the geometric location of each component through rigorous X-ray non-destructive testing and magnetic particle testing inspection.
Seal on the product, pressure, and those who can affect the operation of product safety testing various technical indicators.
A, B Class 100% ray weld inspection, II level qualified
C, D Class welds 100% magnetic particle inspection, I level qualified

Item			Unit	Parameter
Product				doble-bridge LPG Pressure Vessel Semi-trailer(CLW9310GYQ)
Capacity			M 3	40.5
The total mass			kg	30910
Work in mass				13920
Rated contained mass				166990
Vehicle Demension			mm	11324×2500×3730
Axles				2
Wheelbase				6800+1320
Track base	front			-
	rear			1320
Front hanging/Rear hanging			mm	-/1500
Number of leaf spring piece (front / rear)				-8/8
Semi-trailer saddle maximum permissible load mass			kg	16000
Tire Size				11.00-20
configuration		Vessel material	Q345R,16MnIII
		Standard configuration	12-ton BPW shaft, valve cover, single-fluid two-valve boxes, legs, traction pins, liquid level gauge, pressure gauge, thermometer, emergency shut-off valve, fire extinguishers, fire star cover, anti-static grounding tape, fence, tire fenders
		Others	Storage for: LPG (propane);
			design pressure 1.77Mpa;
			design temperature 50 °C;
			filling density: 0.43T/M 3 ;
			corrosion margin: 1mm;
			tank dimension: 11058* 2332mm
		Industry Protocol	GB150-1998 "Steel Pressure Vessels," Pressure Vessel Safety technical monitoring procedures, LPG safety inspection procedure

Factory
Mr John Su
Sales Director
Chengli Special Automobile Co., Ltd
Factory: Chengli Automobile Industry Park,Suizhou, Hubei, China
Office: Block 2,Fengzeyuan Villa,Dongxihu District,Wuhan, China
Tel&Fax: +86-27-83796298
