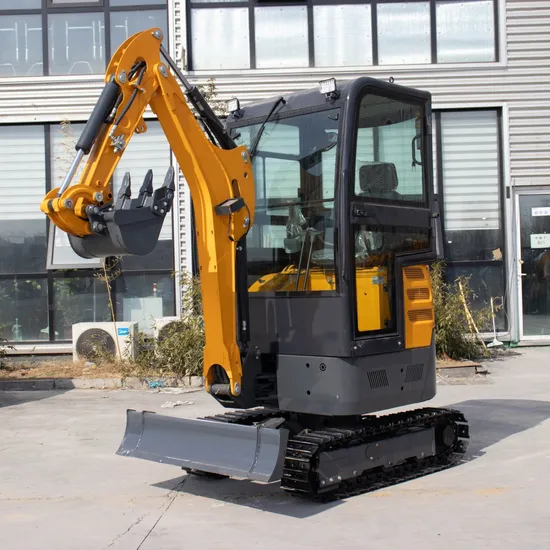

2200kg Cab Boom Swing Small Hydraulic Excavator
Basic Info.
Model NO.
HT-22 cab
Type
Crawler Excavator
Usage
Household Agricultural Mini Excavator
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
0.1m³
Size
Large-Scale
Certification
CE, ISO9001: 2000
Condition
New
Moving Type
Crawler Excavator
Operating Weight
2.5 Ton
Rated Speed
3.5km/H
Core Components
Engine
Power
22.1kw
Unique Selling Point
Low Fuel Consumption
Overall Dimension( Lxwxh)
4170mm*1300mm*2280mm
Maximum Digging Height
3700mm
Maximum Digging Depth
2450mm
Max Digging Radius
4370mm
Transport Package
Wooden Packing
Specification
4170mm*1300mm*2280mm
Trademark
HIGHTOP
Origin
Shandong, China
HS Code
8429521200
Production Capacity
10000pieces/Year
Product Description
2200KG Mini bagger HT22 crawler excavator for sale With Good ServiceFeatures:
#High flow,double hydraulic return tubing
#LED Lighting
#Many machine shell convenient to disassemble, more convenient for each customers to repair.
#The machine maintenance manual is comes with the machine
#Direct factory
#OEM customized
#Professional shipping forwarder,on time and safety delivery
#Retractable track
#Swing boom
| ENGINE | |
| Emission Standard | Tier 3/ Stage III |
| Make /Model | LAIDONG/3TE30 |
| Power /Rotation speed | 22.1kw(30HP)@2300rpm |
| Number of cylinder | 3 |
| TRACK SYSTEM | |
| Maximum Travel speed | 3.5km/h |
| Width of track shoe(Rubber &steel track) | 230mm |
| Number of track shoe per side(steel track only) | 38pcs |
| Number of upper roller per side | 0 |
| Number of bottom roller per side | 4 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.1m³ |
| Swing speed | 12rpm |
| Maximum Grade ability | 30° |
| Maximum Bucket digging force | 15.3KN |
| Maximum Arm digging force | 10.5KN |
| Hydraulic system pressure | 18Mpa |
| Machine weight | 2200kg |
| Boom length | 1850mm |
| Arm length | 1000mm |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 4170mm*1300mm*2280mm |
| Axle base(Track length on ground) | 1230mm |
| Track gauge | 1070mm |
| Minimum Ground clearance | 230mm |
| Swing radius at tail | 1180mm |
| WORKING RANGE | |
| Maximum Digging height | 3700mm |
| Maximum Dumping height | 2290mm |
| Maximum Digging depth | 2450mm |
| Maximum Vertical digging depth | 2160mm |
| Maximum Digging radius | 4370mm |
| Minimum swing radius | 2020mm |
| Maximum Lifting height of blade | 240mm |
| Maximum Cutting depth of blade | 310mm |
| Boom swing angle(Left/Right) | 70°/50° |
