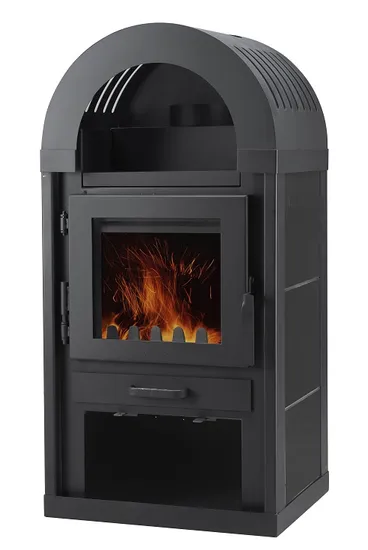

Classic Indoor Used Wood Burning Stove with Secondary Air Inlet China Supplier

Product Description

Product Name	WOOD BURNING STOVE
Item No.	CL-06
Normal thermal output	6kw (20500BTU)
Thermal efficiency	71%
CO(@13%O2)	AVG4600ppm
Stove Material	Stainless Steel, Siliceous Refractory Brick
Heigh*Width*Depth	1065mm*546mm*412mm
Net weight	128KGS
Draft Type	Tertiary Air Inlet,Tertiary Burning
Flue Pipe Material	Carbon Steel
Room heating capacity	48-124 m³
Color	Black
Stove Feature	Ceramic Glass & High Temp Paint
Flue pipe outlet diameter	φ150mm	Wood dimension	φ60×320mm
Flue gas temperature (max)	368ºC	Flue gas mass flow	6.2g/s

Frequently Asked Questions
1 Do stoves require a chimney? All of our multi fuel and wood burning stoves require a suitable chimney or professionally installed flue system.
2 How do I clean the chimney? You will require a chimney sweep to clean the chimney. It is essential to provide a dedicated chimney cleaning access door when installing the flue of the stove in some situations. In other situations the chimney can be swept through the firebox.
3 Who should install my stove? Our Stoves want you to enjoy the maximum performance from your appliance. To ensure this, it is essential that they are installed correctly. We strongly recommend that your stove is installed by a suitably qualified installer .

5 What warranty do I get? Our Stoves will replace, free of charge, any working part that fails (under normal operating conditions) within 12 months of purchase. Consumables such as glass, firebox lining boards or stove rope and adhesives are not guaranteed.
6 Where can I get spare parts? Your local Stove retailer will be pleased to supply spare parts and to provide any other information you require.
7 Can the doors be left open while burning? For safety and heat efficiency the doors should remain closed.

8 Why is the stove smoking when lit? A flue with back draught problems is almost certainly the cause of a smoking stove. Also check adequate ventilation is present. A qualified fitter should complete both a smoke pressure and flow test prior to fitting the stove to ascertain the integrity of the flue.

9 Why should I "Run in" my stove? To begin, light a series of small fires over a period of a few days to allow the paint finish to cure. The stove is finished with a highly heat resistant paint. The finish can be renovated with stove paint available from your local stove retailer. If the stove is not "run in" correctly, this may cause the paint to discolour and flake.

10 What is Over Firing? Your stove should never be used in a manner to cause over firing. Over firing can be caused by over loading the stove with fuel, and with primary controls open. If any part of stove glows "red" your stove is over firing and your draught control should be adjusted to restrict airflow to stove. Over firing can cause permanent damage to the appliance, which is not covered by warranty.
