Manufacturer and Design Price Sleeve Kiln Pulverized Coal Injection Vertical Lime Kiln Shaft Lime Kiln Rotary Kiln

Product Description

Product Description

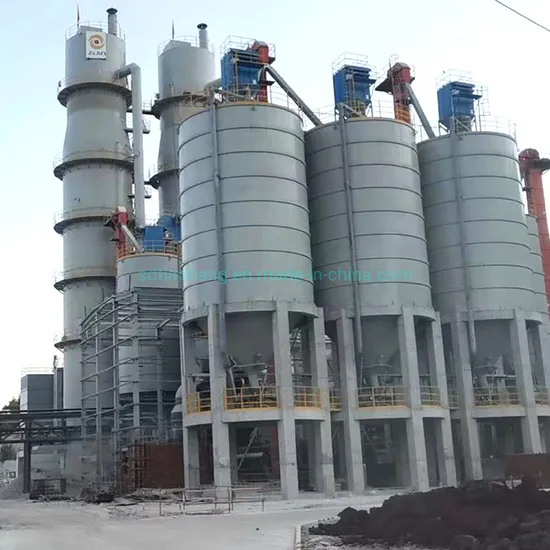

Lime vertical kiln, just like its name, the shape is erect. It is used for calcination limestone. Due to has low energy consumption, less cover area, less investment, wide applicability fuel, and more advantages, it was widely used in metallurgy, construction materials, calcium carbide, Nanometer calcium carbonate, aerated concrete, sugaring, etc. The vertical kiln was manufactured by Shandong Tianhang Machinery Equipment CO.,LTD with modern new technology, which is an environment protection, save energy, higher machanization and automaticity, quite modern lime kiln. Because it adopts the modern technology, make full use the cheap energy, especially pollution of gas for environment harmful( such as conventer gas, blast furnace gas, calcium carbide furnace tail gas) as the energy, turn waste into wealth. Thus will protect the environment, and produce the high quality lime with lowest cost. To use this new technology enterprise, economic benefits have increased significantly.
Product Parameters

echnical Parameters Of Vertical Klin (Mixed Fuel)
Capacity(t/d)	Effective Volume	Effective Height	Effective Section	Limestone Size	Heat Consumption	CaO	Activity
	(m3)	(m)	Dia.(m)	(mm)	(kJ/kg)	(%)	(mL)
100	98	20	Ø2.5	30~60/40~80	<4600	>90	>300
120	141	20	Ø3.0	30~60/40~80	<4600	>90	>300
150	202	21	Ø3.5	30~60/40~80	<4500	>90	>300
200	301	24	Ø4.0	30~60/40~80	<4500	>90	>300
300	397	25	Ø4.5	30~60/40~80	<4400	>90	>300
400	491	25	Ø5.0	30~60/40~80	<4200	>90	>300
500	735	26	Ø6.0	30~60/40~80	<4200	>90	>300
Remarks: All above data are for reference only.
Technical Parameters Of Vertical Lime Kiln (Fuel: Gas)
Capacity(t/d)	Effective Volume	Effective Height	Effective Section	Limestone Size	Heat Consumption	CaO	Activity
	(m3)	(m)	Dia. or L×W(m)	(mm)	(kJ/kg)	(%)	(mL)
50	70	20	Ø2.0	30~60/40~80	<4600	>90	>300
70	80	20	Ø2.5	30~60/40~80	<4600	>90	>300
80	100	20	Ø2.5	30~60/40~80	<4500	>90	>300
100	120	20	Ø2.7	30~60/40~80	<4500	>90	>300
120	140	20	Ø3.0	30~60/40~80	<4400	>90	>300
130	150	21	Ø3.0	30~60/40~80	<4200	>90	>300
150	200	20	2.5×4.5	30~60/40~80	<4200	>90	>300
Remarks: Above data are for reference only, and suitable for Vertical Kiln which use low heat fuel. Utilization coefficient of Vertical Kiln which use high heat fuel is higher.

Packaging & Shipping
We have developed long and good relationship with many shipping agents. Ocean freight partners are: APL, COSCO, OOCL, CSCL, MSC, etc. and train shipping is also available. The perfect shipping way and best service with lowest price are always provided for customers.
Company Profile
Shandong Tianhang Machinery Equipment CO.,LTD is a new high-tech private enterprise attached to Shandong Tianhang Group. It has more than 150 employees, including 52 engineering technicians,34 with Intermediate Certificate. Covering an area of more than 22,000 square meters, the company is composed of machining, riveting welding, assembly and other workshops. With 110 sets of advanced equipment, advanced processing equipment, large processing range, high precision products. Since the establishment of the enterprise, the implementation of high starting point, high quality strategy, in China, we have finished equipment intelligent transformation and technical optimization to kind of complete project fromφ3200 toφ5300 vertical lime kiln ,its performance reliable, quality reliable, operation simple. With its advantages of advanced technology, reliable quality, considerate service and favorable price, Tianhang has become a lime kiln equipment manufacturing base, and products are sold all over the world and widely praised.
Our company has many projects at home and abroad, such as Serbia Zijin Boer Copper Co.,Ltd,Pakistan Olympia Chemicals Co.,LTD,and now we are working on a 300 ton/day lime kiln project of Kyrgyzstan South Building Materials Co., LTD.We have the strength and confidence to provide quality kilns for lime cement clinker and calcium hydroxide manufacturers all over the world.
Our Product

Certifications

Our Advantages
1.Save energy2.The shell of kiln use four layer refractory in vertical masonry, good effect of thermal insulation.
3. Long service life of refractory
4. Less cover area
Our service:Training & Service
Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment,
according to your special demand.
Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators
and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Welcome to visit our company and workshop, we sincerely look forward to cooperating with
you. We will provide you with the most suitable products with the reasonable price.
FAQ
1.Why us?We provide professional industrial furnace and industrial design as customer order. 2.How is the quality of your products?Our products are manufactured strictly according to national and international standard, and we take a test on every product before delivery.3.Guaranteed?If products' quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.4.How about price?Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that " for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity".
