Paper/ Wood/ Plastic Machine Single Shaft Shredder (BH1500)

Product Description

Product Description

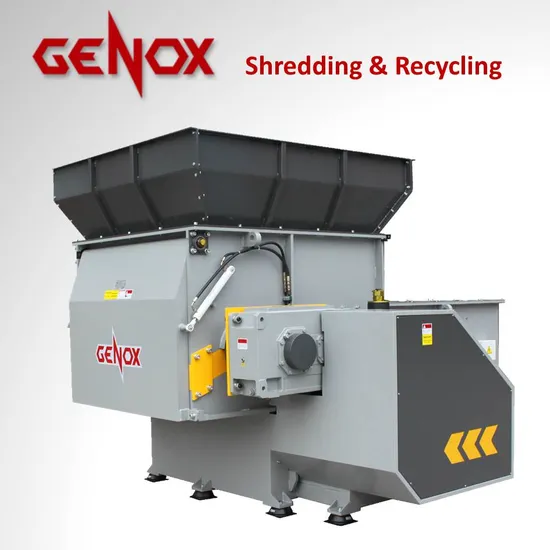

GENOX Single Shaft Shredders
BEHEMOTH Series Single Shaft Shredders are heavy duty size reduction machines suitable for processing a wide range of materials. These shredders are ideal for especially hard and voluminous products. The large shredding chamber and loading hopper capacity, combined with the PLC controlled horizontal RAM pusher ensures
optimum feeding of material to the rotor therefore achieving the most efficient performance. Throughputs typically range between1, 500kg/hr 12, 000kg/hr+ depending on the model, material type and application as below:
· Plastics Mouldings, Purgings/Lump, Profiles, Films etc.
· Timber/Wood Pallets, Joiners Waste, Green Waste etc.
· Paper & Cardboard Confidential Documents, Production Waste, Packaging Materials etc.
· Copper Cable Household, Telecoms and Industrial Cables including S. W. A
· Aluminum Used Beverage Cans (UBC's), Swarf, Cables etc.
· Textiles Carpet (Rolls & Tiles), Garments etc.
· Security Destruction Counterfeit Items, Faulty Goods, Out of Date Stock etc.
· Foam Production Waste etc.
· Mixed Household & Commercial Waste RDF/SRF Production
Specification

Model series	BH1500	BH2000
Feed opening (LXW)(mm)	1500X1675	2000X1675
Ram(mm)	760	760
Rotor diameter(mm)	480	480
Speed(r/min)	80	80
Screen (mm)	40-100	40-100
Rotor knives (pcs)	84	95
Counter knives (pcs)	6	8
Motor power (kw)	90	55+55
Hydraulic power (kw)	11	11
Weight (kg)	Approx 10200	Approx 13800
Dimension (LXWXH)(mm)	3630X2870X2630	3630X4260X2630

Standard Features

· Energy Efficient + Maximum Cutting Force & Productivity
· Shock Absorbing Gearbox reduces Stress on Drive Components
· Rotor Knives can be rotated and used on several edges before replacement.
· Long Life Counter Knives can be adjusted to maintain cutter clearance
· Quick Change Screens for accurate particle size control
· Segmented Shredding Chamber Floor with Brass Guides & PU Slides
· Twin Speed Hydraulics with integrated air cooler
· Stand Alone Electrical Control Panel with Siemens PLC Control System
· Tested, Approved and Certified to the applicable CE safety standards
Detailed Photos
Company Profile
FAQ
1.Question:Will we provide pre-sale services ?
Answer:Genox consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
2.Question:Is our after-sales service excellent ?
Answer:Genox's skilled technicians are available to assist with onsite installation,commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a Genox technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
Genox holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Customers are encouraged to hold their own critical spare parts such as granulator blades and screens to ensure optimal machine condition and performance.

3.Question:Will we provide technical support ?
Answer:Genox provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.
