Mini Metal Desktop CNC Milling Machine Vertical (BL-Y25)
| US$15,000.00-18,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BL-Y25
Type
Worktable Milling Machine
Object
Hardware
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Precision
Normal Precision
Certification
CE
Condition
New
Table Size
700*260mm
Spindle Motor
2.2/3.7kw
Spindle Speed
6000rpm
X/Y/Z Axes Travel
400/250/280mm
Spindle Type
Bt40
Machine Size
1510*1200*2010mm
Weight
1300/1500kg
Transport Package
Wooden Case
Specification
700*260mm
Trademark
BLIN
Origin
China
HS Code
8459619000
Production Capacity
480 Units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description

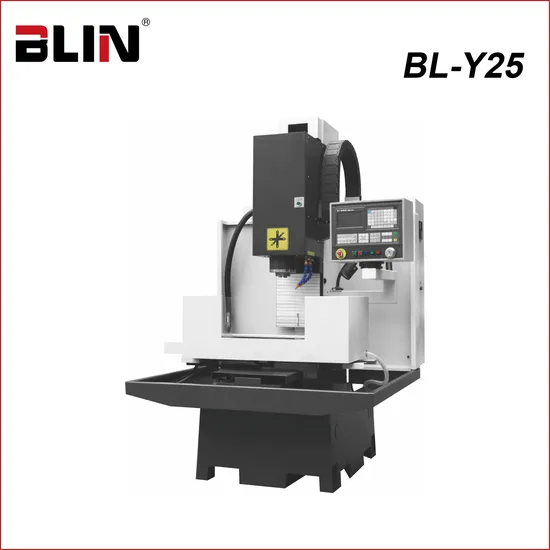

Mini metal desktop cnc milling machine vertical (BL-Y25)
- Adopt mature conventional CNC milling machine structure, good stability
- SWALLOW-TAIL shape HARD guideway
- Without tool magazine
Details:
| Item | Specification | Unit | BL-Y25 |
| Worktable | Table size | mm | 700×260 |
| T slot(NO./width/gap) | mm | 3/14/63 | |
| X/Y/Z axes | X/Y/Z axes travel | mm | 400/250/280 |
| X/Y/Z axes ball screw(dia./pitch) | mm | 32/6 | |
| Cutting feeding speed | m/min | 6~10 | |
| Rapid moving speed | m/min | 15 | |
| Positioning precision | mm | ±0.01 | |
| Repeatable positioning precision | mm | ±0.008 | |
| Spindle | Max. distance from spindle nose to worktable surface | mm | 380 |
| Distance from spindle center to column surface | mm | 250 | |
| Spindle type | / | BT40 | |
| Spindle motor | kw | 2.2(inverter) | |
| Spindle speed | rpm | 6000 | |
| Tool magazine | Tool magazine type | / | N/A |
| Others | Overall size(Half closed cover) | mm | 1510×1200×2010 |
| Overall size(Full closed cover) | 1760×1840×2010 | ||
| N.W.(Half/Full closed cover) | kg | 1300/1500 |
Main parts list:
| Item | Brand |
| Ball screw bearing | CHINA top-HRB P4 class/Z axes NSK |
| Ball screw | CHINA top |
| Dishing spring | GERMANY |
| Spindle unit | TAIWAN |
| Inveter | TAIWAN TECO/JAPAN YASKAWA |
| Booster cylinder | TAIWAN |
| Pneumatic parts | TAIWAN-AIRTAC |
| Electricity parts | FRANCE-SCHNEIDER |
| Lubrication pump | Joint-venture |
Standard configuration:
-SIEMENS 808D ADVANCED CNC controller
-Half closed cover
Optional configuration:
-GSK980MDc CNC Controller
-Step feeding motor
-Full closed cover
-4th axes
