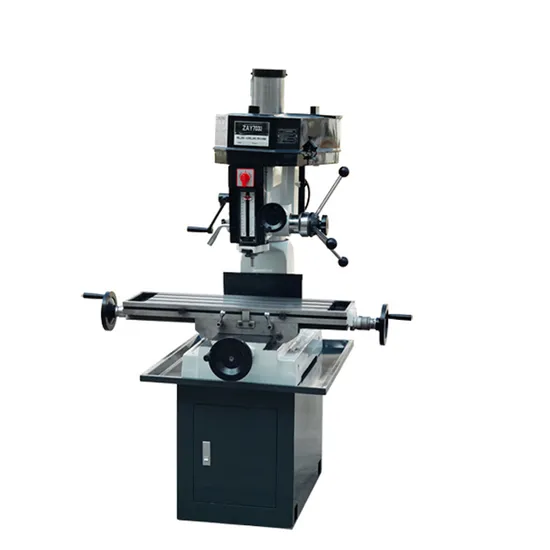

High Quality Metal Mini Bench Drilling and Milling Machine Zay7020
| US$700.00-2,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZAY7020
Type
Worktable Milling Machine
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Program Control
Automatic Grade
Automatic
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Layout
Vertical
Number of Shaft
3
Hole Diameter
<50mm
Drill Capacity
20mm
Taper
Mt3
Motor
0.55kw
Spindle Travel
85mm
Ace Milling Capacity
63mm
Transport Package
Plywood Case
Specification
125kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84595900
Production Capacity
10 PCS/Month
Product Description
THE MAIN PERFORMANCE CHARACTERISTICS:
driven and round column
Milling, drilling, tapping. Boring and reaming
Headstock swivels 360 horizontally
Micro feed precision
12 steps speed
Adjustable gibs on table precision
Posive spindle lock
Strong rigidity, powerful cutting and precisely positioning
PRODUCT MAIN TECHNICAL PARAMETERS:
| MODEL | ZAY7020 | ZAY7032 | ZAY7040 | ZAY7045 | |
| Drilling capacity | 20mm | 32mm | 40mm | 45mm | |
| Face milling capacity | 63mm | 63mm | 80mm | 80mm | |
| End milling capacity | 20mm | 20mm | 32mm | 32mm | |
| Distance from spindle nose to table | 435mm | 450mm | 450mm | 450mm | |
| Min.distance from spindle axis to column | 181.5mm | 203.5mm | 203.5mm | 203.5mm | |
| Spindle travel | 85mm | 130mm | 130mm | 130mm | |
| Spindle taper | M.T.3 or R8 | M.T.3 or R8 | M.T.4 or R8 | M.T.4 or R8 | |
| Step of spindle speed | 12 | 12 | 12 | 12 | |
| Range of spindle speed | 50Hz | 100-2200 r.p.m | 80-2080 r.p.m | 80-2080 r.p.m | 80-2080 r.p.m |
| 60Hz | 120-2640 r.p.m | 100-2500 r.p.m | 100-2500 r.p.m | 100-2500 r.p.m | |
| Swivel angle of headstock (horizontally) | 360° | 360° | 360° | 360° | |
| Table size | 520×160mm | 800×240mm | 800×240mm | 800×240mm | |
| Forward and backward travel of table | 140mm | 175mm | 175mm | 175mm | |
| Left and right travel of table | 290mm | 500mm | 500mm | 500mm | |
| Motor Power | 0.55KW | 0.75KW | 1.1KW | 1.5KW | |
| Net weight/gross weight | 130kg/190kg | 280kg/330kg | 283kg/333kg | 285kg/335kg | |
| Packing size | 620×750×1000 mm | 1020×820×1160 mm | 1020×820×1160 mm | 1020×820×1160 mm | |
